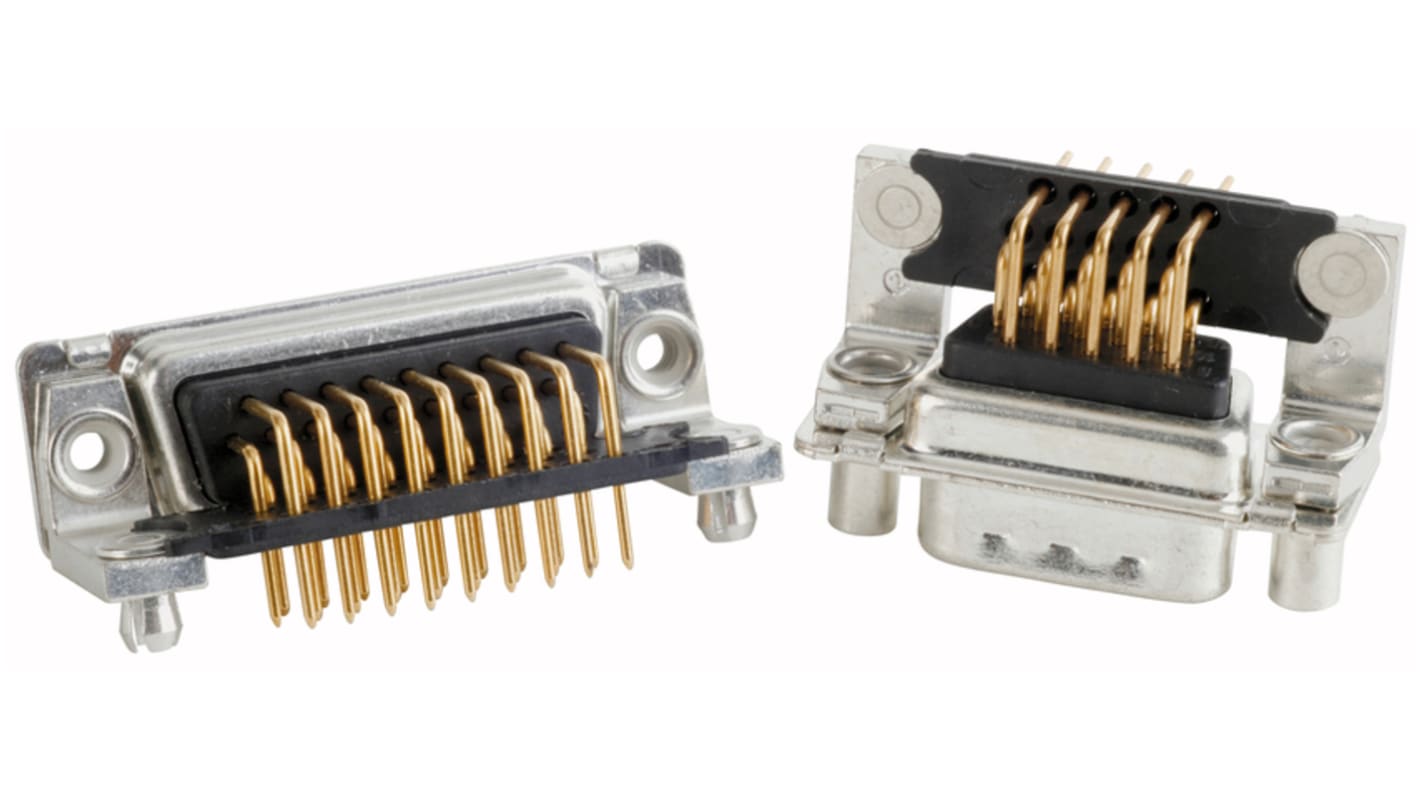

CONEC 15 Way Right Angle 2.28 mm Pitch Through Hole D-Sub Connector, with PCB Snap Male
- RS Stock No.:
- 228-0995
- Mfr. Part No.:
- 163A17769X
- Brand:
- CONEC
Bulk discount available
Subtotal (1 box of 30 units)*
£212.40
(exc. VAT)
£255.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 90 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 30 - 60 | £7.08 | £212.40 |
| 90 - 150 | £6.584 | £197.52 |
| 180 - 330 | £6.273 | £188.19 |
| 360 + | £5.997 | £179.91 |
*price indicative
- RS Stock No.:
- 228-0995
- Mfr. Part No.:
- 163A17769X
- Brand:
- CONEC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | CONEC | |
| Number of Contacts | 15 | |
| Product Type | D-Sub Connector | |
| Orientation | Right Angle | |
| Current | 3A | |
| Mount Type | Through Hole | |
| Connector Gender | Male | |
| D-Sub Shell Size | 0.35 in | |
| Mounting Hardware | PCB Snap | |
| Housing Material | Polybutylene Terephthalate Fibreglass | |
| Voltage | 60V | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Male | |
| Standards/Approvals | RoHS | |
| Contact Plating | Gold over Nickel | |
| Contact Material | Copper Alloy | |
| Pitch | 2.28mm | |
| Select all | ||
|---|---|---|
Brand CONEC | ||
Number of Contacts 15 | ||
Product Type D-Sub Connector | ||
Orientation Right Angle | ||
Current 3A | ||
Mount Type Through Hole | ||
Connector Gender Male | ||
D-Sub Shell Size 0.35 in | ||
Mounting Hardware PCB Snap | ||
Housing Material Polybutylene Terephthalate Fibreglass | ||
Voltage 60V | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Male | ||
Standards/Approvals RoHS | ||
Contact Plating Gold over Nickel | ||
Contact Material Copper Alloy | ||
Pitch 2.28mm | ||
The CONEC D Sub high density connector has 15 positions with angled male threaded contacts.
Shell is made up of steel
RoHS compliant
