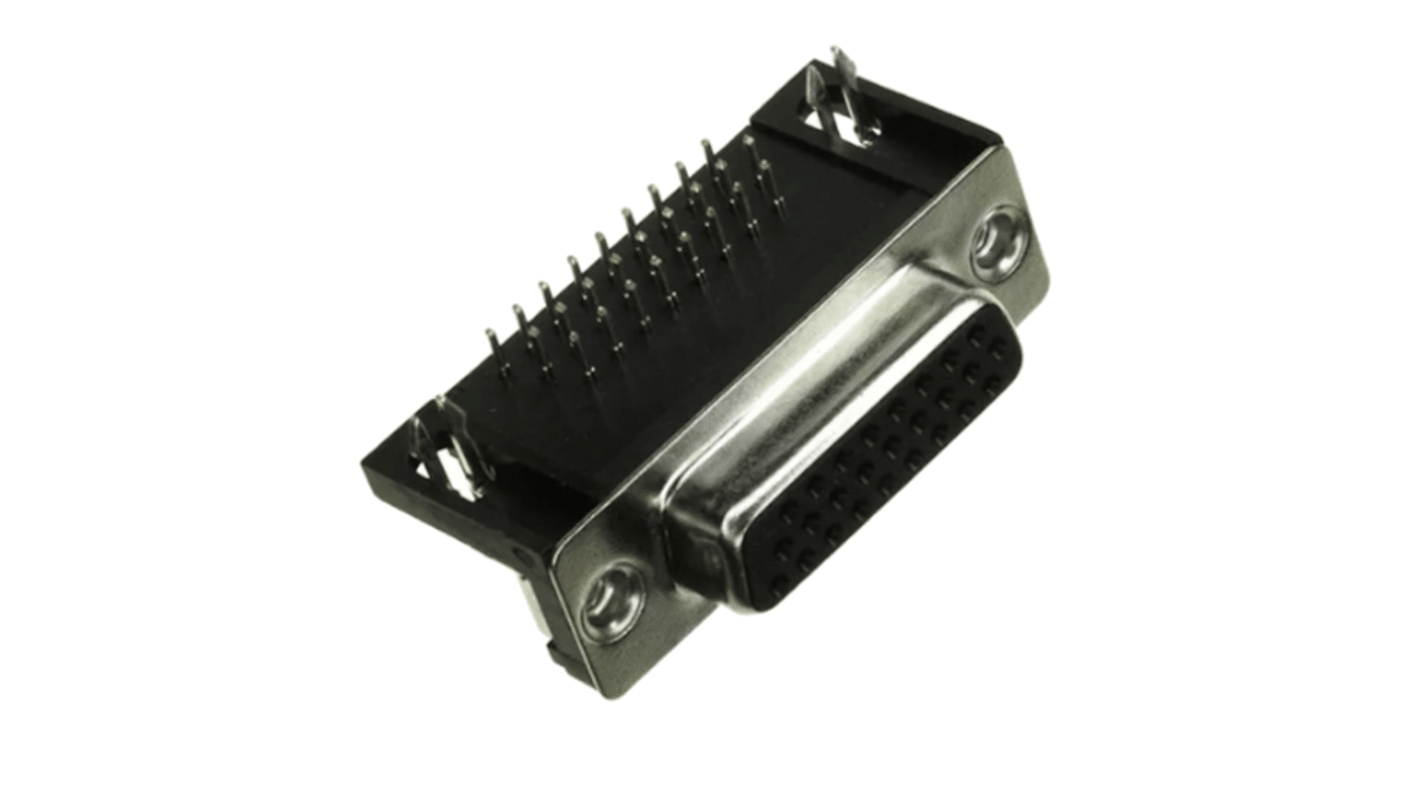

Norcomp 181 26 Way Right Angle 2.28 mm Pitch Panel D-Sub Connector, with Board Lock Female
- RS Stock No.:
- 205-4722
- Mfr. Part No.:
- 181-026-213R531
- Brand:
- Norcomp
Bulk discount available
Subtotal (1 unit)*
£4.03
(exc. VAT)
£4.84
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 9 | £4.03 |
| 10 - 49 | £3.72 |
| 50 - 99 | £3.39 |
| 100 + | £3.23 |
*price indicative
- RS Stock No.:
- 205-4722
- Mfr. Part No.:
- 181-026-213R531
- Brand:
- Norcomp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norcomp | |
| Product Type | D-Sub Connector | |
| Number of Contacts | 26 | |
| Orientation | Right Angle | |
| Current | 3A | |
| Mount Type | Panel | |
| Connector Gender | Female | |
| Connector Type D | Standard | |
| Mounting Hardware | Board Lock | |
| Housing Material | SPCC, Polyamide | |
| Voltage | 1000 V | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Series | 181 | |
| Contact Plating | Gold | |
| Contact Material | Brass | |
| Pitch | 2.28mm | |
| Select all | ||
|---|---|---|
Brand Norcomp | ||
Product Type D-Sub Connector | ||
Number of Contacts 26 | ||
Orientation Right Angle | ||
Current 3A | ||
Mount Type Panel | ||
Connector Gender Female | ||
Connector Type D Standard | ||
Mounting Hardware Board Lock | ||
Housing Material SPCC, Polyamide | ||
Voltage 1000 V | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Series 181 | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Pitch 2.28mm | ||
- COO (Country of Origin):
- TW
The Norcomp high density right angle D-sub connector which has a high density and design maximize board space. Its contact type is female and it used nickel plating. It used DIP solder type of termination and it has plug shell have indents to provide grou
3 different mounting option available.
Its operating temperature is -55°C to +105°C
