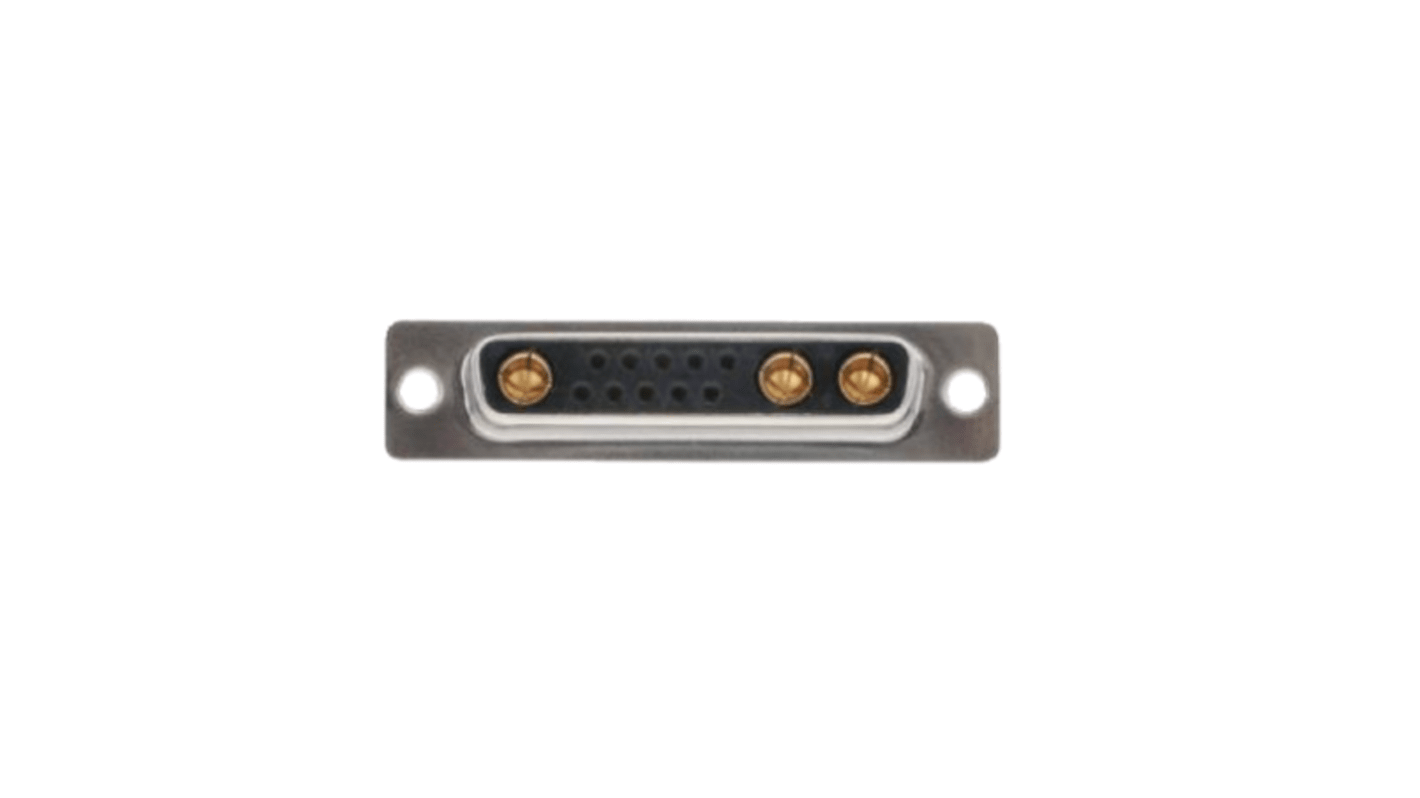

Norcomp 680M 13 Way Straight 2.77 mm Pitch Panel D-Sub Connector Female
- RS Stock No.:
- 205-4741
- Mfr. Part No.:
- 680M13W3203L401
- Brand:
- Norcomp
Subtotal (1 unit)*
£11.82
(exc. VAT)
£14.18
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £11.82 |
*price indicative
- RS Stock No.:
- 205-4741
- Mfr. Part No.:
- 680M13W3203L401
- Brand:
- Norcomp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norcomp | |
| Number of Contacts | 13 | |
| Product Type | D-Sub Connector | |
| Current | 5A | |
| Orientation | Straight | |
| Mount Type | Panel | |
| Connector Gender | Female | |
| Connector Type D | Standard | |
| Housing Material | Steel, Polybutylene Terephthalate | |
| Voltage | 1000 V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Series | 680M | |
| Pitch | 2.77mm | |
| Select all | ||
|---|---|---|
Brand Norcomp | ||
Number of Contacts 13 | ||
Product Type D-Sub Connector | ||
Current 5A | ||
Orientation Straight | ||
Mount Type Panel | ||
Connector Gender Female | ||
Connector Type D Standard | ||
Housing Material Steel, Polybutylene Terephthalate | ||
Voltage 1000 V | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Series 680M | ||
Pitch 2.77mm | ||
- COO (Country of Origin):
- TW
The Norcomp solder cup D-sub mixed contact used screw machined contact for high reliability. It has allow signal, high current & high voltage in one connector. It has 40ampere power contact. It used nickel platting and used copper alloy material. It has 1
Contacts are pre-loaded into the insulator.
Its operating temperature is -55°C to +125°C
