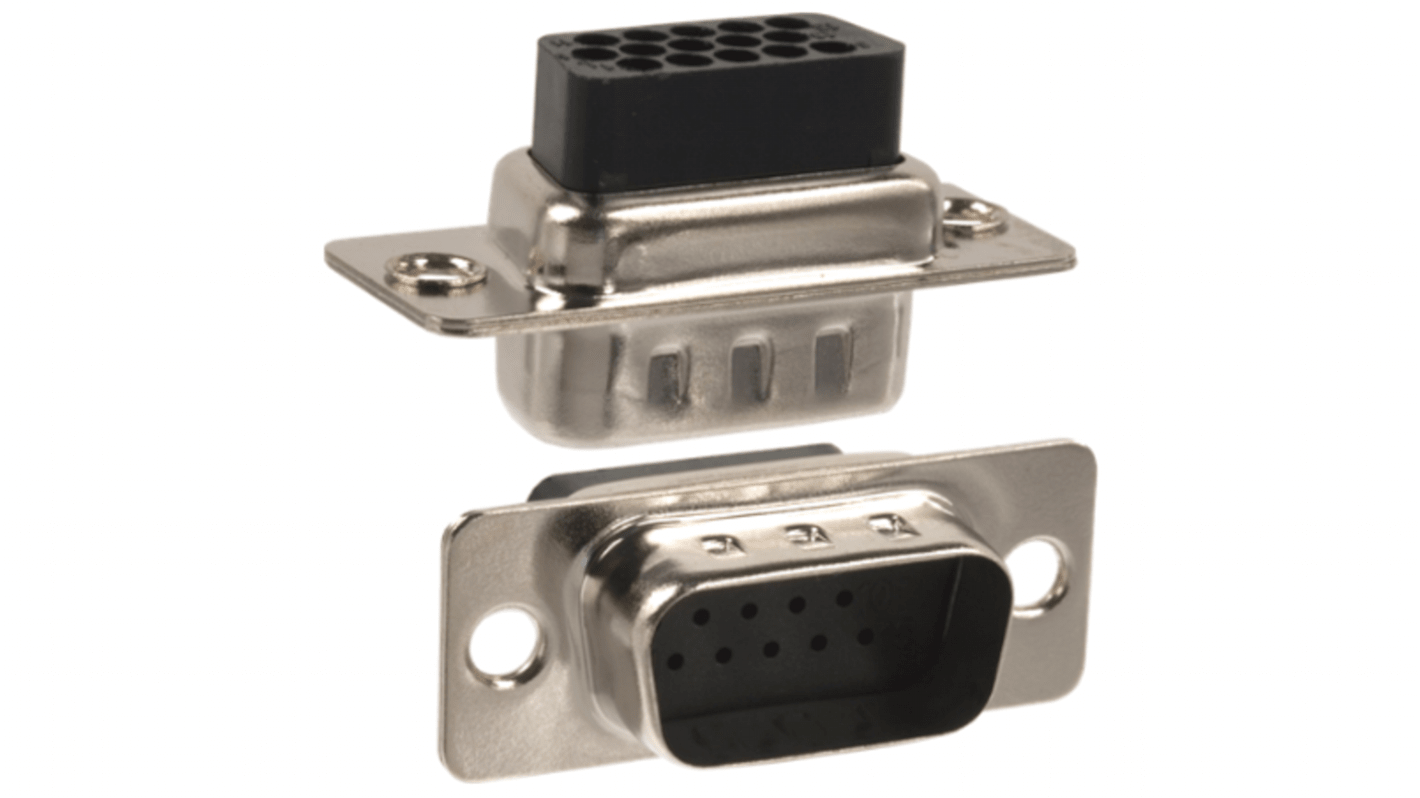

Norcomp 180 15 Way Straight 2.28 mm Pitch Panel Mount D-Sub Connector Male
- RS Stock No.:
- 205-4701
- Mfr. Part No.:
- 180-015-173L000
- Brand:
- Norcomp
Bulk discount available
Subtotal (1 unit)*
£2.35
(exc. VAT)
£2.82
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 37 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £2.35 |
| 10 - 49 | £1.91 |
| 50 - 99 | £1.75 |
| 100 + | £1.63 |
*price indicative
- RS Stock No.:
- 205-4701
- Mfr. Part No.:
- 180-015-173L000
- Brand:
- Norcomp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norcomp | |
| Product Type | D-Sub Connector | |
| Number of Contacts | 15 | |
| Current | 5A | |
| Orientation | Straight | |
| Mount Type | Panel Mount | |
| Connector Gender | Male | |
| Connector Type D | Standard | |
| Housing Material | Polybutylene Terephthalate, Steel | |
| Voltage | 500 V | |
| Termination Type | Crimp | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 100°C | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Contact Material | Nickel | |
| Series | 180 | |
| Pitch | 2.28mm | |
| Select all | ||
|---|---|---|
Brand Norcomp | ||
Product Type D-Sub Connector | ||
Number of Contacts 15 | ||
Current 5A | ||
Orientation Straight | ||
Mount Type Panel Mount | ||
Connector Gender Male | ||
Connector Type D Standard | ||
Housing Material Polybutylene Terephthalate, Steel | ||
Voltage 500 V | ||
Termination Type Crimp | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 100°C | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Contact Material Nickel | ||
Series 180 | ||
Pitch 2.28mm | ||
- COO (Country of Origin):
- CN
The Norcomp crimp & poke D-sub high-density D-sub connector which has a low cost, high performance stamped contact. Its contact type is male and it used nickel plating. It used crimp and load type of termination and it has plug shell have indents to provi
Approximately 65% higher density than a standard D-sub connector
Its operating temperature is -50°C to +100°C
