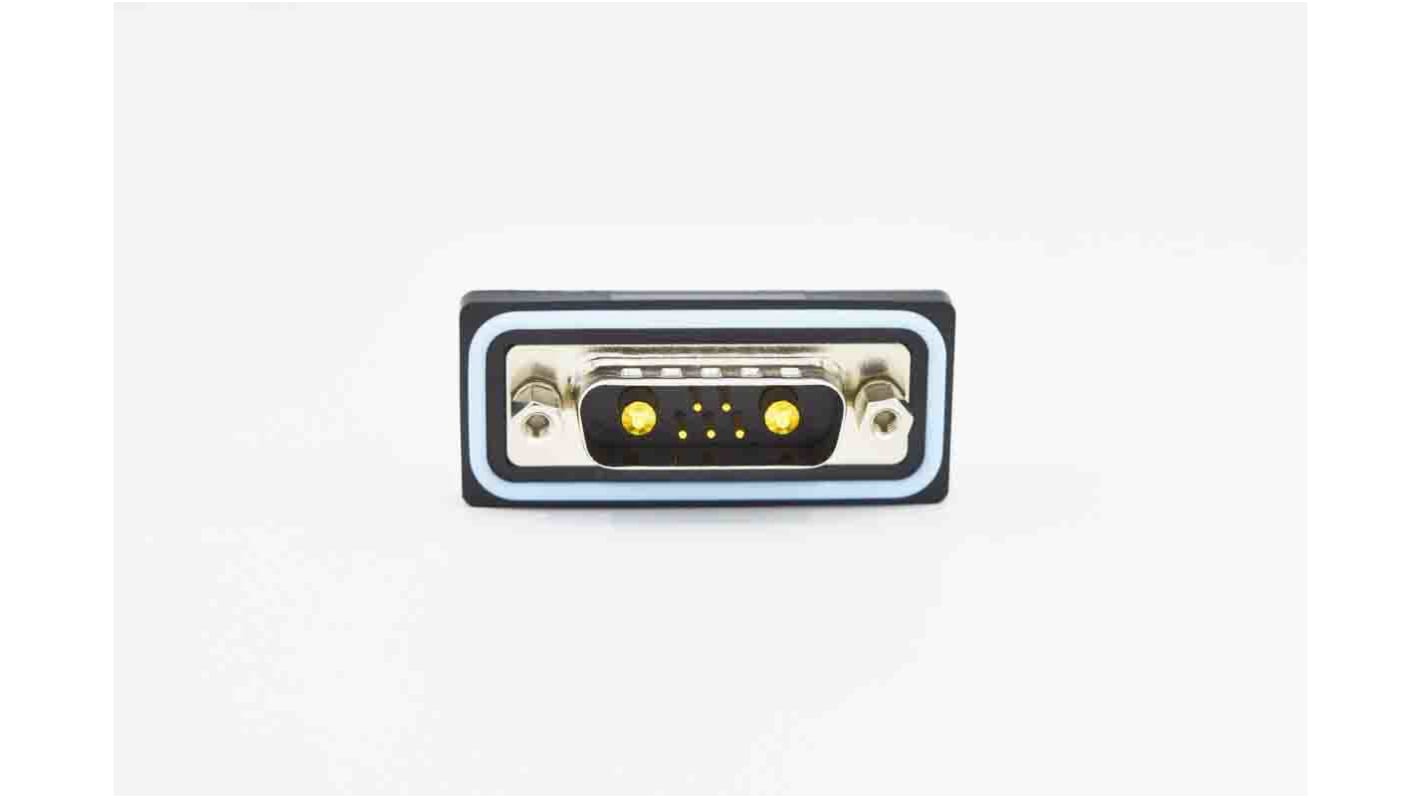

Norcomp CDFS 7 Way Panel Mount Solder D-sub Connector Socket, 2.77mm Pitch, with 4-40 Screw Locks
- RS Stock No.:
- 204-1686
- Mfr. Part No.:
- CDFS7W2203L211
- Brand:
- Norcomp
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 204-1686
- Mfr. Part No.:
- CDFS7W2203L211
- Brand:
- Norcomp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norcomp | |
| Number of Contacts | 7 | |
| Gender | Female | |
| Body Orientation | Straight | |
| Mounting Type | Panel Mount | |
| Pitch | 2.77mm | |
| Mounting Hardware | 4-40 Screw Locks | |
| Series | CDFS | |
Select all | ||
|---|---|---|
Brand Norcomp | ||
Number of Contacts 7 | ||
Gender Female | ||
Body Orientation Straight | ||
Mounting Type Panel Mount | ||
Pitch 2.77mm | ||
Mounting Hardware 4-40 Screw Locks | ||
Series CDFS | ||
The Norcomp CDFS series is a mixed flange D-sub 7W2 pin positions, female connector. The connector shell is made from nickel plating steel with gold plated brass contacts. It has a electrical rating of 1000 VAC and 20A with insulation resistance of 5Gohms. Mounting hardware options are 4 - 40 threaded inserts, jackscrew or Boardlocks.
Solder cup contacts
IP67 rating
Operating Temperature: -25°C to +85°C
IP67 rating
Operating Temperature: -25°C to +85°C
