- RS Stock No.:
- 192-0324
- Mfr. Part No.:
- 5745071-1
- Brand:
- TE Connectivity
Available to back order for despatch when stock is available
Added
Price Each (In a Pack of 2)
£6.84
(exc. VAT)
£8.21
(inc. VAT)
Units | Per unit | Per Pack* |
2 - 2 | £6.84 | £13.68 |
4 + | £6.705 | £13.41 |
*price indicative |
- RS Stock No.:
- 192-0324
- Mfr. Part No.:
- 5745071-1
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details

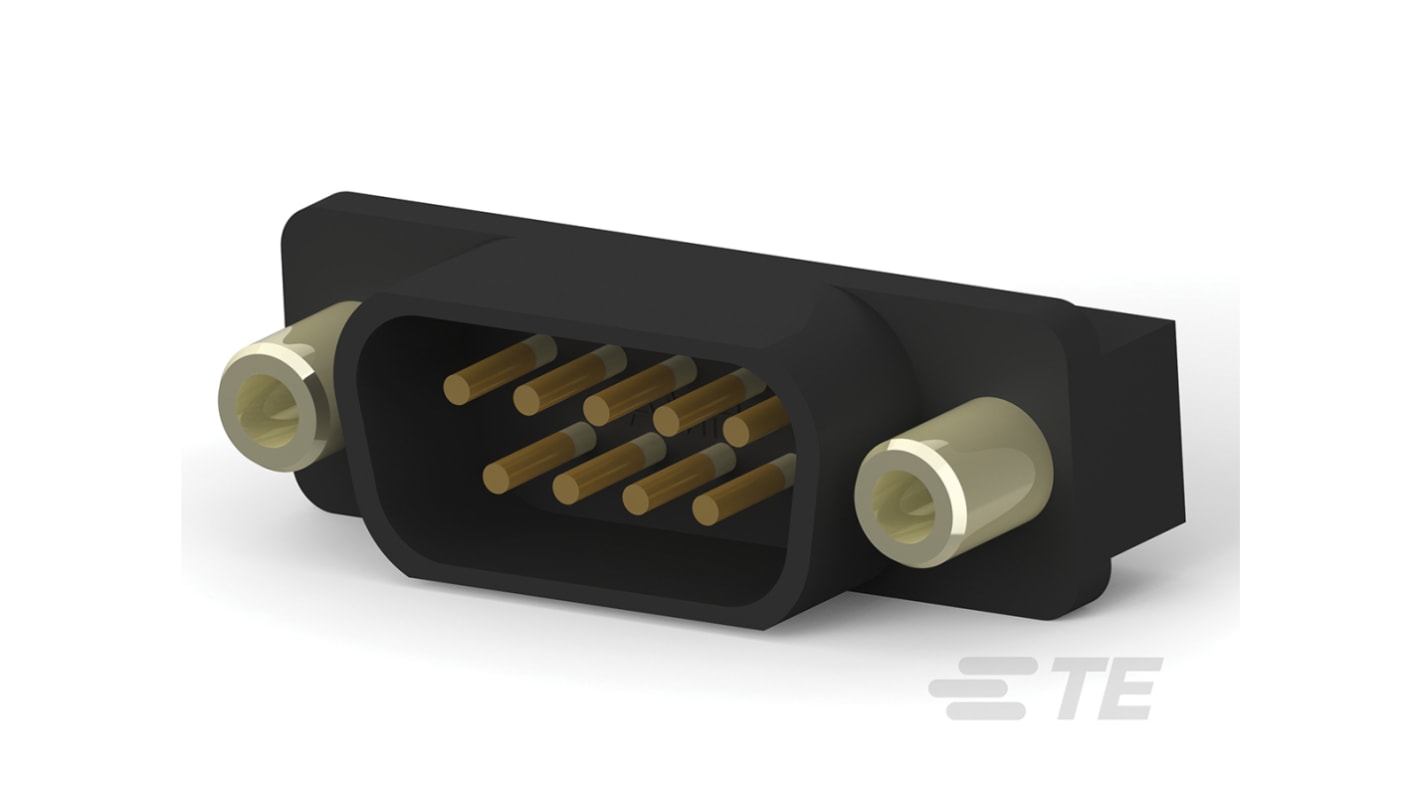

The TE Connectivity D-sub Connector Plug is a male connector with solder termination method and 2.74mm of pitch.
Number of Contacts: 9
Specifications
Attribute | Value |
---|---|
Number of Contacts | 9 |
Gender | Male |
Body Orientation | Straight |
Mounting Type | Through Hole |
Pitch | 2.74mm |
D Connector Type | Standard D-Sub |
Termination Method | Solder |
Current Rating | 6.0A |
Housing Material | Polyester |
Length | 30.89mm |
Width | 12.09mm |
Depth | 10.41mm |
Contact Plating | Nickel |
Dimensions | 30.89 x 12.09 x 10.41mm |
Contact Material | Brass |
Minimum Operating Temperature | -55.0°C |
Maximum Operating Temperature | +105°C |
