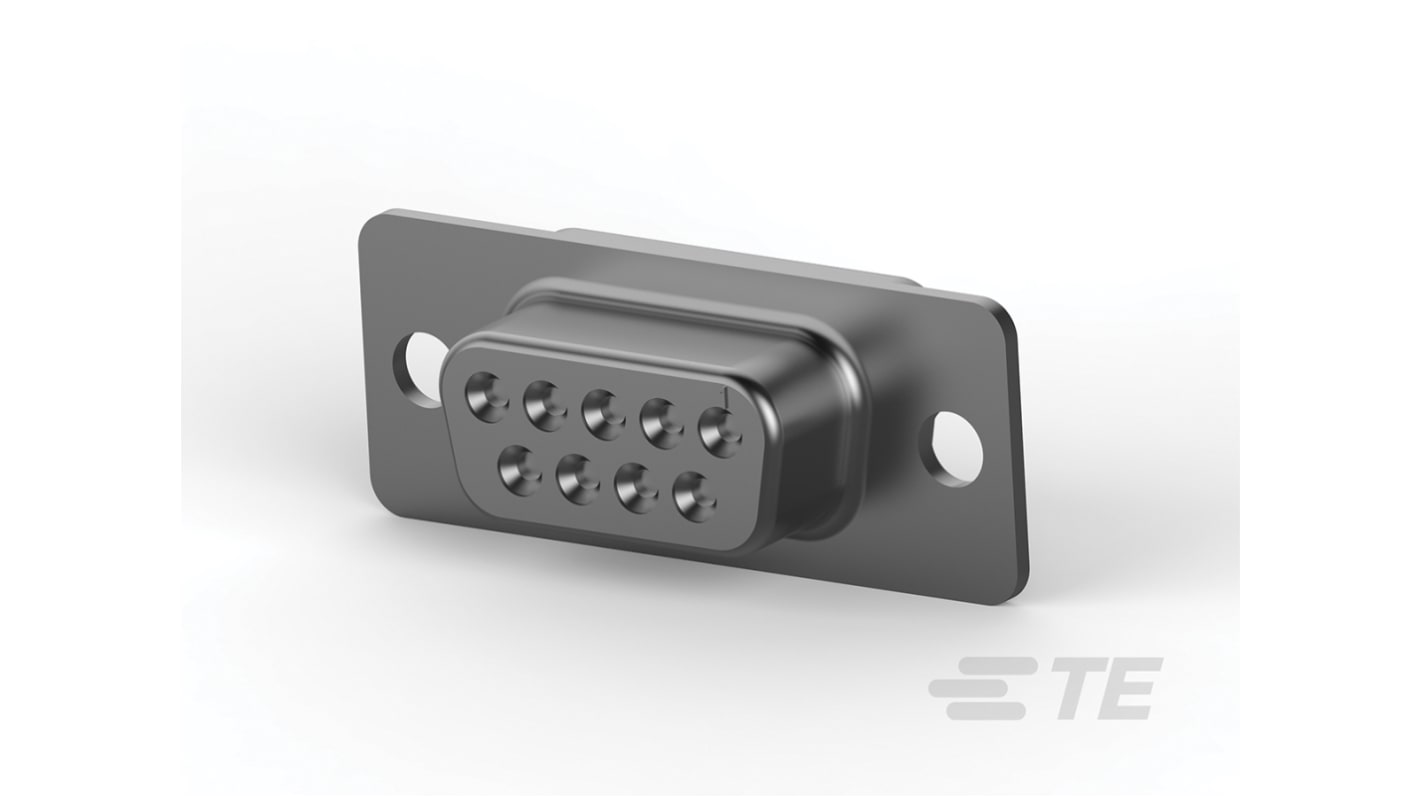

TE Connectivity 9 Way Cable Mount D-sub Connector Socket, 2.77mm Pitch
- RS Stock No.:
- 192-0302
- Mfr. Part No.:
- 5-747905-5
- Brand:
- TE Connectivity
542 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 2)
£3.025
(exc. VAT)
£3.63
(inc. VAT)
| Units | Per unit | Per Pack* |
| 2 - 8 | £3.025 | £6.05 |
| 10 - 18 | £2.915 | £5.83 |
| 20 + | £2.85 | £5.70 |
| *price indicative | ||
- RS Stock No.:
- 192-0302
- Mfr. Part No.:
- 5-747905-5
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
5-747905-5
Shell Type=Full Metal Shell, Connector Style=Receptacle, Connector System=Cable-to-Board, Shell Size=1, Shielded=Yes, Preloaded=Yes, Number of Positions=9, Insert Material=Thermoplastic, Contact Base Material=Phosphor Bronze, Contact Size=20, Contact Current Rating (Max)=3 A, Termination Method to Wire & Cable=Solder, PCB Mount Retention Type=None, Mating Connector Lock=With, Mating Connector Lock Type=Mounting Holes, Connector Mounting Type=Board Mount, Enclosure=Without, Centerline (Pitch)=2.77 mm, Wire Size=.5 – .6 mm², Operating Temperature Range=-55 – 105 °C, Circuit Application=Signal, Insert Flammability Rating=UL 94V-0, Packaging Method=Tray
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 9 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| Pitch | 2.77mm |
| D Connector Type | Standard D-Sub |
| Current Rating | 3A |
| Length | 30.8mm |
| Width | 11.9mm |
| Depth | 12.5mm |
| Contact Plating | Nickel |
| Contact Material | Brass |
| Dimensions | 30.8 x 11.9 x 12.5mm |
| Contact Size | 20 |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -55.0°C |
