Molex CMD 15 Way Right Angle 1.27 mm Pitch Through Hole D-Sub Connector Male

RS Stock No.:: 189-1392
Mfr. Part No.:: 83612-9020
Brand:: Molex

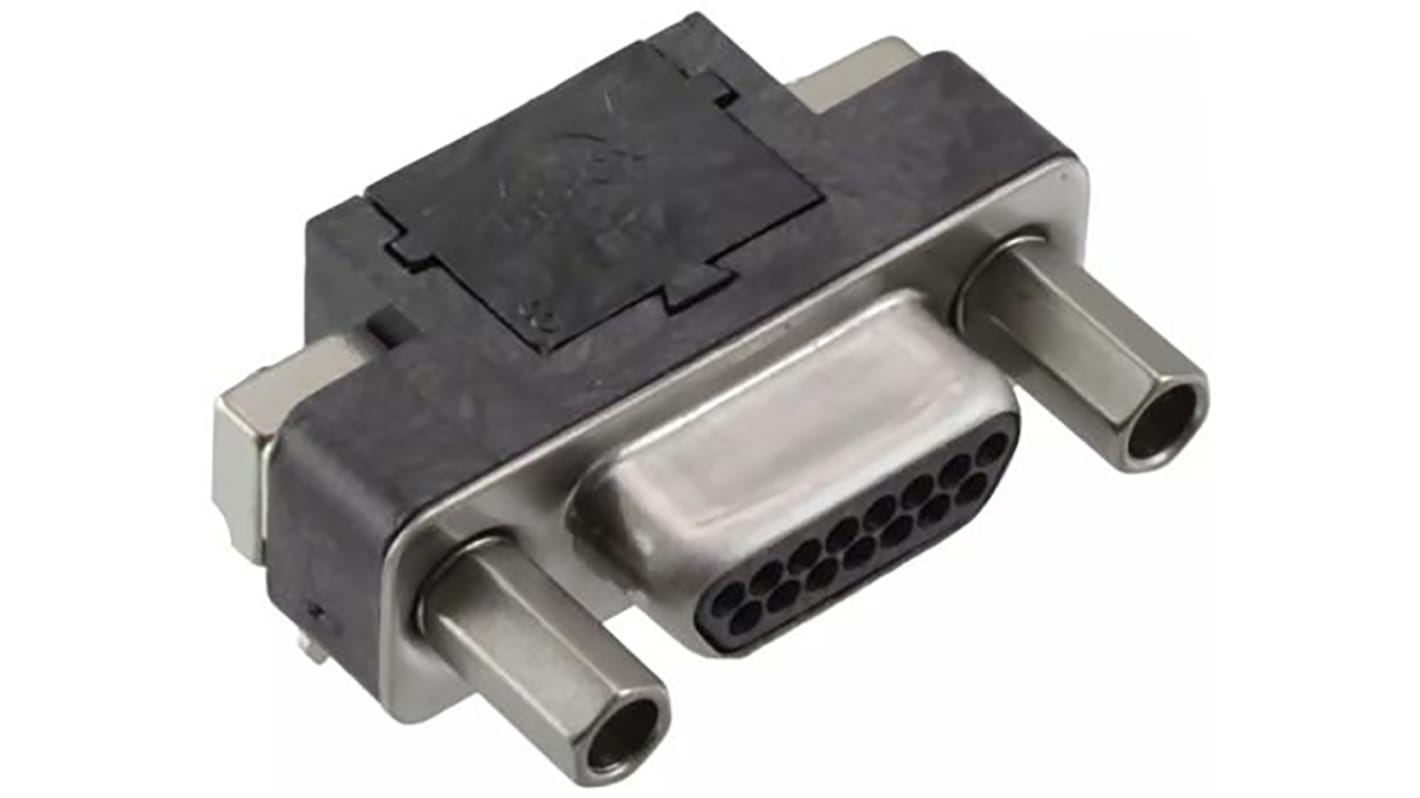

Molex CMD 15 Way Right Angle 1.27 mm Pitch Through Hole D-Sub Connector Male

Image representative of range

Bulk discount available

Subtotal (1 tube of 132 units)*

£1,437.084

(exc. VAT)

£1,724.448

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 31 July 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Tube*
132 - 132	£10.887	£1,437.08
264 +	£10.343	£1,365.28

*price indicative

D Sub Backshells

Don't forget D Sub Backshells!

Shop D Sub Backshells now

RS Stock No.:: 189-1392
Mfr. Part No.:: 83612-9020
Brand:: Molex

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Product Type	D-Sub Connector
	Number of Contacts	15
	Current	1A
	Orientation	Right Angle
	Mount Type	Through Hole
	Connector Gender	Male
	Housing Material	Liquid Crystal Polymer
	Voltage	600 V
	Minimum Operating Temperature	-40°C
	Termination Type	Solder
	Contact Gender	Male
	Maximum Operating Temperature	125°C
	Standards/Approvals	No
	Contact Material	Copper Alloy
	Series	CMD
	Contact Plating	Gold
	Pitch	1.27mm
	Contact Size	15

	Select all
	Brand Molex
	Product Type D-Sub Connector
	Number of Contacts 15
	Current 1A
	Orientation Right Angle
	Mount Type Through Hole
	Connector Gender Male
	Housing Material Liquid Crystal Polymer
	Voltage 600 V
	Minimum Operating Temperature -40°C
	Termination Type Solder
	Contact Gender Male
	Maximum Operating Temperature 125°C
	Standards/Approvals No
	Contact Material Copper Alloy
	Series CMD
	Contact Plating Gold
	Pitch 1.27mm
	Contact Size 15

Datasheet 83612-9020

COO (Country of Origin):: CN

Molex Commercial Micro D-Sub PCB Mount Connectors

From Molex, the next generation in commercial Micro-D-Sub connectors. These Micro D PCB mount plugs are 4 times the density of standard D-Subs. An ideal space saving solution for the ever demanding industrial data markets. The robust connectors feature a metal interface and grounding tabs with a 1.27mm centre line spacing. Available in right angle and vertical options. Complete with jack posts.

Features and Benefits

Improved space saving on PCB board

Rugged robust design

High density 1.27 mm pitch

Metal interface and grounding tabs

Wide operating temperature range -40°C to +125°C

Applications

Medical

Industrial automation

Data/communications

Commercial Vehicle
