Molex 83614 25 Way Right Angle Through Hole D-sub Connector Plug, 1.27mm Pitch

RS Stock No.:: 126-6377
Distrelec Article No.:: 303-00-450
Mfr. Part No.:: 836149012
Brand:: Molex

Molex 83614 25 Way Right Angle Through Hole D-sub Connector Plug, 1.27mm Pitch

Bulk discount available

Subtotal (1 unit)*

£16.64

(exc. VAT)

£19.97

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

5 unit(s) shipping from 12 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£16.64
10 - 24	£15.37
25 - 49	£14.95
50 - 99	£14.56
100 +	£14.19

*price indicative

RS Stock No.:: 126-6377
Distrelec Article No.:: 303-00-450
Mfr. Part No.:: 836149012
Brand:: Molex

Molex Commercial Micro D-Sub PCB Mount Connectors

From Molex, the next generation in commercial Micro-D-Sub connectors. These Micro D PCB mount plugs are 4 times the density of standard D-Subs. An ideal space saving solution for the ever demanding industrial data markets. The robust connectors feature a metal interface and grounding tabs with a 1.27mm centre line spacing. Available in right angle and vertical options. Complete with jack posts.

Features and Benefits

Improved space saving on PCB board
Rugged robust design
High density 1.27 mm pitch
Metal interface and grounding tabs
Wide operating temperature range -40°C to +125°C

Applications

Medical
Industrial automation
Data/communications
Commercial Vehicle

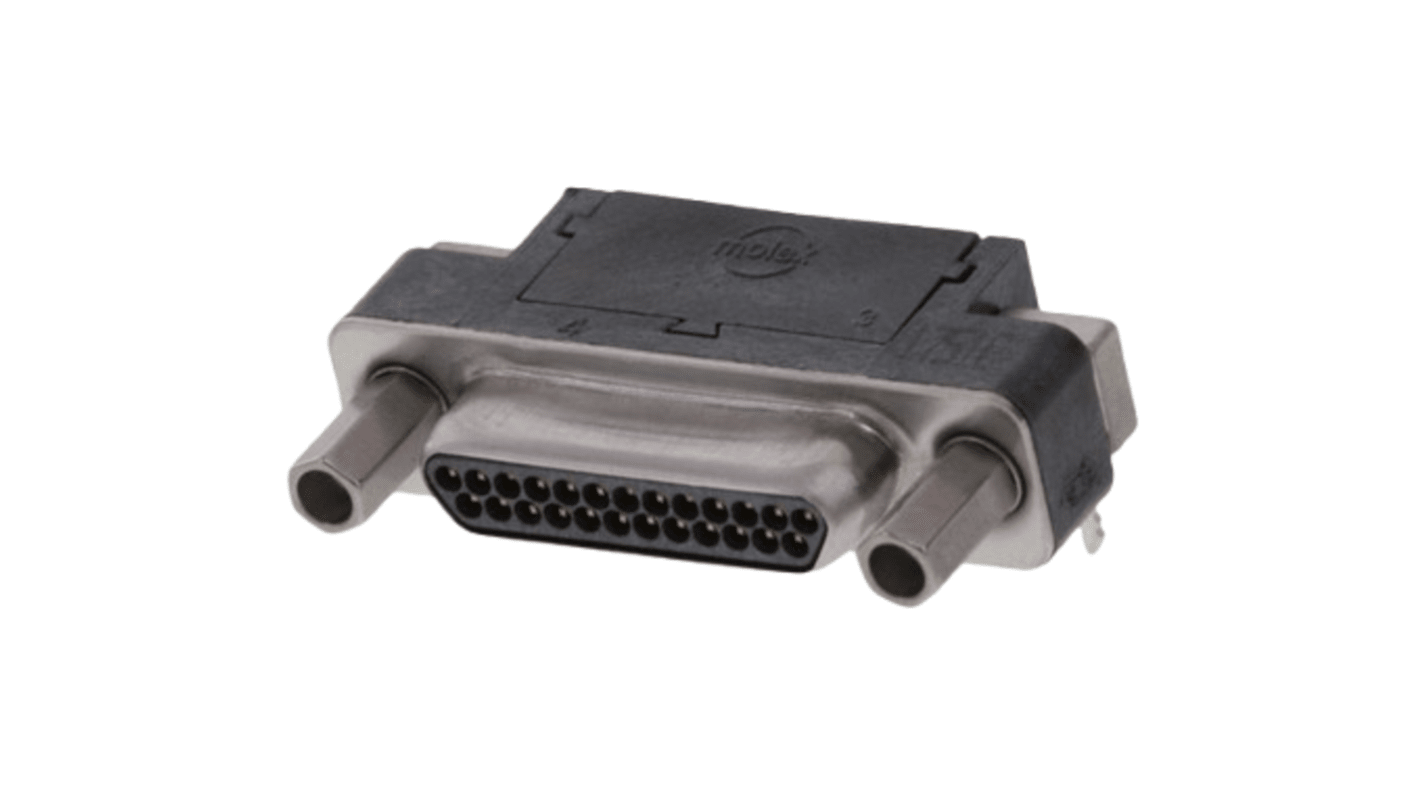

Molex 83614 Series D-sub Connector, 25 Contacts, Right Angle Orientation - 836149012

This D-sub connector, designed for high-performance applications, features a micro-D configuration with 25 male contacts. With dimensions of 30.1mm in length, 15.02mm in width, and 7.8mm in depth, it is tailored for efficient connectivity in various electronic setups. The right-angled body orientation and through-hole mounting type ensure ease of installation, while its robust construction withstands demanding environments.

Features & Benefits

• Right-angled design allows for efficient space utilisation
• Constructed from liquid crystal polymer for enhanced durability
• Rated for voltages up to 350V for high voltage applications
• Solder termination method provides secure connections
• Copper alloy contacts with gold plating for superior conductivity
• Operates effectively in temperatures ranging from -40°C to +125°C

Applications

• Used for electronic control systems in automation
• Suitable for interconnection in mechanical devices
• Ideal for high-density requiring a compact design
• Effective in wiring solutions within electrical cabinets
• Employed in signal communication systems

What type of connections can be made with this connector?

This connector features a solder termination method, allowing for robust and reliable connections in various applications. The 25 male contacts enable versatile interfacing in both signal and power applications.

How does the material impact performance under varied conditions?

The liquid crystal polymer casing provides excellent thermal resistance and stability, enabling operation within a wide temperature range while maintaining performance under stressful conditions.

What mounting method is recommended for secure installation?

The through-hole mounting type ensures that the connector is securely fixed onto a circuit board, providing stability throughout its operational lifespan, particularly in dynamic environments.

Can this connector be used in high-frequency applications?

Yes, the design and materials used support effective signal integrity, making it suitable for high-frequency applications while preventing signal loss.

Molex high Density Micro D-Subminiature Connectors

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Number of Contacts	25
	Gender	Male
	Body Orientation	Right Angle
	Mounting Type	Through Hole
	Pitch	1.27mm
	D Connector Type	Micro-D
	Termination Method	Solder
	Current Rating	1A
	Housing Material	Liquid Crystal Polymer
	Voltage Rating	350 V
	Length	30.1mm
	Width	15.02mm
	Depth	7.8mm
	Series	83614
	Contact Plating	Gold
	Contact Material	Copper Alloy
	Dimensions	30.1 x 15.02 x 7.82mm
	Series Number	83614
	Minimum Operating Temperature	-40.0°C
	Maximum Operating Temperature	+125°C
	Contact Size	25

	Select all
	Brand Molex
	Number of Contacts 25
	Gender Male
	Body Orientation Right Angle
	Mounting Type Through Hole
	Pitch 1.27mm
	D Connector Type Micro-D
	Termination Method Solder
	Current Rating 1A
	Housing Material Liquid Crystal Polymer
	Voltage Rating 350 V
	Length 30.1mm
	Width 15.02mm
	Depth 7.8mm
	Series 83614
	Contact Plating Gold
	Contact Material Copper Alloy
	Dimensions 30.1 x 15.02 x 7.82mm
	Series Number 83614
	Minimum Operating Temperature -40.0°C
	Maximum Operating Temperature +125°C
	Contact Size 25
