TE Connectivity 2 Way Right Angle D-sub Connector Socket
- RS Stock No.:
- 187-5725
- Mfr. Part No.:
- 2204740-1
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 187-5725
- Mfr. Part No.:
- 2204740-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Number of Contacts | 2 | |
Gender | Female | |
Body Orientation | Right Angle | |
Current Rating | 50A | |
Housing Material | LCP | |
Voltage Rating | 300 V dc | |
Length | 57mm | |
Width | 65.5mm | |
Depth | 8.85mm | |
Contact Plating | Gold, Nickel | |
Contact Material | Copper Alloy | |
Dimensions | 57 x 65.5 x 8.85mm | |
Minimum Operating Temperature | -40°C | |
Contact Size | 4 | |
Maximum Operating Temperature | +125°C | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Number of Contacts 2 | ||
Gender Female | ||
Body Orientation Right Angle | ||
Current Rating 50A | ||
Housing Material LCP | ||
Voltage Rating 300 V dc | ||
Length 57mm | ||
Width 65.5mm | ||
Depth 8.85mm | ||
Contact Plating Gold, Nickel | ||
Contact Material Copper Alloy | ||
Dimensions 57 x 65.5 x 8.85mm | ||
Minimum Operating Temperature -40°C | ||
Contact Size 4 | ||
Maximum Operating Temperature +125°C | ||

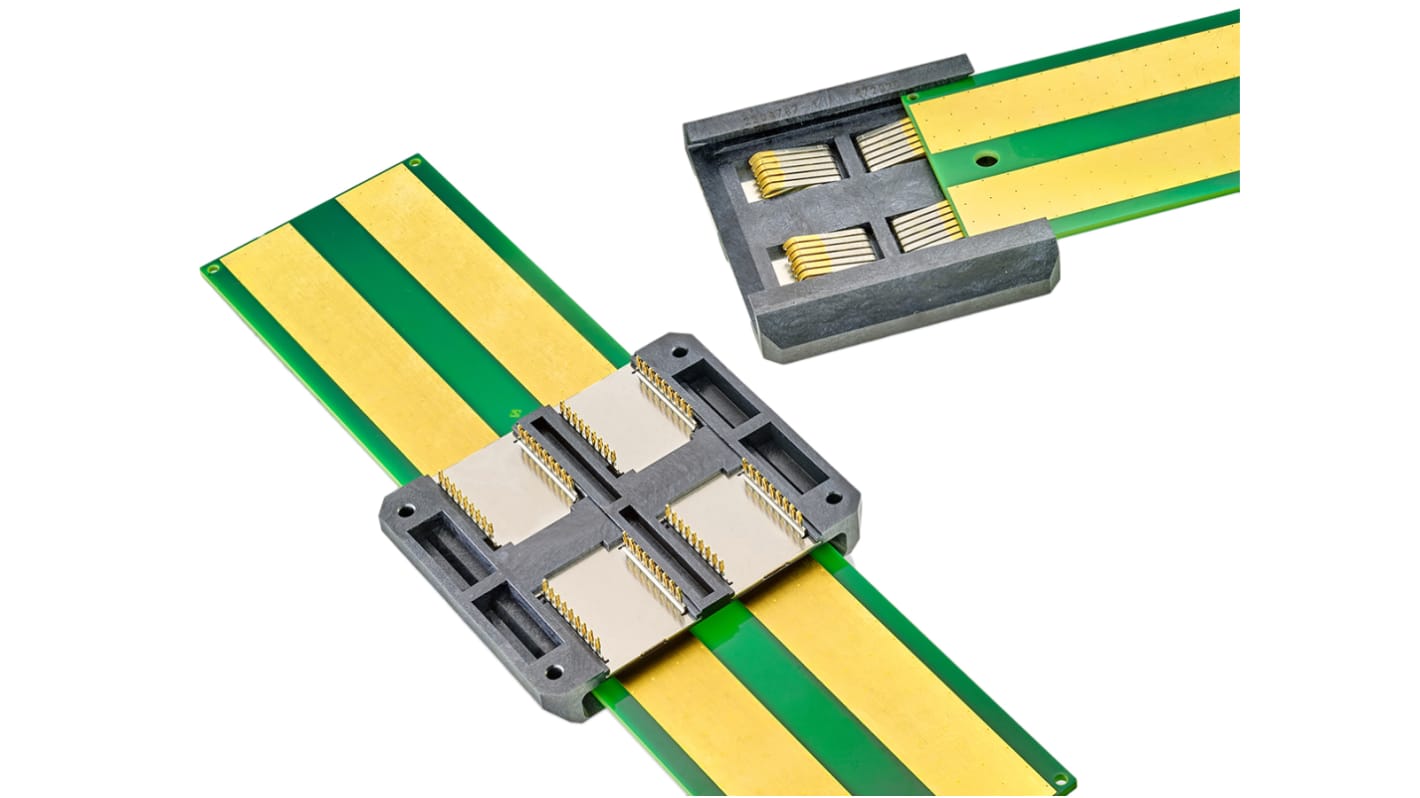

TE Connectivitys (TE) sliding power connector is one of the only connectors of its kind that allows for hot swapping of components in a server drawer. This power solution is ideal for applications up to 75A and eliminates the need for a bulky cable management system within the drawer. The sliding power connector also shows improved voltage drop over cables due to a more direct path from the power source to the server. With limited cabled connections, the sliding power connector is also more reliable. With no need for complex cable management or loose moving parts within the drawer, the sliding power connector provides a simpler design that is less prone to disconnection from the power source.
Allows for hot swapping of components
Ideal for applications up to 75A
Eliminates the need for bulky cable management systems
Improved voltage drop over cables
Simple design
Minimal system downtime
Energy efficiency
Higher reliability
Applications
Hard disk drives
Power supply units
Open Compute Project (OCP) cubby
Racks
Servers
Storage units
High current applications
Ideal for applications up to 75A
Eliminates the need for bulky cable management systems
Improved voltage drop over cables
Simple design
Minimal system downtime
Energy efficiency
Higher reliability
Applications
Hard disk drives
Power supply units
Open Compute Project (OCP) cubby
Racks
Servers
Storage units
High current applications
