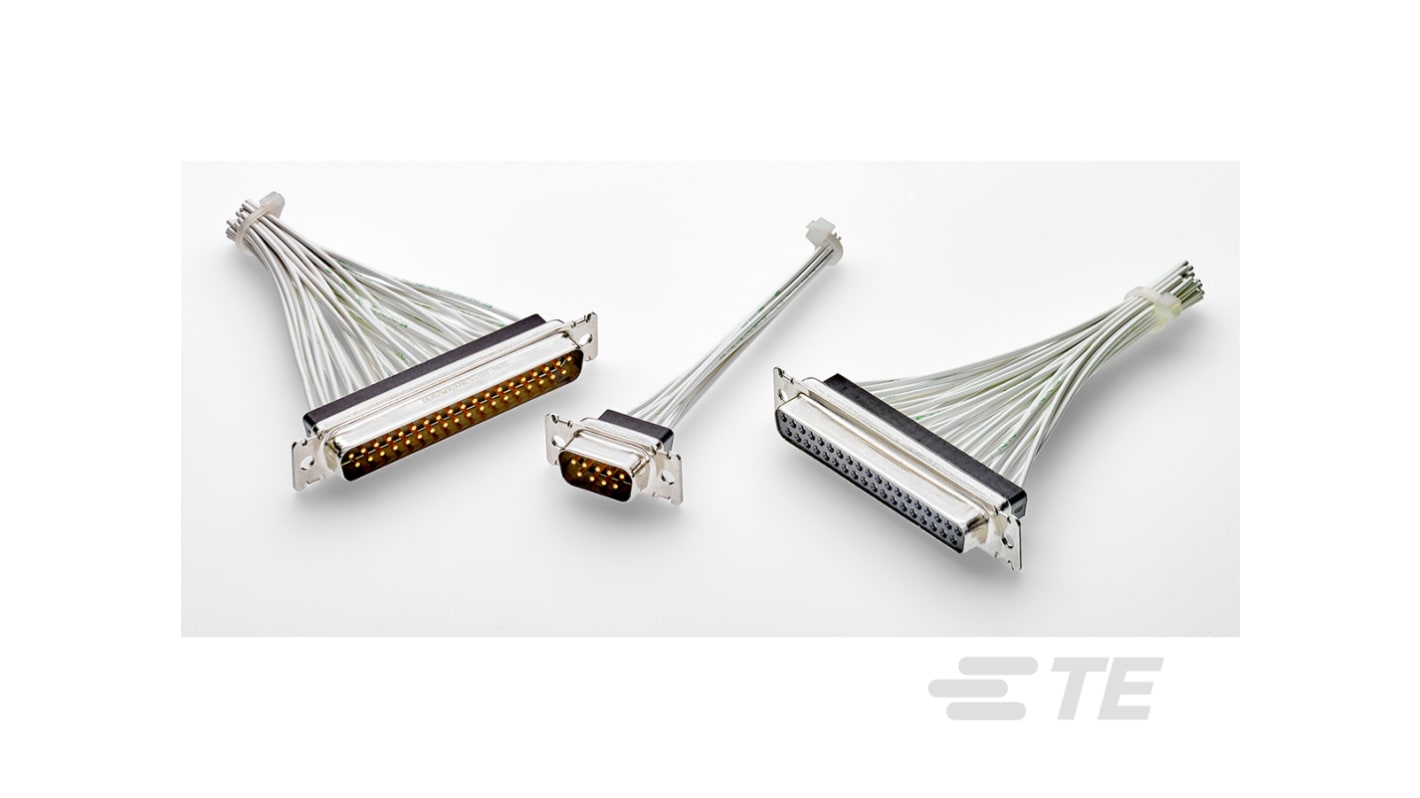

TE Connectivity 90 44 Way Cable Mount D-sub Connector Plug, 2.29mm Pitch

RS Stock No.:: 187-1008
Mfr. Part No.:: 2335891-3
Brand:: TE Connectivity

TE Connectivity 90 44 Way Cable Mount D-sub Connector Plug, 2.29mm Pitch

View this category

Discontinued product

RS Stock No.:: 187-1008
Mfr. Part No.:: 2335891-3
Brand:: TE Connectivity

Technical Reference

Legislation and Compliance

COO (Country of Origin):: US

Product Details

TE Connectivity 2335891-3

Product Type=Connector, Connector Style=Plug, Connector System=Cable-to-Cable, Shell Size=3, Sealable=No, Preloaded=No, Number of Positions=44, Power/Signal/Coax Combination=No, Retention Clip Material=Stainless Steel, Non-Magnetic=No, Contact Type=Pin, Contact Style=Pin, Contact Size=22, Contact Current Rating (Max)=5 A, Mounting Hole Diameter=2.92 – 3.18 mm, Connector Mounting Type=Cable Mount (Free-Hanging), Centerline (Pitch)=2.29 mm, Operating Temperature Range=-55 – 125 °C, ULTRA-LITE Connector=No, Circuit Application=Signal, NASA Qualification=No, Packaging Method=Package

Specifications

Attribute	Value
Number of Contacts	44
Gender	Male
Mounting Type	Cable Mount
Pitch	2.29mm
Termination Method	Crimp
Current Rating	5.0A
Housing Material	Stainless Steel
Length	53.03mm
Width	12.55mm
Depth	10.82mm
Dimensions	53.03 x 12.55 x 10.82mm
Series	90
Series Number	2335891
Contact Size	22
Minimum Operating Temperature	-55.0°C
Maximum Operating Temperature	+125°C
