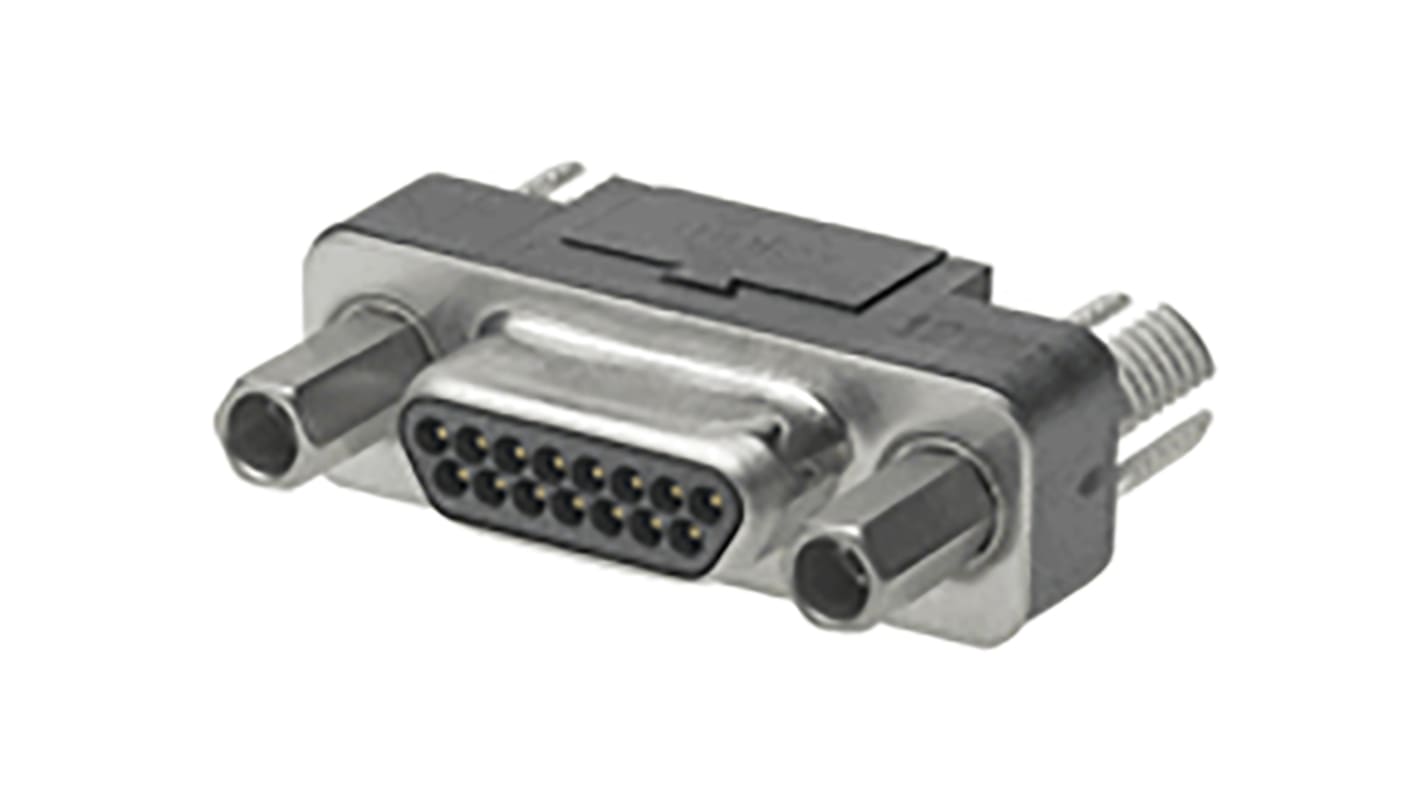

Molex CMD 15 Way Through Hole D-sub Connector Plug, 1.27mm Pitch, with Jack Screw
- RS Stock No.:
- 178-9334
- Mfr. Part No.:
- 83612-9024
- Brand:
- Molex
Bulk discount available
Subtotal (1 box of 132 units)*
£1,572.648
(exc. VAT)
£1,887.204
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Box* |
|---|---|---|
| 132 - 132 | £11.914 | £1,572.65 |
| 264 - 528 | £11.319 | £1,494.11 |
| 660 - 1188 | £10.723 | £1,415.44 |
| 1320 + | £10.127 | £1,336.76 |
*price indicative
- RS Stock No.:
- 178-9334
- Mfr. Part No.:
- 83612-9024
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 15 | |
| Gender | Male | |
| Body Orientation | Straight | |
| Mounting Type | Through Hole | |
| Pitch | 1.27mm | |
| D Connector Type | Micro-D | |
| Mounting Hardware | Jack Screw | |
| Termination Method | Solder | |
| Current Rating | 1A | |
| Voltage Rating | 350.0 V | |
| Length | 23.62mm | |
| Width | 7.8mm | |
| Depth | 14.99mm | |
| Series | CMD | |
| Dimensions | 23.62 x 7.8 x 14.99mm | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | -40.0°C | |
| Maximum Operating Temperature | +125°C | |
| Series Number | 83612 | |
Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 15 | ||
Gender Male | ||
Body Orientation Straight | ||
Mounting Type Through Hole | ||
Pitch 1.27mm | ||
D Connector Type Micro-D | ||
Mounting Hardware Jack Screw | ||
Termination Method Solder | ||
Current Rating 1A | ||
Voltage Rating 350.0 V | ||
Length 23.62mm | ||
Width 7.8mm | ||
Depth 14.99mm | ||
Series CMD | ||
Dimensions 23.62 x 7.8 x 14.99mm | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Minimum Operating Temperature -40.0°C | ||
Maximum Operating Temperature +125°C | ||
Series Number 83612 | ||
- COO (Country of Origin):
- CN
1.27mm Pitch Commercial Micro D, PCB Mount, Vertical Plug, 15 Circuits
