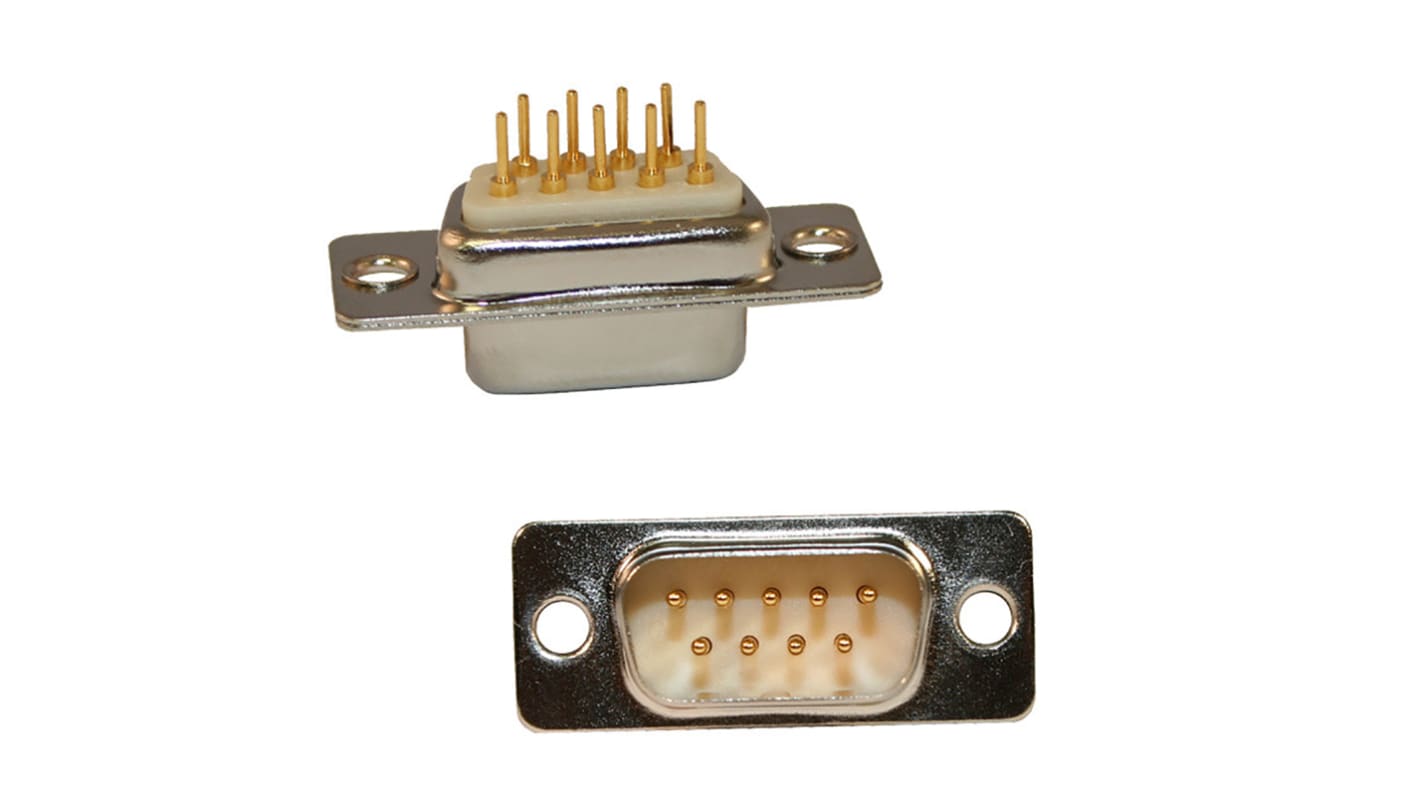

Norcomp 172 9 Way Through Hole D-sub Connector Socket, 2.54mm Pitch, with 4-40 Spacer/Board Lock
- RS Stock No.:
- 174-8783
- Mfr. Part No.:
- 172-E09-213R911
- Brand:
- Norcomp
Bulk discount available
Subtotal (1 unit)*
£4.26
(exc. VAT)
£5.11
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 8 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £4.26 |
| 5 - 24 | £4.00 |
| 25 - 49 | £3.69 |
| 50 - 99 | £3.55 |
| 100 + | £3.37 |
*price indicative
- RS Stock No.:
- 174-8783
- Mfr. Part No.:
- 172-E09-213R911
- Brand:
- Norcomp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norcomp | |
| Number of Contacts | 9 | |
| Gender | Female | |
| Body Orientation | Straight | |
| Mounting Type | Through Hole | |
| Pitch | 2.54mm | |
| D Connector Type | Standard D-Sub | |
| Mounting Hardware | 4-40 Spacer/Board Lock | |
| Termination Method | Solder | |
| D-Sub Shell Size | D | |
| Current Rating | 5.0A | |
| Housing Material | Steel | |
| Voltage Rating | 500.0 V | |
| Length | 30.734mm | |
| Width | 12.446mm | |
| Depth | 12.446mm | |
| Series | 172 | |
| Contact Material | Brass | |
| Contact Plating | Gold Flash | |
| Dimensions | 30.734 x 12.446 x 12.446mm | |
| Maximum Operating Temperature | +100°C | |
| Minimum Operating Temperature | -50.0°C | |
| Series Number | 172 | |
Select all | ||
|---|---|---|
Brand Norcomp | ||
Number of Contacts 9 | ||
Gender Female | ||
Body Orientation Straight | ||
Mounting Type Through Hole | ||
Pitch 2.54mm | ||
D Connector Type Standard D-Sub | ||
Mounting Hardware 4-40 Spacer/Board Lock | ||
Termination Method Solder | ||
D-Sub Shell Size D | ||
Current Rating 5.0A | ||
Housing Material Steel | ||
Voltage Rating 500.0 V | ||
Length 30.734mm | ||
Width 12.446mm | ||
Depth 12.446mm | ||
Series 172 | ||
Contact Material Brass | ||
Contact Plating Gold Flash | ||
Dimensions 30.734 x 12.446 x 12.446mm | ||
Maximum Operating Temperature +100°C | ||
Minimum Operating Temperature -50.0°C | ||
Series Number 172 | ||
- COO (Country of Origin):
- TW
Dip solder d-subs available in 5 industry sizes/positions
Standard Density (9 pin, 15 pin, 25 pin, 37 pin, 50 pin).
Nickel shells available only. Low cost economy series.
Male shells have indents to provide grounding and additional retention.
Screw machined contacts offer high reliability. Non-removable contacts.
Optional mounting hardware available
Shell: Steel, Nickel plated
Insulator: Glass-filled thermoplastic. (260°C process temp)
Machined contacts: Male pins - Brass | Female pins - Brass
Plating: Gold flash on entire contact
Standard Density (9 pin, 15 pin, 25 pin, 37 pin, 50 pin).
Nickel shells available only. Low cost economy series.
Male shells have indents to provide grounding and additional retention.
Screw machined contacts offer high reliability. Non-removable contacts.
Optional mounting hardware available
Shell: Steel, Nickel plated
Insulator: Glass-filled thermoplastic. (260°C process temp)
Machined contacts: Male pins - Brass | Female pins - Brass
Plating: Gold flash on entire contact
