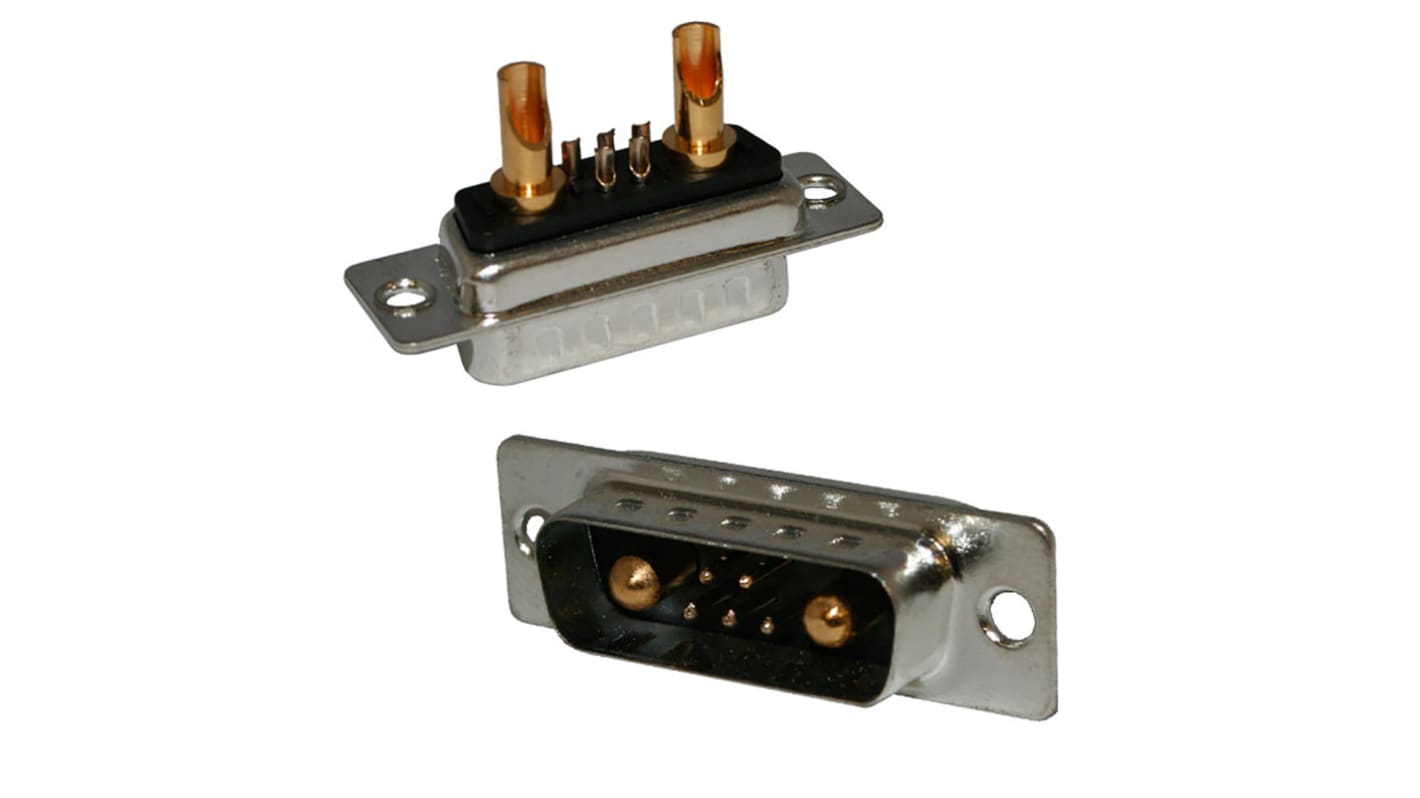

Norcomp 680M 3 Way Panel Mount D-sub Connector Socket, 6.85mm Pitch
- RS Stock No.:
- 174-8717
- Mfr. Part No.:
- 680M3W3203L401
- Brand:
- Norcomp
Bulk discount available
Subtotal (1 unit)*
£8.40
(exc. VAT)
£10.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 40 unit(s) ready to ship
- Plus 80 unit(s) shipping from 18 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £8.40 |
| 5 - 24 | £7.72 |
| 25 - 49 | £7.17 |
| 50 - 99 | £6.69 |
| 100 + | £6.27 |
*price indicative
- RS Stock No.:
- 174-8717
- Mfr. Part No.:
- 680M3W3203L401
- Brand:
- Norcomp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norcomp | |
| Number of Contacts | 3 | |
| Gender | Female | |
| Body Orientation | Straight | |
| Mounting Type | Panel Mount | |
| Pitch | 6.85mm | |
| Termination Method | Solder | |
| Current Rating | 40.0A | |
| Mixed Contact Layout | 3W3 | |
| Housing Material | Steel | |
| Voltage Rating | 1.0 kV | |
| Length | 39.2mm | |
| Width | 12.5mm | |
| Depth | 10.9mm | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold Flash | |
| Dimensions | 39.2 x 12.5 x 10.9mm | |
| Series | 680M | |
| Minimum Operating Temperature | -55.0°C | |
| Maximum Operating Temperature | +155°C | |
Select all | ||
|---|---|---|
Brand Norcomp | ||
Number of Contacts 3 | ||
Gender Female | ||
Body Orientation Straight | ||
Mounting Type Panel Mount | ||
Pitch 6.85mm | ||
Termination Method Solder | ||
Current Rating 40.0A | ||
Mixed Contact Layout 3W3 | ||
Housing Material Steel | ||
Voltage Rating 1.0 kV | ||
Length 39.2mm | ||
Width 12.5mm | ||
Depth 10.9mm | ||
Contact Material Copper Alloy | ||
Contact Plating Gold Flash | ||
Dimensions 39.2 x 12.5 x 10.9mm | ||
Series 680M | ||
Minimum Operating Temperature -55.0°C | ||
Maximum Operating Temperature +155°C | ||
- COO (Country of Origin):
- TW
D-Sub Mixed Contact Connectors in 12 industry standard contact arrangements:
3W3 | 3W3K | 5W1 | 5W5 | 7W2 | 8W8 | 9W4 | 11W1 | 13W3 | 13W6 | 17W2 | 21W1 | 21WA4
Available with 20 or 40 amp power contacts, 5 amp signal.
Allows signal, high current & high voltage in one connector.
Contacts are pre-loaded into the insulato
Shell: Steel, nickel plated
Insulator: Glass-Filled Thermoplastic, Black
D-Sub Mixed Signal Contacts: Machined Copper Alloy, Full Gold Flash
D-Sub Mixed Power Contacts: Machined Copper Alloy, Full Gold Flash
3W3 | 3W3K | 5W1 | 5W5 | 7W2 | 8W8 | 9W4 | 11W1 | 13W3 | 13W6 | 17W2 | 21W1 | 21WA4
Available with 20 or 40 amp power contacts, 5 amp signal.
Allows signal, high current & high voltage in one connector.
Contacts are pre-loaded into the insulato
Shell: Steel, nickel plated
Insulator: Glass-Filled Thermoplastic, Black
D-Sub Mixed Signal Contacts: Machined Copper Alloy, Full Gold Flash
D-Sub Mixed Power Contacts: Machined Copper Alloy, Full Gold Flash
