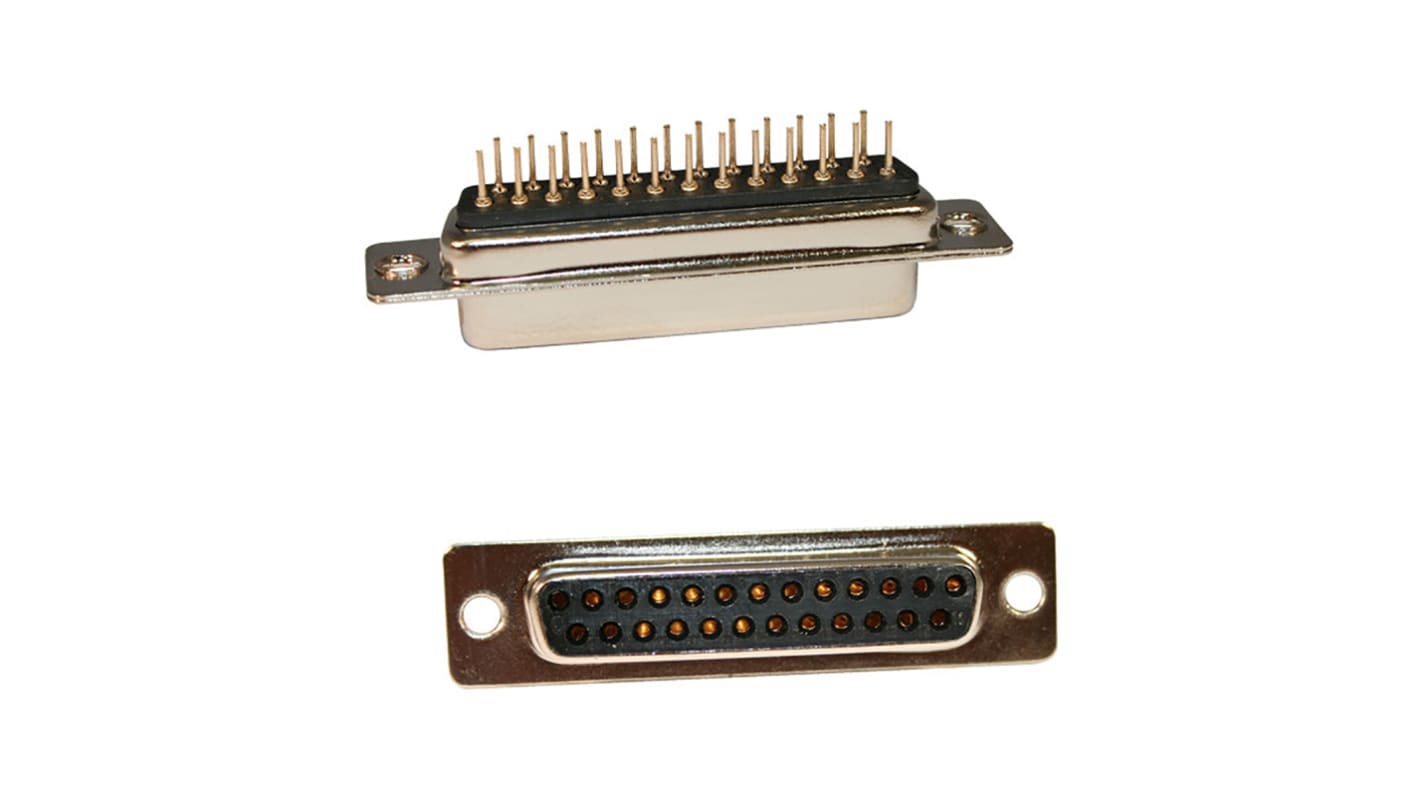

Norcomp 171 25 Way Through Hole D-sub Connector Socket, 2.77mm Pitch, with 4-40 Spacer/Board Lock
- RS Stock No.:
- 174-8458
- Mfr. Part No.:
- 171-025-213R911
- Brand:
- Norcomp
Subtotal (1 tray of 50 units)*
£134.95
(exc. VAT)
£161.95
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 250 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 50 + | £2.699 | £134.95 |
*price indicative
- RS Stock No.:
- 174-8458
- Mfr. Part No.:
- 171-025-213R911
- Brand:
- Norcomp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norcomp | |
| Number of Contacts | 25 | |
| Gender | Female | |
| Body Orientation | Straight | |
| Mounting Type | Through Hole | |
| Pitch | 2.77mm | |
| D Connector Type | Standard D-Sub | |
| Mounting Hardware | 4-40 Spacer/Board Lock | |
| Termination Method | Solder | |
| D-Sub Shell Size | D | |
| Current Rating | 5.0A | |
| Housing Material | Steel | |
| Voltage Rating | 500.0 V | |
| Length | 53.0mm | |
| Width | 12.6mm | |
| Depth | 11.7mm | |
| Dimensions | 53 x 12.6 x 11.7mm | |
| Contact Material | Brass | |
| Series | 171 | |
| Contact Plating | Gold Flash | |
| Series Number | 171 | |
| Maximum Operating Temperature | +100°C | |
| Minimum Operating Temperature | -50.0°C | |
Select all | ||
|---|---|---|
Brand Norcomp | ||
Number of Contacts 25 | ||
Gender Female | ||
Body Orientation Straight | ||
Mounting Type Through Hole | ||
Pitch 2.77mm | ||
D Connector Type Standard D-Sub | ||
Mounting Hardware 4-40 Spacer/Board Lock | ||
Termination Method Solder | ||
D-Sub Shell Size D | ||
Current Rating 5.0A | ||
Housing Material Steel | ||
Voltage Rating 500.0 V | ||
Length 53.0mm | ||
Width 12.6mm | ||
Depth 11.7mm | ||
Dimensions 53 x 12.6 x 11.7mm | ||
Contact Material Brass | ||
Series 171 | ||
Contact Plating Gold Flash | ||
Series Number 171 | ||
Maximum Operating Temperature +100°C | ||
Minimum Operating Temperature -50.0°C | ||
- COO (Country of Origin):
- TW
Dip solder d-subs available in 5 industry sizes/positions
Standard Density (9 pin, 15 pin, 25 pin, 37 pin, 50 pin).
Low cost & high performance, non-removable stamped contacts.
Nickel shells have indents to provide grounding and additional retention.
Optional mounting hardware available.
Shell: Steel, nickel plated
Insulator: Glass-filled thermoplastic. (260°C process temp)
Stamped contacts:
Male pins - Brass | Female pins - Phosphor bronze
Plating: Gold flash on entire contact
Standard Density (9 pin, 15 pin, 25 pin, 37 pin, 50 pin).
Low cost & high performance, non-removable stamped contacts.
Nickel shells have indents to provide grounding and additional retention.
Optional mounting hardware available.
Shell: Steel, nickel plated
Insulator: Glass-filled thermoplastic. (260°C process temp)
Stamped contacts:
Male pins - Brass | Female pins - Phosphor bronze
Plating: Gold flash on entire contact
