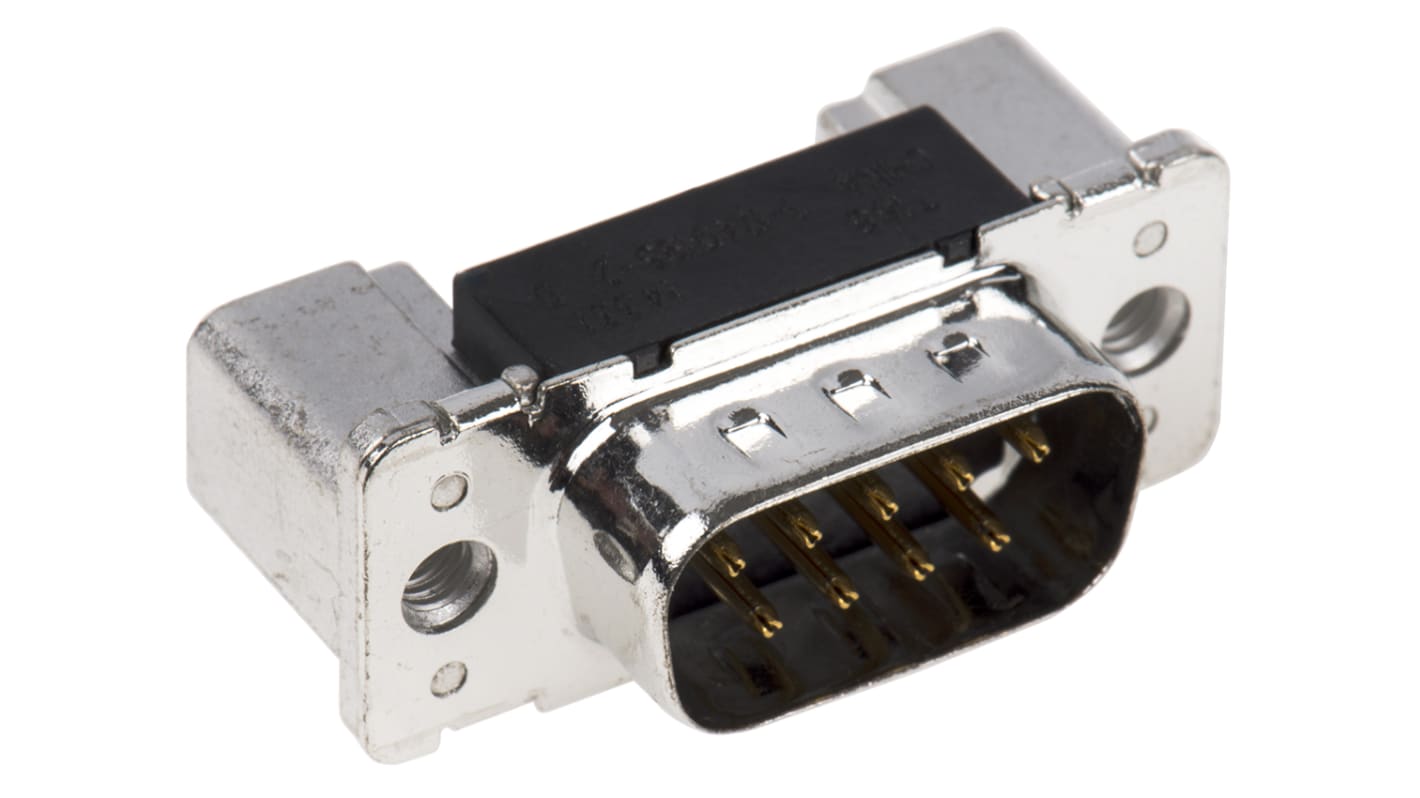

TE Connectivity Amplimite HDP-20 9 Way Right Angle SMT D-sub Connector Plug, 2.74mm Pitch, with 4-40 UNC Threaded
- RS Stock No.:
- 164-9097
- Mfr. Part No.:
- 1-1740195-2
- Brand:
- TE Connectivity
- RS Stock No.:
- 164-9097
- Mfr. Part No.:
- 1-1740195-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 9 | |
| Gender | Male | |
| Body Orientation | Right Angle | |
| Mounting Type | Surface Mount | |
| Pitch | 2.74mm | |
| Termination Method | Solder | |
| Mounting Hardware | 4-40 UNC Threaded Inserts, Boardlocks | |
| Current Rating | 4.5A | |
| Housing Material | PCT | |
| Voltage Rating | 250.0 V | |
| Length | 30.8mm | |
| Width | 12.5mm | |
| Depth | 17.4mm | |
| Series | Amplimite HDP-20 | |
| Dimensions | 30.8 x 12.5 x 17.4mm | |
| Contact Plating | Gold over Nickel | |
| Contact Material | Copper Magnesium Alloy | |
| Minimum Operating Temperature | -55.0°C | |
| Maximum Operating Temperature | +105°C | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 9 | ||
Gender Male | ||
Body Orientation Right Angle | ||
Mounting Type Surface Mount | ||
Pitch 2.74mm | ||
Termination Method Solder | ||
Mounting Hardware 4-40 UNC Threaded Inserts, Boardlocks | ||
Current Rating 4.5A | ||
Housing Material PCT | ||
Voltage Rating 250.0 V | ||
Length 30.8mm | ||
Width 12.5mm | ||
Depth 17.4mm | ||
Series Amplimite HDP-20 | ||
Dimensions 30.8 x 12.5 x 17.4mm | ||
Contact Plating Gold over Nickel | ||
Contact Material Copper Magnesium Alloy | ||
Minimum Operating Temperature -55.0°C | ||
Maximum Operating Temperature +105°C | ||
- COO (Country of Origin):
- CN
Surface Mount PCB D-Sub
Key design features ensure efficient and reliable processing, to enable surface mounting for a wide range of applications. Available in 9 to 37 position plug and socket variants.
Controlled centre of gravity for secure positioning during processing
Fully pick and place capable without force for simplification of assembly
Large mounting bracket improves grounding and mechanical stability
0.80μm gold plated contacts
Fully pick and place capable without force for simplification of assembly
Large mounting bracket improves grounding and mechanical stability
0.80μm gold plated contacts
