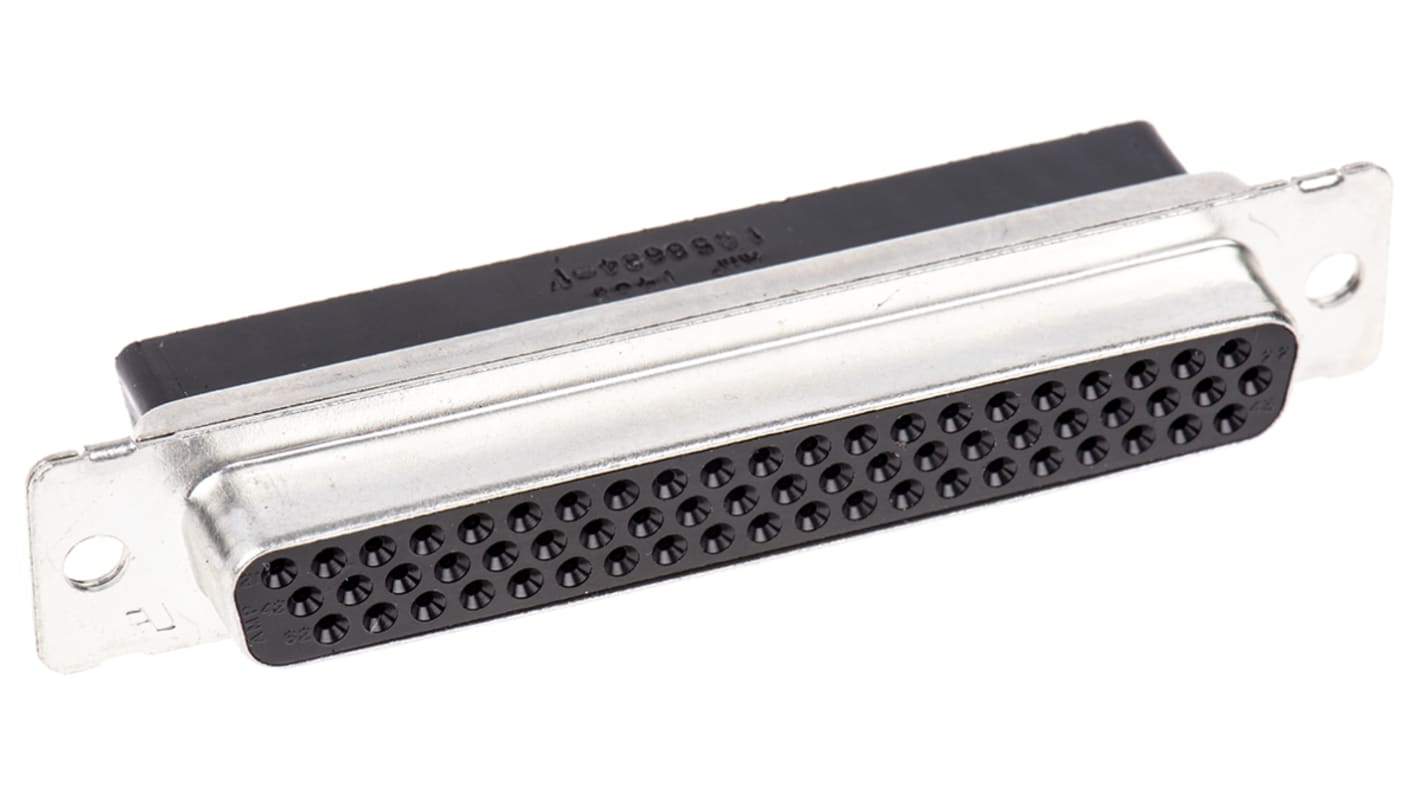

TE Connectivity Amplimite HDP-22 62 Way Cable Mount D-sub Connector Socket
- RS Stock No.:
- 164-1529
- Mfr. Part No.:
- 1658684-1
- Brand:
- TE Connectivity
Available to back order for despatch 30/07/2024
Added
Price Each (In a Bag of 600)
£5.65
(exc. VAT)
£6.78
(inc. VAT)
| Units | Per unit | Per Bag* |
| 600 - 600 | £5.65 | £3,390.00 |
| 1200 + | £5.343 | £3,205.80 |
| *price indicative | ||
- RS Stock No.:
- 164-1529
- Mfr. Part No.:
- 1658684-1
- Brand:
- TE Connectivity
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
AMPLIMITE D-Sub Cable Connector, HDP-22 Series, Crimp Snap-In Contact
TE Connectivity's range of crimp d-sub connectors boast tin plated steels shells with a 94V0- black thermoplastic inserts. These AMPLIMITE are high density crimp connectors, approximately 65% higher density then HD-20 connectors. These connectors will mate with any size 22 d-sub connector that dimensionally complies with MIL-C-C24303.
• 65% higher density than HD-20 connectors
• Space saving
• 94V0 black thermoplastic insert
• Tin plated, steel shell
• Space saving
• 94V0 black thermoplastic insert
• Tin plated, steel shell
Need crimp contacts?
718-1207 & 680-9692
PRO-CRIMPER III – 314-8032
Approvals
UL listed, CSA certified
TE Connectivity Amplimite HDP22/HD22
High density connectors for use where a higher number of contacts are required in a given body size. e.g. standard 15 pin D connector shell contains 26 contacts.
Suitable for military, industrial or commercial applications and computer interfacing etc.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 62 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| D Connector Type | High Density D-Sub |
| Termination Method | Crimp |
| Housing Material | Steel |
| Voltage Rating | 250.0 V |
| Length | 69.31mm |
| Width | 12.54mm |
| Depth | 17.9mm |
| Series | Amplimite HDP-22 |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -55.0°C |
