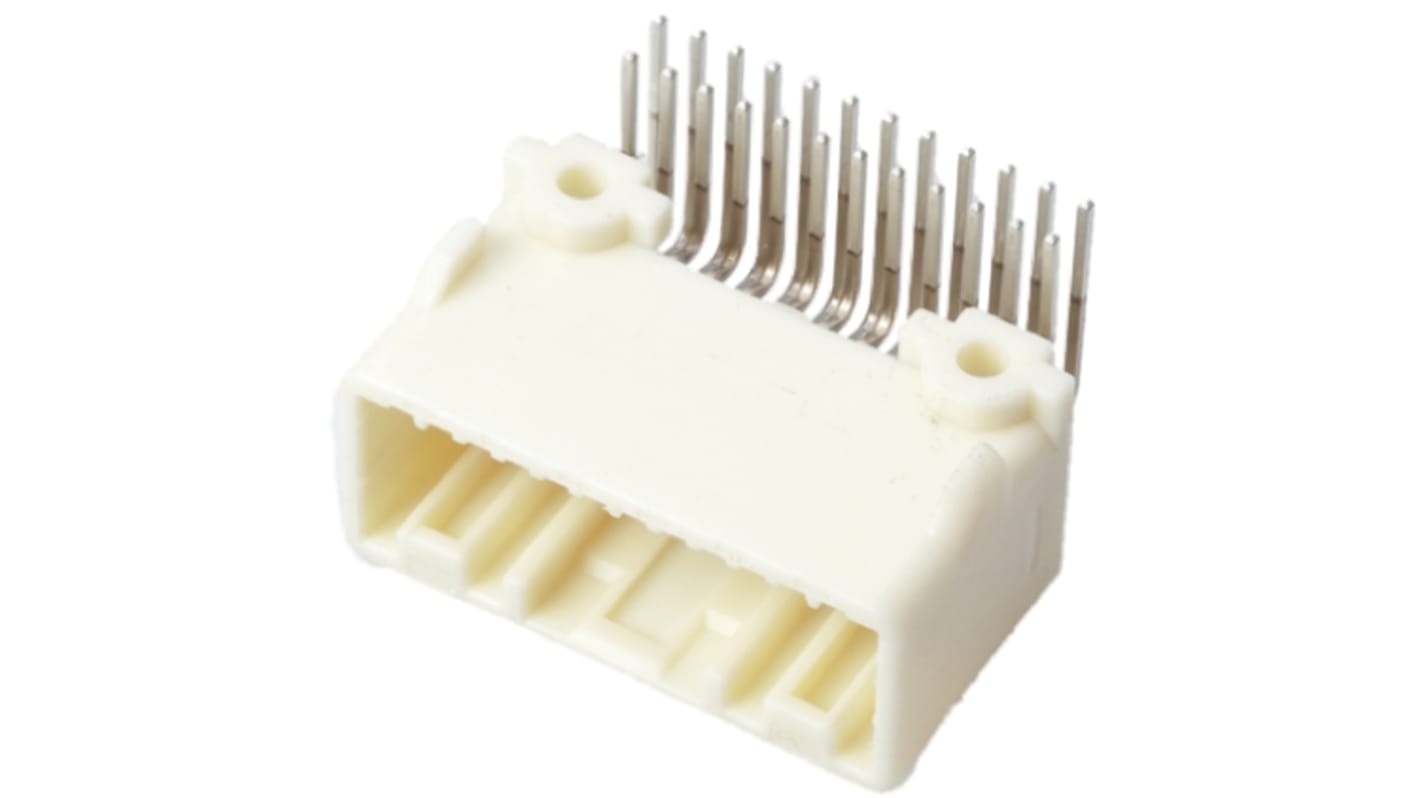

TE Connectivity 025 24 Way Right Angle Through Hole D-sub Connector Socket, 2.2mm Pitch
- RS Stock No.:
- 161-4974
- Mfr. Part No.:
- 1-1318853-3
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 161-4974
- Mfr. Part No.:
- 1-1318853-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 24 | |
| Gender | Female | |
| Body Orientation | Right Angle | |
| Mounting Type | Through Hole | |
| Pitch | 2.2mm | |
| Termination Method | Solder | |
| Housing Material | PPS | |
| Length | 31.8mm | |
| Width | 15.5mm | |
| Depth | 47.47mm | |
| Contact Plating | Gold | |
| Contact Material | Brass | |
| Dimensions | 31.8 x 15.5 x 47.47mm | |
| Series | 025 | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 24 | ||
Gender Female | ||
Body Orientation Right Angle | ||
Mounting Type Through Hole | ||
Pitch 2.2mm | ||
Termination Method Solder | ||
Housing Material PPS | ||
Length 31.8mm | ||
Width 15.5mm | ||
Depth 47.47mm | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Dimensions 31.8 x 15.5 x 47.47mm | ||
Series 025 | ||
- COO (Country of Origin):
- JP
TE Connectivity TH 025 Series PCB Header Connectors
TH 025 series PCB header connectors with a compact design and a high density 2.2 mm pitch. These TH 025 automotive header connectors feature board fixation screws for a secure connection to the PCB. The connector housings are made from either PBT or SPS and are colour coded for ease of identification. These TH 025 automotive header connectors are available with right angle or vertical mounting configurations
Features and Benefits
• Compact design with 2.2 mm high density pitch
• Board fixation screws for secure connection to PCB
• Colour coded housings for ease of identification
• Board fixation screws for secure connection to PCB
• Colour coded housings for ease of identification
Applications
These TH 025 series automotive header connectors are for use in automotive safety security systems, convenience, driver information and body and chassis systems. Applications include mirrors, multimedia applications, display screens, airbag ECU and safety applications, switches, body controller management and dashboard applications.
TE Connectivity TH 025 Series Automotive Connectors
TH 025 series connectors designed for use in the automotive industry to provide high performance, high density connections. The compact design and small 2.2 mm pitch of these TH 025 connectors allows high density connections to be made in limited space applications such as advanced electronic automotive control systems. The contact design of the TH 025 connector series is resistant to fretting corrosion with a low contact force allowing a low connector mating force. The TH 025 series connector range is suitable for a range of wire to wire, wire to board and ECU applications. The series consists of PCB headers, receptacle housings, tab housings and contacts
