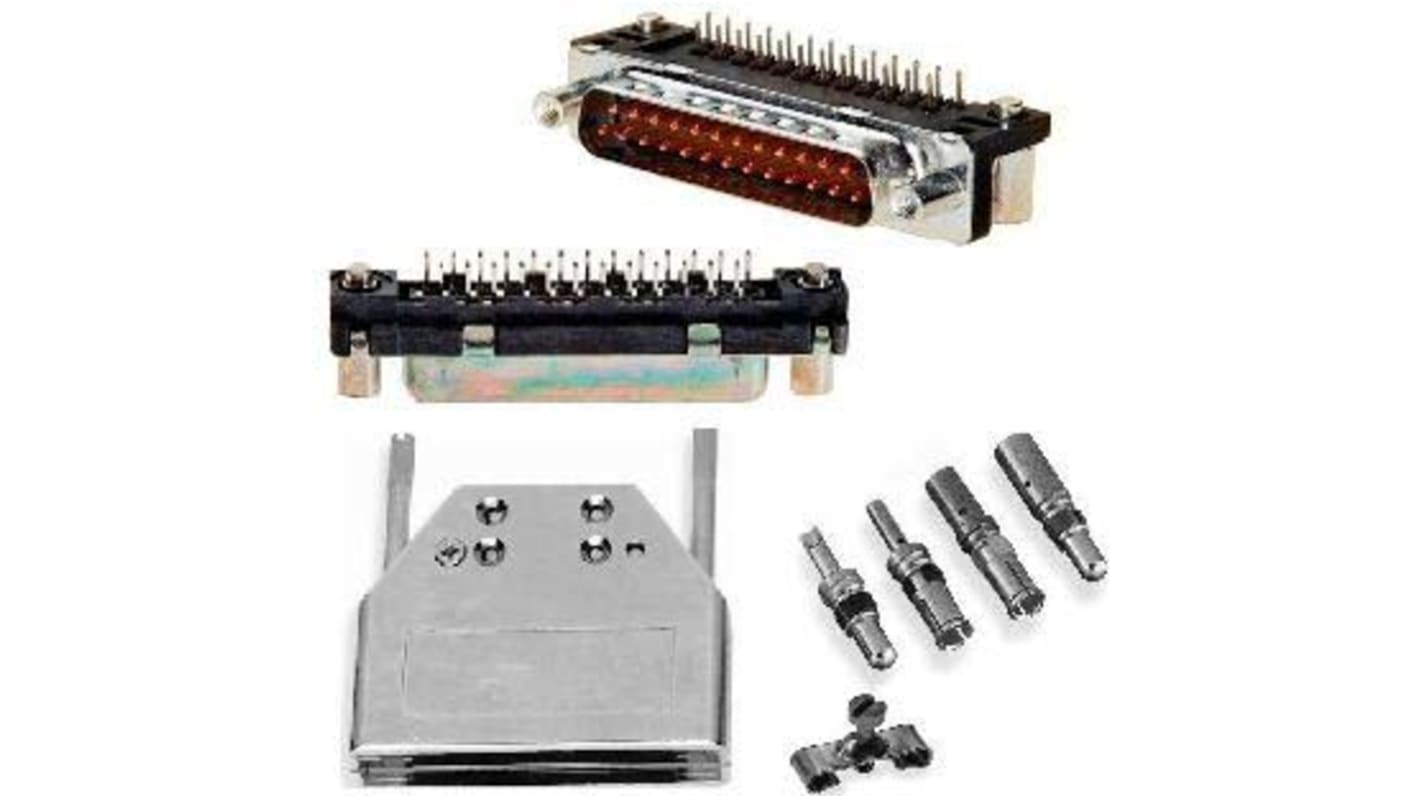

Amphenol Communications Solutions DM 25 Way Plug-In Mount D-sub Connector Socket, 2.74mm Pitch, with Screw
- RS Stock No.:
- 137-2525
- Mfr. Part No.:
- DBM25S300
- Brand:
- Amphenol Communications Solutions
Subtotal (1 tray of 20 units)*
£195.72
(exc. VAT)
£234.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship
- Plus 999,999,960 unit(s) shipping from 09 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 20 + | £9.786 | £195.72 |
*price indicative
- RS Stock No.:
- 137-2525
- Mfr. Part No.:
- DBM25S300
- Brand:
- Amphenol Communications Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Communications Solutions | |
| Number of Contacts | 25 | |
| Gender | Female | |
| Body Orientation | Straight | |
| Mounting Type | Plug-In Mount | |
| Pitch | 2.74mm | |
| D Connector Type | Standard D-Sub | |
| Mounting Hardware | Screw | |
| D-Sub Shell Size | B | |
| Termination Method | Solder | |
| Current Rating | 7.5A | |
| Mixed Contact Layout | 25W2 | |
| Housing Material | Thermoplastic | |
| Voltage Rating | 1.0 kV | |
| Length | 38.76mm | |
| Width | 12.55mm | |
| Depth | 11.6mm | |
| Contact Material | Phosphor Bronze | |
| Series | DM | |
| Dimensions | 38.76 x 12.55 x 11.60mm | |
| Contact Plating | Gold over Nickel | |
| Minimum Operating Temperature | -55.0°C | |
| Maximum Operating Temperature | +125°C | |
Select all | ||
|---|---|---|
Brand Amphenol Communications Solutions | ||
Number of Contacts 25 | ||
Gender Female | ||
Body Orientation Straight | ||
Mounting Type Plug-In Mount | ||
Pitch 2.74mm | ||
D Connector Type Standard D-Sub | ||
Mounting Hardware Screw | ||
D-Sub Shell Size B | ||
Termination Method Solder | ||
Current Rating 7.5A | ||
Mixed Contact Layout 25W2 | ||
Housing Material Thermoplastic | ||
Voltage Rating 1.0 kV | ||
Length 38.76mm | ||
Width 12.55mm | ||
Depth 11.6mm | ||
Contact Material Phosphor Bronze | ||
Series DM | ||
Dimensions 38.76 x 12.55 x 11.60mm | ||
Contact Plating Gold over Nickel | ||
Minimum Operating Temperature -55.0°C | ||
Maximum Operating Temperature +125°C | ||
- COO (Country of Origin):
- IN
The Amphenol ICC D-sub connector plug is DM series which has 2. 74mm of pitch with 25 way cable mount through hole.
Termination Method: Solder
Gender: Female
Shell Size: B
Voltage Rating: 1.0 kV
Gender: Female
Shell Size: B
Voltage Rating: 1.0 kV
