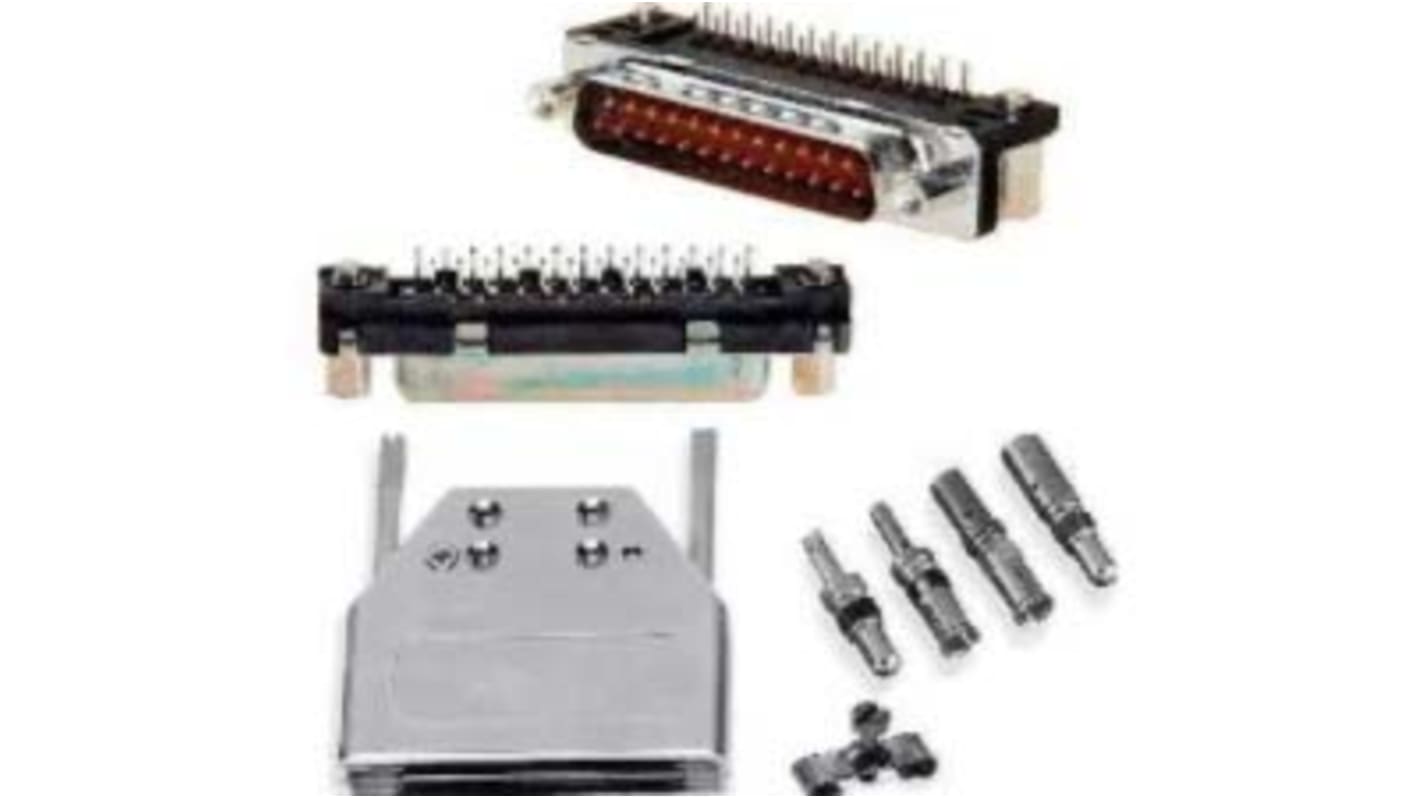

Amphenol Communications Solutions ID 15 Way Right Angle Plug-In Mount D-sub Connector Socket, 2.74mm Pitch, with Screw
- RS Stock No.:
- 137-2500
- Mfr. Part No.:
- ID15S33E4GX00LF
- Brand:
- Amphenol Communications Solutions
Subtotal (1 pack of 100 units)*
£104.10
(exc. VAT)
£124.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 700 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
100 + | £1.041 | £104.10 |
*price indicative
- RS Stock No.:
- 137-2500
- Mfr. Part No.:
- ID15S33E4GX00LF
- Brand:
- Amphenol Communications Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Amphenol Communications Solutions | |
Number of Contacts | 15 | |
Gender | Female | |
Body Orientation | Right Angle | |
Mounting Type | Plug-In Mount | |
Pitch | 2.74mm | |
D Connector Type | Standard D-Sub | |
Termination Method | Solder | |
Mounting Hardware | Screw | |
Current Rating | 5.0A | |
Mixed Contact Layout | 15W2 | |
Housing Material | Polyester | |
Voltage Rating | 300.0 V | |
Length | 39.14mm | |
Width | 12.58mm | |
Depth | 18.5mm | |
Series | ID | |
Contact Material | Copper Alloy | |
Dimensions | 39.14 x 12.58 x 18.5mm | |
Contact Plating | Gold, Nickel, Tin | |
Maximum Operating Temperature | +125°C | |
Minimum Operating Temperature | -55.0°C | |
Select all | ||
---|---|---|
Brand Amphenol Communications Solutions | ||
Number of Contacts 15 | ||
Gender Female | ||
Body Orientation Right Angle | ||
Mounting Type Plug-In Mount | ||
Pitch 2.74mm | ||
D Connector Type Standard D-Sub | ||
Termination Method Solder | ||
Mounting Hardware Screw | ||
Current Rating 5.0A | ||
Mixed Contact Layout 15W2 | ||
Housing Material Polyester | ||
Voltage Rating 300.0 V | ||
Length 39.14mm | ||
Width 12.58mm | ||
Depth 18.5mm | ||
Series ID | ||
Contact Material Copper Alloy | ||
Dimensions 39.14 x 12.58 x 18.5mm | ||
Contact Plating Gold, Nickel, Tin | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55.0°C | ||
- COO (Country of Origin):
- IN
FCIs D-Subminiature (D-Sub) connectors are part of an industry standard for applications requiring robust and reliable connectors. These proven D-Sub connectors are one of the most popular Input /Output interconnects, addressing a wide variety of applications in telecommunications, data, consumer, industrial & instrumentation, military and medical.
Standard D type is a basic I/O connector
D-shaped design with 2 shells and 2 housings
Meets DIN 41652 and MIL-C-24308 dimensional standards
9 to 50 positions available for contact layout
Stamped and formed contacts
Straight and angled terminations available
Different PCB mounting and panel mounting accessory options available
D-shaped design with 2 shells and 2 housings
Meets DIN 41652 and MIL-C-24308 dimensional standards
9 to 50 positions available for contact layout
Stamped and formed contacts
Straight and angled terminations available
Different PCB mounting and panel mounting accessory options available
