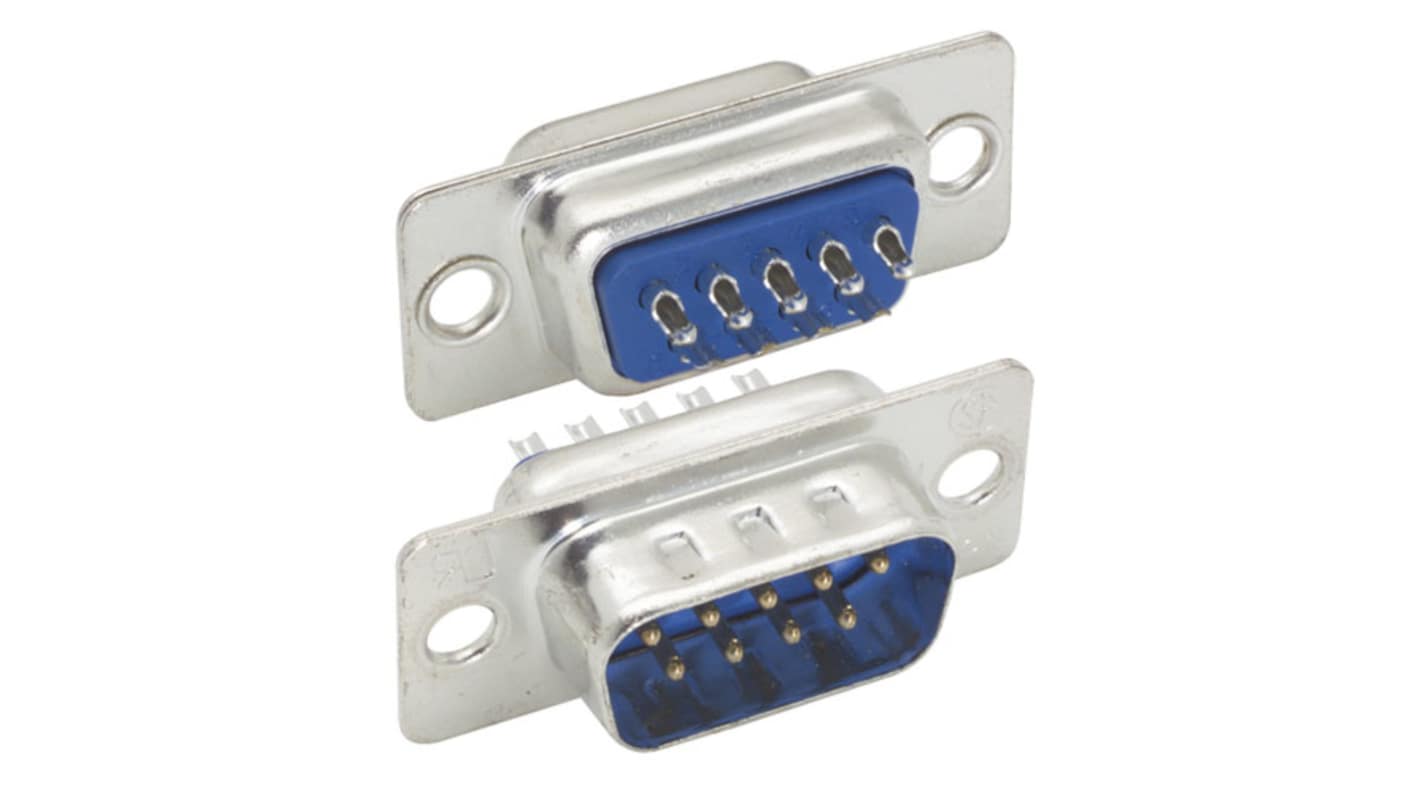

L-Com SD9 9 Way Straight 2.8 mm Pitch Screw D-Sub Connector, with Jack Screw Male
- RS Stock No.:
- 287-129
- Mfr. Part No.:
- SD9P
- Brand:
- L-Com
Subtotal (1 unit)*
£4.35
(exc. VAT)
£5.22
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 57 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £4.35 |
*price indicative
- RS Stock No.:
- 287-129
- Mfr. Part No.:
- SD9P
- Brand:
- L-Com
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | L-Com | |
| Product Type | D-Sub Connector | |
| Number of Contacts | 9 | |
| Orientation | Straight | |
| Mount Type | Screw | |
| Connector Gender | Male | |
| Connector Type D | D-Sub | |
| Mounting Hardware | Jack Screw | |
| D-Sub Shell Size | 1 | |
| Housing Material | Connector (Shell): Steel, Thermoplastic | |
| Voltage | 1000Vrms | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder Cup | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | CE2011/65/EU, RoHS | |
| Contact Plating | Gold Flash over Nickel | |
| Series | SD9 | |
| Contact Material | Copper Alloy | |
| Pitch | 2.8mm | |
| Select all | ||
|---|---|---|
Brand L-Com | ||
Product Type D-Sub Connector | ||
Number of Contacts 9 | ||
Orientation Straight | ||
Mount Type Screw | ||
Connector Gender Male | ||
Connector Type D D-Sub | ||
Mounting Hardware Jack Screw | ||
D-Sub Shell Size 1 | ||
Housing Material Connector (Shell): Steel, Thermoplastic | ||
Voltage 1000Vrms | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder Cup | ||
Contact Gender Male | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals CE2011/65/EU, RoHS | ||
Contact Plating Gold Flash over Nickel | ||
Series SD9 | ||
Contact Material Copper Alloy | ||
Pitch 2.8mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
The L-Com D-Subminiature connector embodies reliability and precision with its robust steel shell and thermoplastic insulator. Designed specifically for D-Subminiature configurations, it guarantees superior performance in various electrical applications. The nickel plated front shell and tin plated back shell enhance durability while ensuring excellent conductivity. Encased in user friendly packaging, the product caters to the needs of professionals looking for dependable connectivity solutions.
Utilises UL94V 0 rated thermoplastic for reliable insulation
Equipped with gold flash plating in the contact area for enhanced conductivity
Capable of withstanding dielectric voltages up to 1000 VAC rms
Measures overall cable lengths with precise tolerances for accuracy
