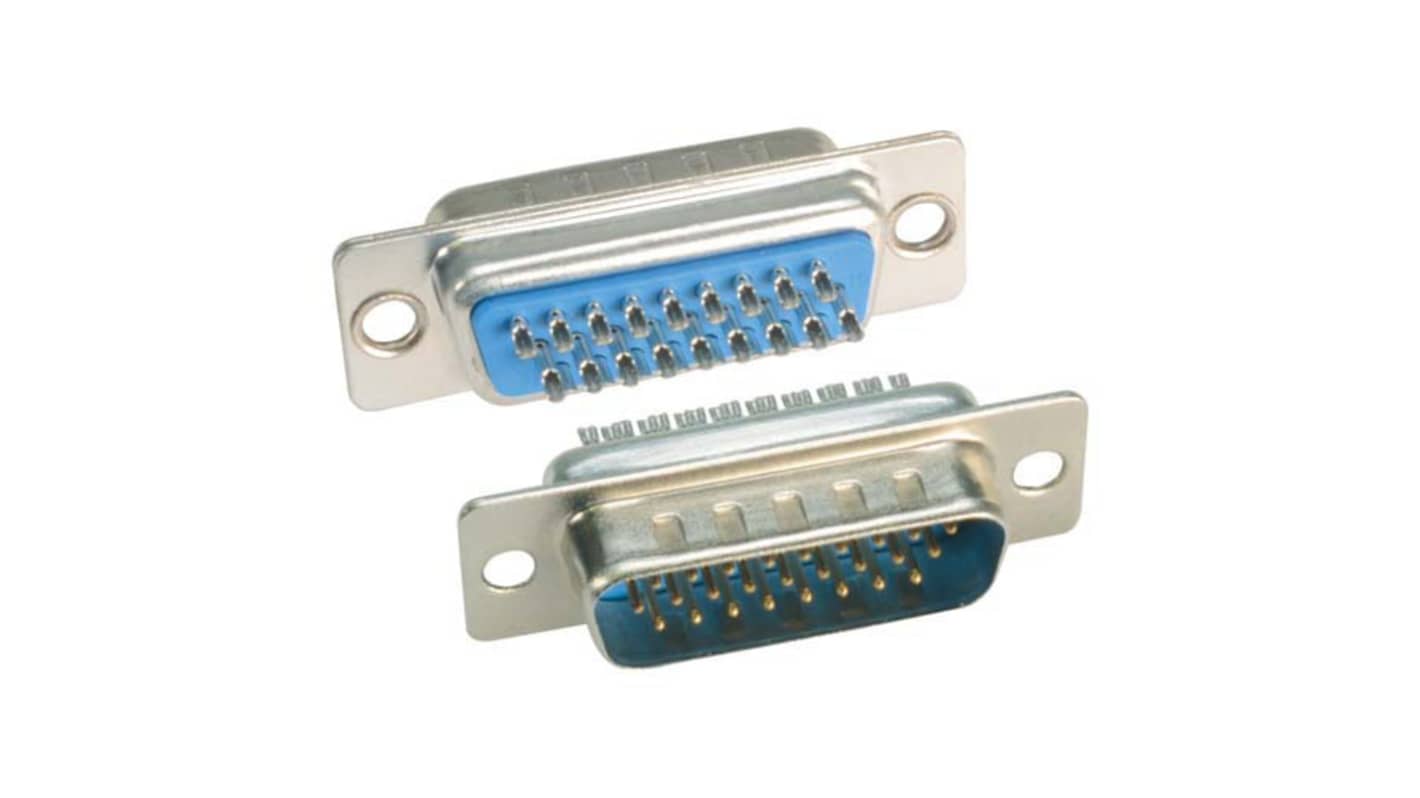

L-Com SDH 26 Way Straight 2.3 mm Pitch Screw D-Sub Connector, with Jack Screw Male
- RS Stock No.:
- 286-919
- Mfr. Part No.:
- SDH26P
- Brand:
- L-Com
Subtotal (1 unit)*
£10.32
(exc. VAT)
£12.38
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 5 unit(s) shipping from 27 July 2026
- Plus 10 unit(s) shipping from 04 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £10.32 |
*price indicative
- RS Stock No.:
- 286-919
- Mfr. Part No.:
- SDH26P
- Brand:
- L-Com
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | L-Com | |
| Product Type | D-Sub Connector | |
| Number of Contacts | 26 | |
| Current | 1A | |
| Orientation | Straight | |
| Mount Type | Screw | |
| Connector Gender | Male | |
| Connector Type D | D-Sub | |
| D-Sub Shell Size | 2 | |
| Mounting Hardware | Jack Screw | |
| Housing Material | Steel | |
| Voltage | 500V | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder Cup | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Male | |
| Standards/Approvals | CE2011/65/EU, RoHS | |
| Contact Plating | Gold Flash over Nickel | |
| Series | SDH | |
| Contact Material | Brass | |
| Pitch | 2.3mm | |
| Select all | ||
|---|---|---|
Brand L-Com | ||
Product Type D-Sub Connector | ||
Number of Contacts 26 | ||
Current 1A | ||
Orientation Straight | ||
Mount Type Screw | ||
Connector Gender Male | ||
Connector Type D D-Sub | ||
D-Sub Shell Size 2 | ||
Mounting Hardware Jack Screw | ||
Housing Material Steel | ||
Voltage 500V | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder Cup | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Male | ||
Standards/Approvals CE2011/65/EU, RoHS | ||
Contact Plating Gold Flash over Nickel | ||
Series SDH | ||
Contact Material Brass | ||
Pitch 2.3mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
The L-Com D-Subminiature connector is expertly crafted for reliable signalling in various applications. Designed with precision, the product boasts robust construction and a compact profile, ensuring easy integration into tight spaces. This connector is capable of withstanding demanding environments, thanks to its durable materials and advanced engineering.
Operating temperature range allows versatility in various environments
Designed for easy handling with consideration for dimensional tolerances
Provides precise electrical specifications to ensure reliable performance
Complies with RoHS directives promoting environmentally responsible use
