ITT Cannon MD-SM Straight Free Hanging D-Sub Connector, with Board Lock Female
- RS Stock No.:
- 283-429
- Mfr. Part No.:
- MDSM-9SC-Z11-VS1
- Brand:
- ITT Cannon
Bulk discount available
Subtotal (1 unit)*
£16.13
(exc. VAT)
£19.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 200 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £16.13 |
| 10 + | £14.84 |
*price indicative
- RS Stock No.:
- 283-429
- Mfr. Part No.:
- MDSM-9SC-Z11-VS1
- Brand:
- ITT Cannon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ITT Cannon | |
| Product Type | D-Sub Connector | |
| Current | 7.5A | |
| Orientation | Straight | |
| Mount Type | Free Hanging | |
| Connector Gender | Female | |
| Connector Type D | D-Sub | |
| Mounting Hardware | Board Lock | |
| Housing Material | Thermoplastic | |
| Voltage | 1250 V | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Female | |
| Standards/Approvals | UL 94V-0, RoHS, IEC-352-5, DIN 41652, CECC75-301-802 | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel | |
| Series | MD-SM | |
| Contact Size | 20-30 AWG | |
| Select all | ||
|---|---|---|
Brand ITT Cannon | ||
Product Type D-Sub Connector | ||
Current 7.5A | ||
Orientation Straight | ||
Mount Type Free Hanging | ||
Connector Gender Female | ||
Connector Type D D-Sub | ||
Mounting Hardware Board Lock | ||
Housing Material Thermoplastic | ||
Voltage 1250 V | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Female | ||
Standards/Approvals UL 94V-0, RoHS, IEC-352-5, DIN 41652, CECC75-301-802 | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel | ||
Series MD-SM | ||
Contact Size 20-30 AWG | ||

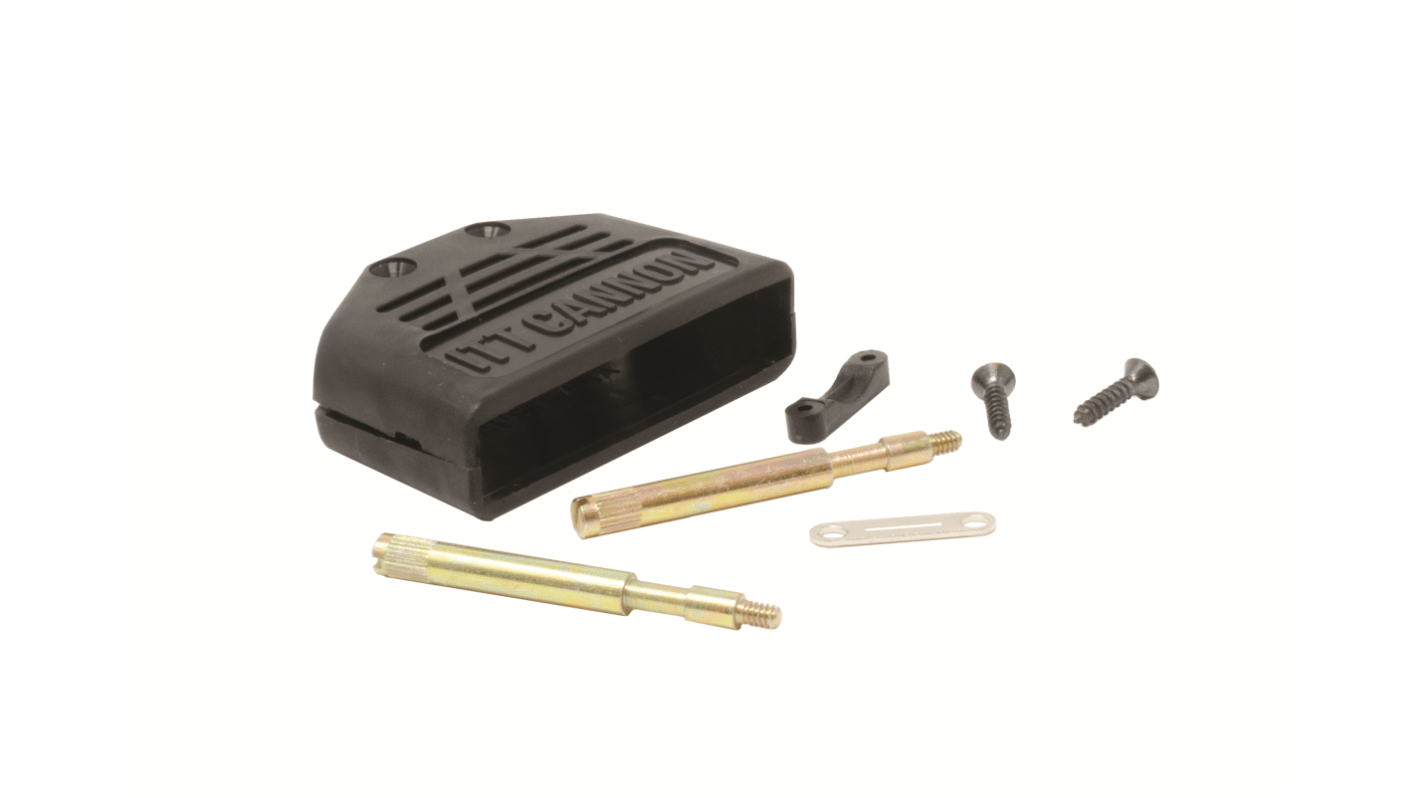

The ITT Cannon back shells are designed for use with D-Sub MIL Spec connectors with a straight mounting angle, featuring an insulated shell size A and a snap-together back shell type, the unit weight is 18.358 g, these back shells are compliant with RoHS and REACH SVHC standards.
Insulation material thermoplastic
Shell plating nickel
