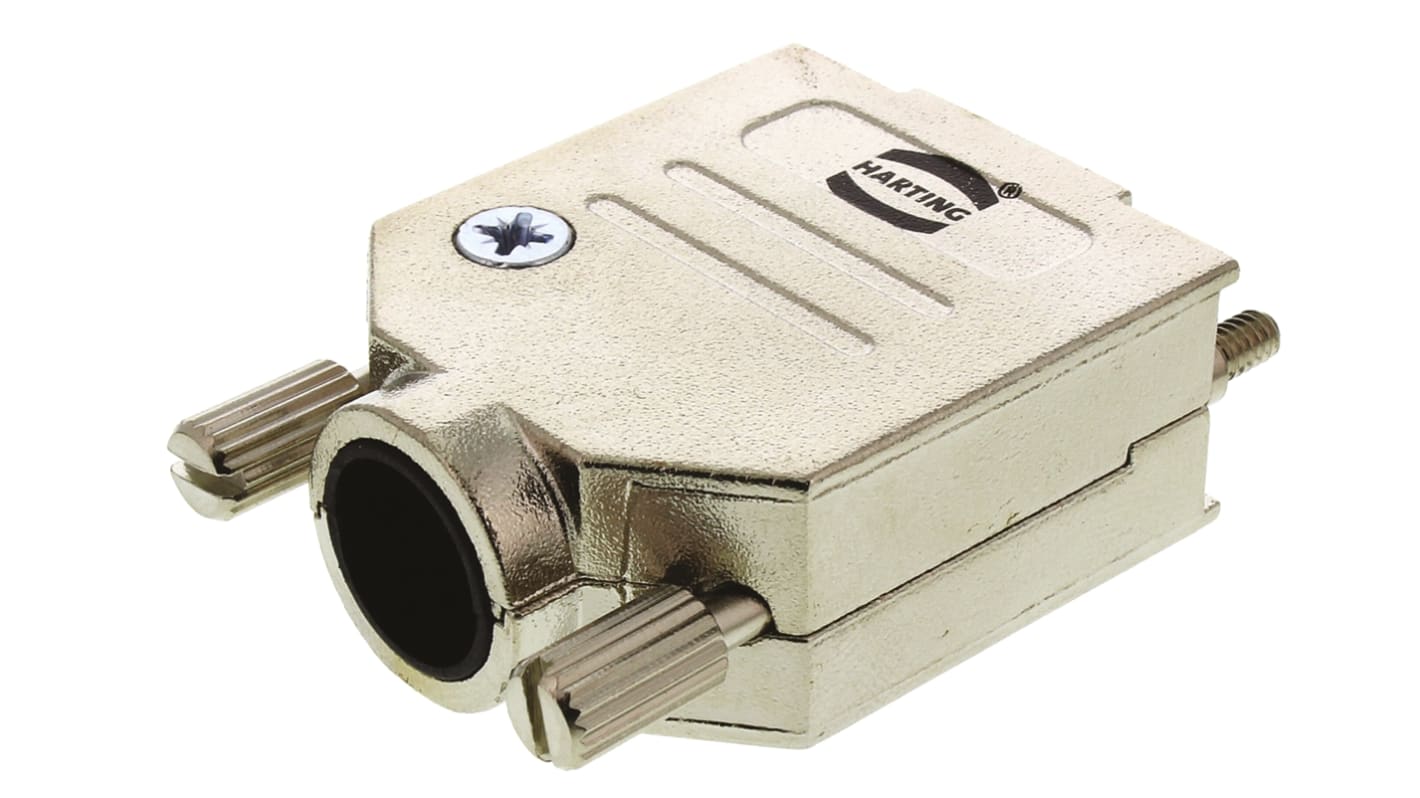

Harting, D-sub Metal D-sub Connector Backshell, 9 Way

  • RS Stock No. 692-5911
  • Mfr. Part No. 09670090343
  • Brand HARTING
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Harting Full Metal Top and Side Entry D-Sub Connector Hoods with Knurled Screws

A range of top and side entry d-sub connector hoods or backshells made from metal with knurled screw fastenings. these d-sub connector backshells are supplied with grommet set halves.
Part numbers 0967xxx0343 are backshells with a top cable entry and 4-40 UNC knurled screws
Part numbers 0967xxx0348 are backshells with a top cable entry and M3 knurled screws
Part numbers 0967xxx0333 are backshells with a side cable entry and 4-40 UNC knurled screws
Part numbers 0967xxx0336 are backshells with a side cable entry and M3 knurled screws
Stock number 873-9857 is a spare M3 knurled screw

With short screws 4-40 UNC
With metal cable clamp, screws and rubber bushing

Standards

IEC 60 807

Specifications
Attribute Value
Number of Contacts 9
Housing Material Metal
D-Sub Shell Size E
Body Orientation Straight
Series D-sub
938 In stock - FREE next working day delivery available
Price Each
£ 8.22
(exc. VAT)
£ 9.86
(inc. VAT)
Units
Per unit
1 - 9
£8.22
10 - 24
£6.84
25 - 49
£6.21
50 +
£5.91
Packaging Options:
