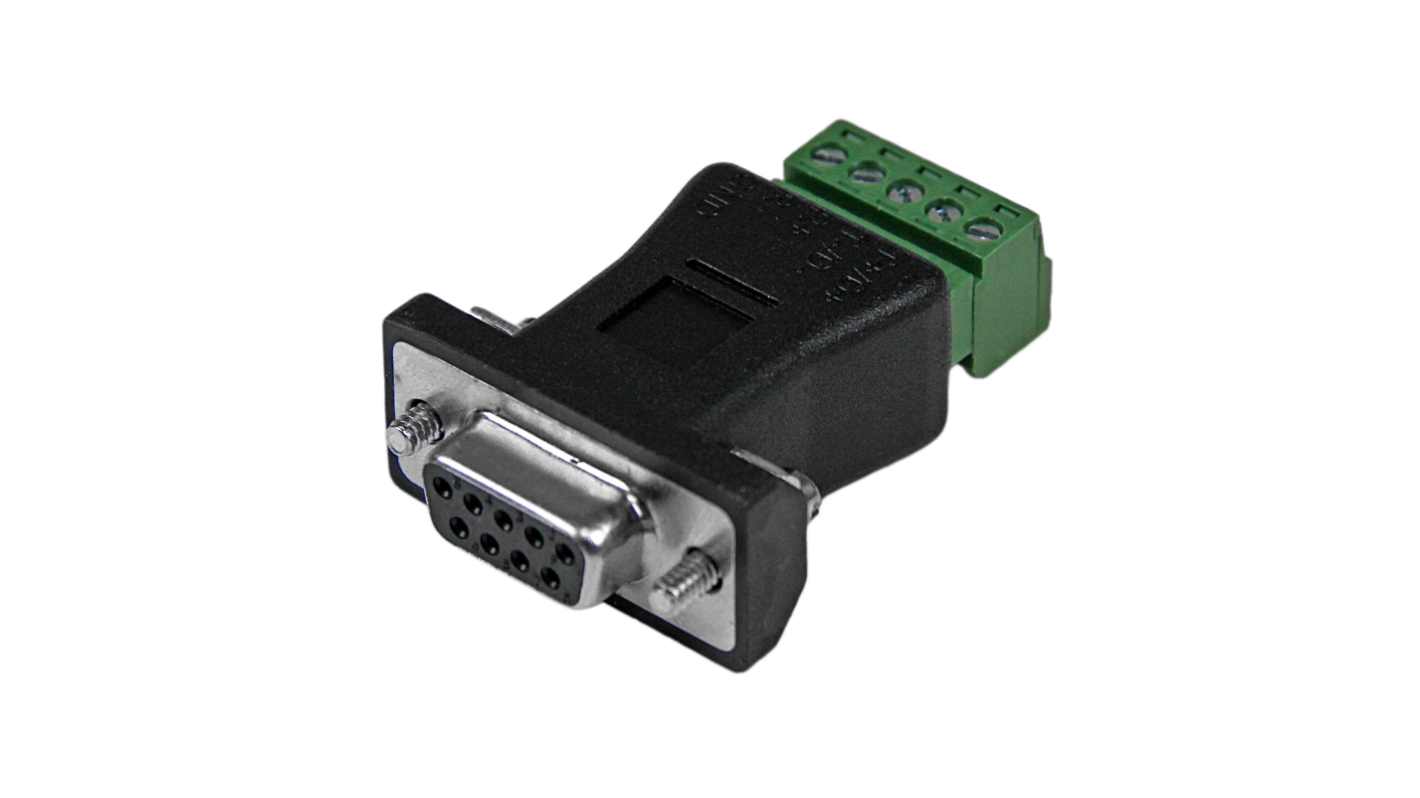

Easily convert an RS422 (recommended standard) or RS485 serial connector into a terminal block connector with this adapter from StarTech.com. It's perfect for control or diagnostic functions in manufacturing machines such as bar-code scanners, serial printers and process-control equipment. A wide operating temperature range of -40°C to +85°C makes it suitable to use in demanding environmental conditions.

Secure connectionThis adapter meets screw-type industrial wiring standards so holds its electrical connections firmly, even in harsh operating conditions where vibration is likely.
Robust and hard-wearingChoose this adapter for challenging environments, such as warehouses. It's suitable for extended connections and industrial wiring applications.

• Ideal for security devices such as card readers and cameras• Suitable to use in humid areas• Lightweight at only 23g for minimal system strain• Space-saving dimensions of 48.9 (L) x 34.2 (W) x 1.5mm (H) for improved packing efficiency

The Startech RS422 RS485 Serial DB9 to terminal block adapter converts an RS-422 or RS-485 DB 9 male serial connector to a terminal block connector. The 5-pin 3.5mm Terminal Block connector supports screw-type wiring to meet the standard for industrial wi

Supports four wire RS422, RS485, and two wire RS485 modes
Supports 3.5mm 5 pin terminal blocks
Signal Ground over Terminal blocks supported
Meets Screw-type industrial wiring standards

What is RS422 serial communication?RS422 serial communication is a high-speed, long-distance data transmission system. Each signal is carried by a pair of wires. At distances of up to 40 feet, the maximum data transfer rate is 100 kilobytes per second.

CE Certified
