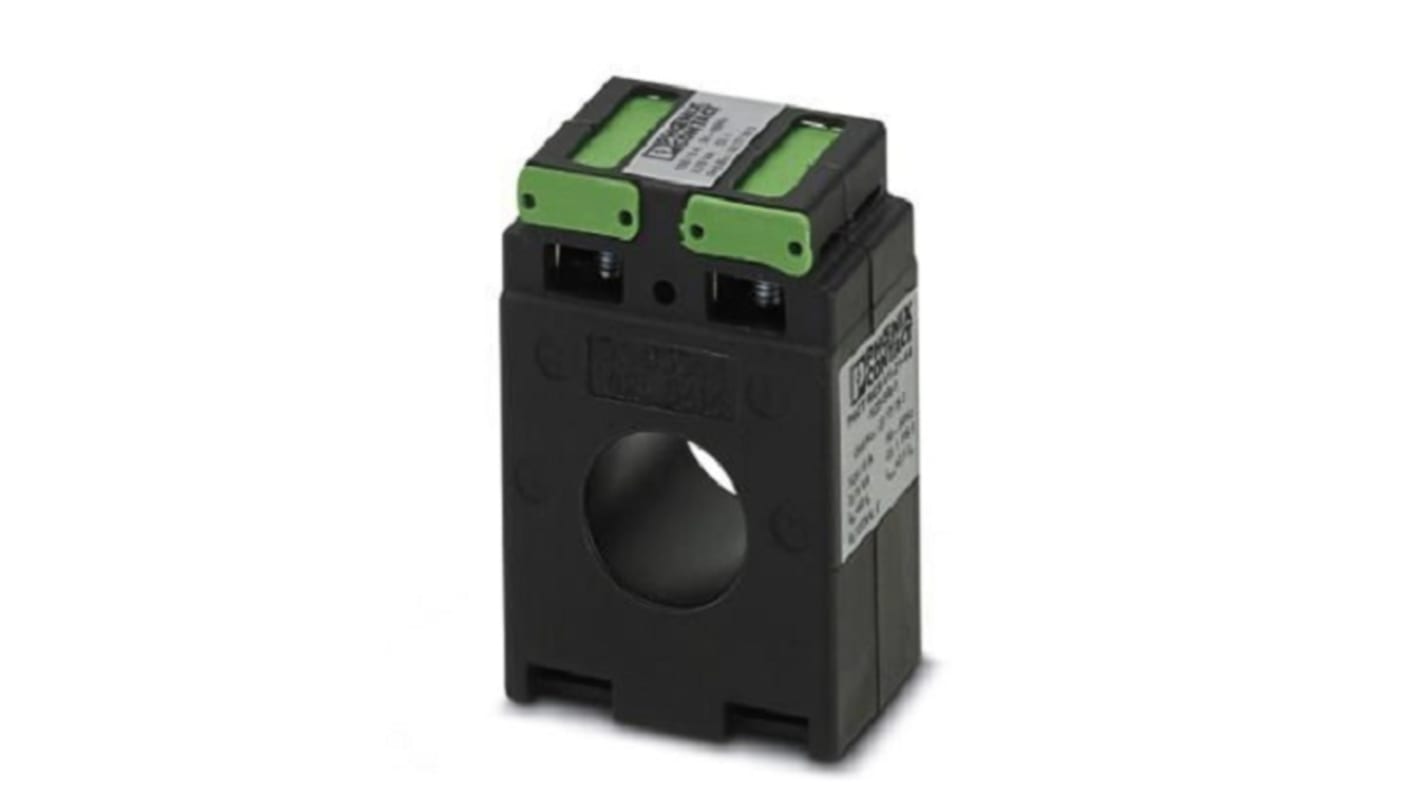

Phoenix Contact PACT Series Current Transformer 4 kA 3.75 VA 1000 V 21 mm Bore
- RS Stock No.:
- 252-5357
- Mfr. Part No.:
- 2277763
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£27.46
(exc. VAT)
£32.95
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £27.46 |
*price indicative
- RS Stock No.:
- 252-5357
- Mfr. Part No.:
- 2277763
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Current Transformer | |
| Series | PACT | |
| Power Rating | 3.75VA | |
| Secondary Current | 5 A | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -25°C | |
| Primary Current | 4kA | |
| Maximum Operating Temperature | 40°C | |
| Depth | 44mm | |
| Weight | 212.9g | |
| Standards/Approvals | USA / Canada, UL, EN 61869 | |
| Width | 30 mm | |
| Mount Type | DIN Rail | |
| Supply Voltage | 1000 V | |
| Bore Size | 21 mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Current Transformer | ||
Series PACT | ||
Power Rating 3.75VA | ||
Secondary Current 5 A | ||
Terminal Type Screw | ||
Minimum Operating Temperature -25°C | ||
Primary Current 4kA | ||
Maximum Operating Temperature 40°C | ||
Depth 44mm | ||
Weight 212.9g | ||
Standards/Approvals USA / Canada, UL, EN 61869 | ||
Width 30 mm | ||
Mount Type DIN Rail | ||
Supply Voltage 1000 V | ||
Bore Size 21 mm | ||
- COO (Country of Origin):
- DE
The phoenix bus-bar current transformer has tube rod converter type and it has screw connections.
DIN rail mounting
Ambient temperature -25 °C to 40 °C
