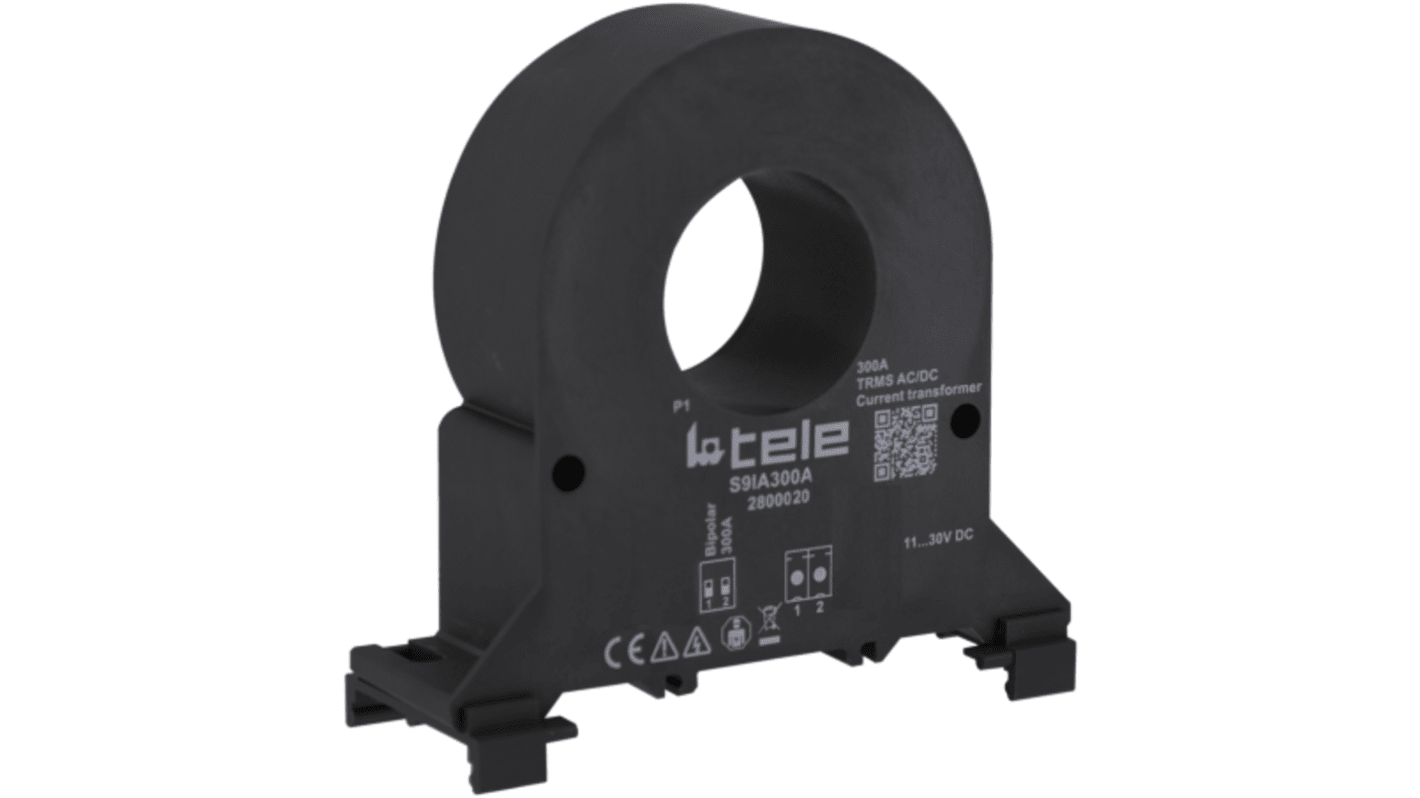

Tele SensAct Series Current Transformer 300 A 11 → 30 V dc
- RS Stock No.:
- 658-351
- Mfr. Part No.:
- S9IA300A
- Brand:
- Tele
Subtotal (1 unit)*
£80.43
(exc. VAT)
£96.52
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £80.43 |
*price indicative
- RS Stock No.:
- 658-351
- Mfr. Part No.:
- S9IA300A
- Brand:
- Tele
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Tele | |
| Product Type | Current Transformer | |
| Series | SensAct | |
| Primary Current | 300A | |
| Standards/Approvals | WEEE, TSCA, RoHS, REACH, CMRT, CE | |
| Maximum Operating Frequency | 2000Hz | |
| Mount Type | DIN Rail | |
| Supply Voltage | 11 → 30 V dc | |
| Minimum Operating Frequency | 20Hz | |
| Select all | ||
|---|---|---|
Brand Tele | ||
Product Type Current Transformer | ||
Series SensAct | ||
Primary Current 300A | ||
Standards/Approvals WEEE, TSCA, RoHS, REACH, CMRT, CE | ||
Maximum Operating Frequency 2000Hz | ||
Mount Type DIN Rail | ||
Supply Voltage 11 → 30 V dc | ||
Minimum Operating Frequency 20Hz | ||
- COO (Country of Origin):
- IT
The Tele AC/DC measuring circuit is designed for use with a supplied current transformer and provides accurate TRMS measurements up to 300A. It supports both DC and AC signals within a frequency range of 20 to 2000 Hz. The circuit is capable of bipolar measurement for bidirectional current monitoring. It features a standard 4 to 20 mA interface, allowing seamless integration into industrial monitoring and control systems.
Measuring range adjustable by DIP switch
DIN rail mounting
