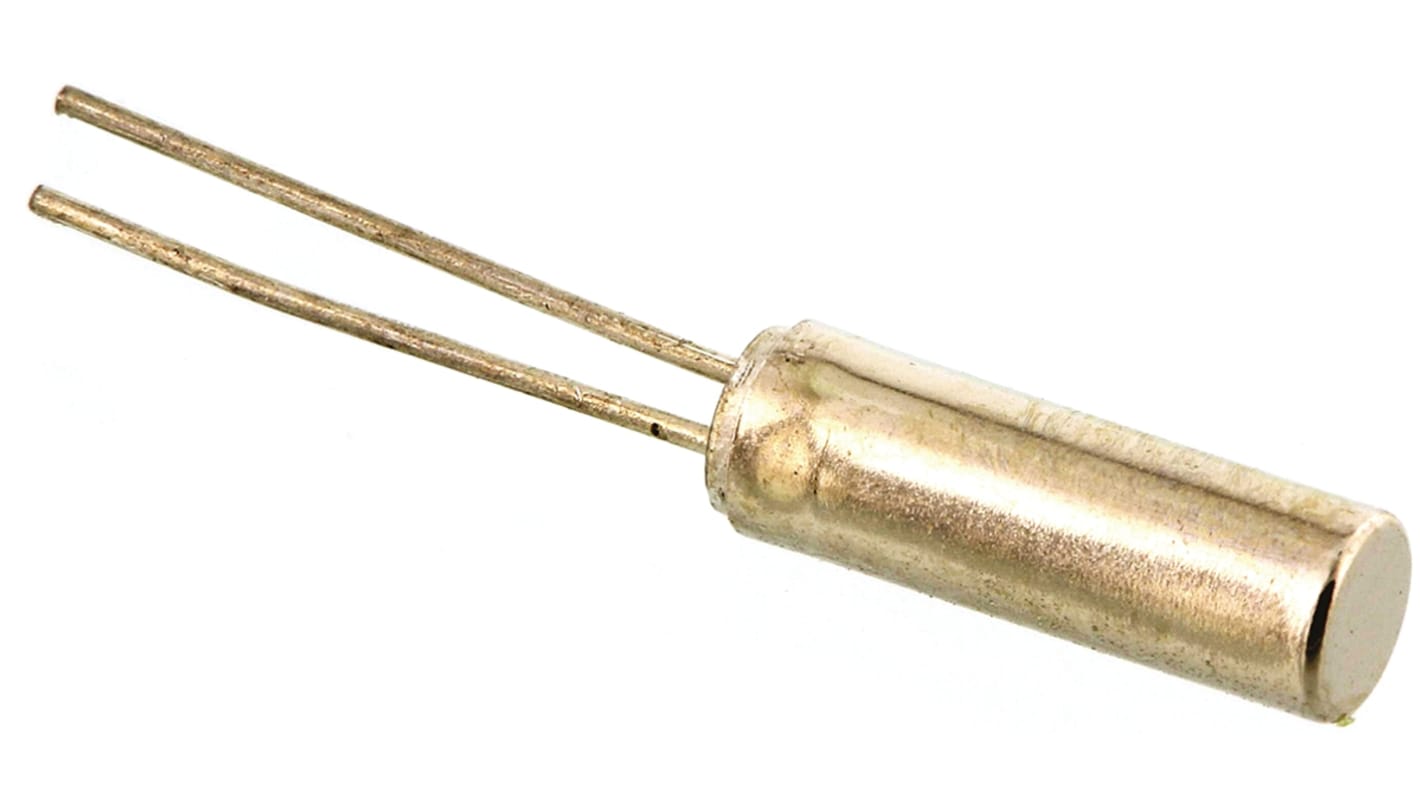

IQD 32.768kHz Crystal ±20ppm Cylindrical 2-Pin 6 x 2 x 2mm
- RS Stock No.:
- 478-9268
- Mfr. Part No.:
- LFXTAL002997 830002997B
- Brand:
- IQD
Stock information currently inaccessible
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Bag of 1000)
£117.00
(exc. VAT)
£140.40
(inc. VAT)
- RS Stock No.:
- 478-9268
- Mfr. Part No.:
- LFXTAL002997 830002997B
- Brand:
- IQD
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | IQD | |
| Standard Frequency | 32.768kHz | |
| Mounting Type | Through Hole | |
| Load Capacitance | 12.5pF | |
| Package Type | Cylindrical | |
| Pin Count | 2 | |
| Length | 2mm | |
| Width | 2mm | |
| Height | 6mm | |
| Dimensions | 6 x 2 x 2mm | |
| Frequency Tolerance | ±20ppm | |
| Series Resistance | 50kΩ | |
| Maximum Operating Temperature | 60°C | |
| Select all | ||
|---|---|---|
Brand IQD | ||
Standard Frequency 32.768kHz | ||
Mounting Type Through Hole | ||
Load Capacitance 12.5pF | ||
Package Type Cylindrical | ||
Pin Count 2 | ||
Length 2mm | ||
Width 2mm | ||
Height 6mm | ||
Dimensions 6 x 2 x 2mm | ||
Frequency Tolerance ±20ppm | ||
Series Resistance 50kΩ | ||
Maximum Operating Temperature 60°C | ||
The IQD Quartz Crystal designed for use in a variety of timekeeping and frequency control applications. It operates at a specific frequency making it Ideal for use in devices such as watches, clocks, and low-power embedded systems.
Frequency tolerance of ±20.00 ppm at 25°C
Load capacitance of 12.50 pF and shunt capacitance of 2.0 pF max
Operates within a temperature range of -40 to 85°C with an ageing rate of ±5 ppm per year at 25°C
