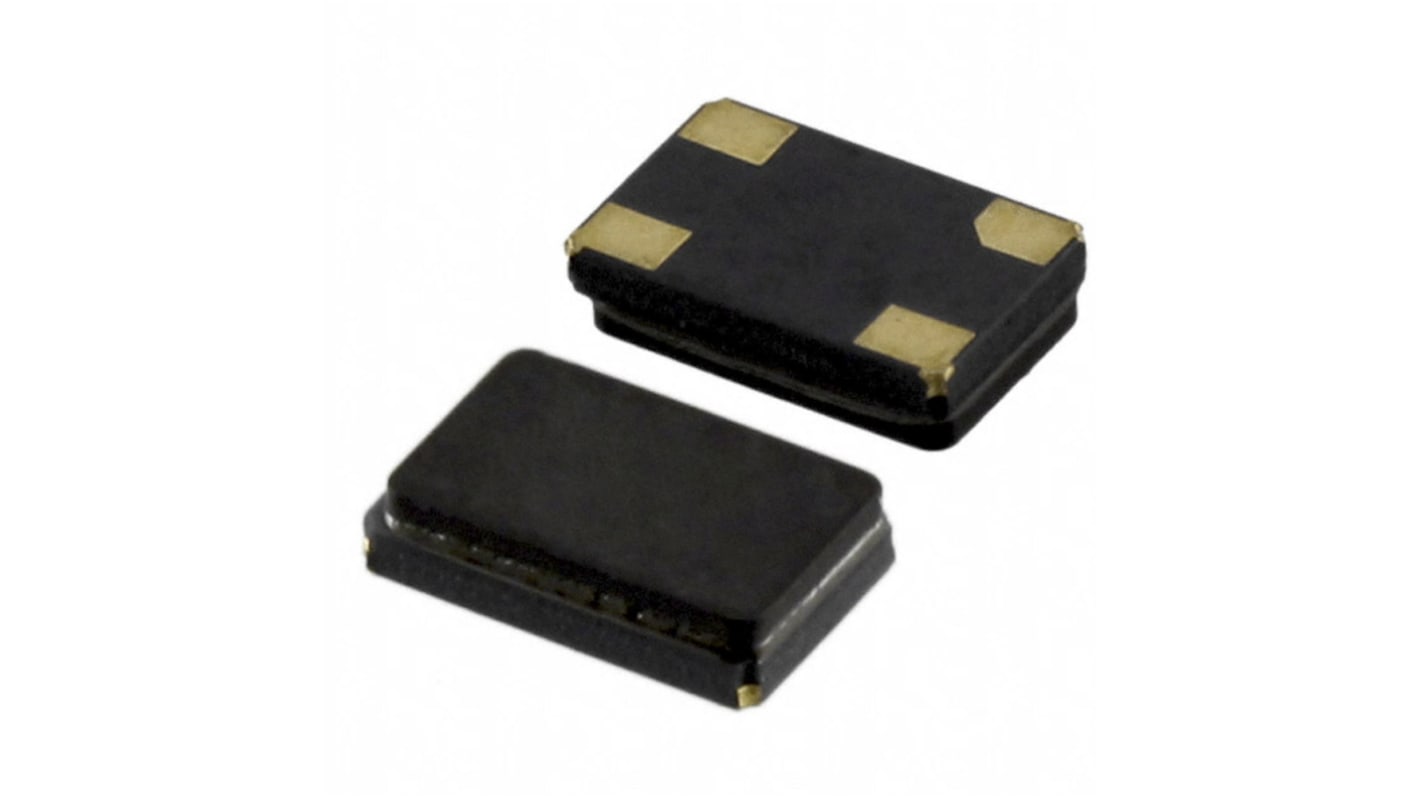

Abracon 16MHz Crystal ±30ppm 4-SMD, No Lead 5 x 3 x 1.3mm
- RS Stock No.:
- 171-0656
- Mfr. Part No.:
- ABM3C-16.000MHZ-D4Y-T
- Brand:
- Abracon
Discontinued
- RS Stock No.:
- 171-0656
- Mfr. Part No.:
- ABM3C-16.000MHZ-D4Y-T
- Brand:
- Abracon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Standard Frequency | 16MHz | |
| Mounting Type | Surface Mount | |
| Load Capacitance | 18pF | |
| Package Type | 4-SMD, No Lead | |
| Length | 5mm | |
| Width | 3.2mm | |
| Height | 1.3mm | |
| Dimensions | 5 x 3 x 1.3mm | |
| Frequency Tolerance | ±30ppm | |
| Frequency Stability | ±30ppm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Select all | ||
|---|---|---|
Brand Abracon | ||
Standard Frequency 16MHz | ||
Mounting Type Surface Mount | ||
Load Capacitance 18pF | ||
Package Type 4-SMD, No Lead | ||
Length 5mm | ||
Width 3.2mm | ||
Height 1.3mm | ||
Dimensions 5 x 3 x 1.3mm | ||
Frequency Tolerance ±30ppm | ||
Frequency Stability ±30ppm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- CN
ABM3C
Abracon ABM3C series SMD crystals are low in height so suitable for thin equipment. Tight tolerance and stability. New seam sealed package available (code "C")
Applications
High density applications
Pagers
PCMCIA and wireless applications
Communication and test equipment
Pagers
PCMCIA and wireless applications
Communication and test equipment
Crystals 5x3.2mm Ceramic case
