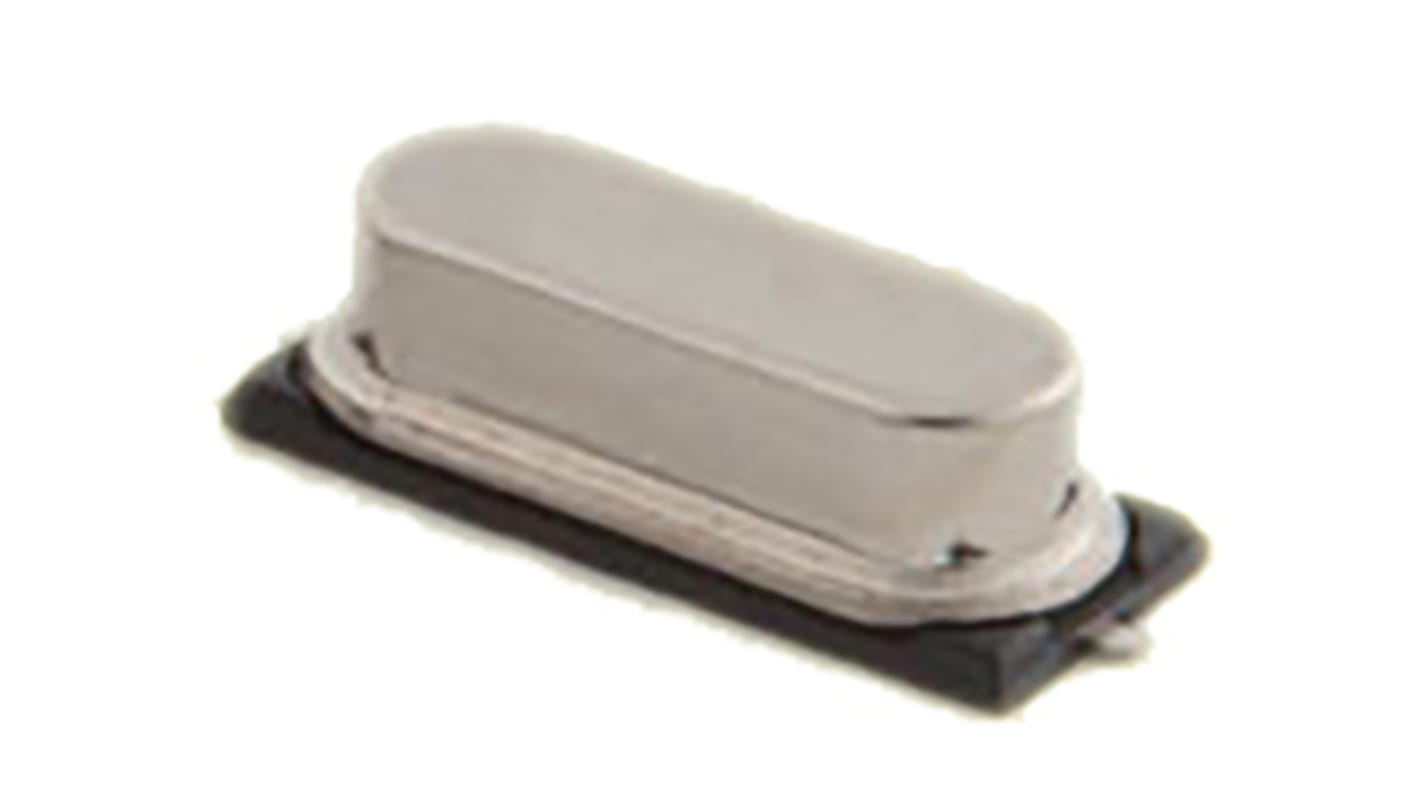

RS PRO 14.3182MHz Crystal ±30ppm 2-Pin 12 x 3.8 x 4.6mm
- RS Stock No.:
- 144-1065
- Brand:
- RS PRO
Available to back order for despatch when stock is available
Added
Price Each (In a Pack of 25)
£0.305
(exc. VAT)
£0.366
(inc. VAT)
| Units | Per unit | Per Pack* |
| 25 - 75 | £0.305 | £7.625 |
| 100 - 225 | £0.284 | £7.10 |
| 250 - 475 | £0.256 | £6.40 |
| 500 - 975 | £0.241 | £6.025 |
| 1000 + | £0.22 | £5.50 |
| *price indicative | ||
- RS Stock No.:
- 144-1065
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RS Pro AC Surface Mount Microprocessor Crytals, 13.5mm x 4.8mm
From RS Pro, these surface mount microprocessor crystal units provide a low profile solution. Extended temperature range options (-40 °C to +85 °C) are available.
Product Applications:
These crystal units make excellent clock signal generators for CPUs.
Specifications
Attribute | Value |
|---|---|
| Standard Frequency | 14.3182MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 20pF |
| Pin Count | 2 |
| Length | 12mm |
| Width | 3.8mm |
| Height | 4.6mm |
| Dimensions | 12 x 3.8 x 4.6mm |
| Frequency Tolerance | ±30ppm |
| Frequency Stability | ±30ppm |
| Series Resistance | 50Ω |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
