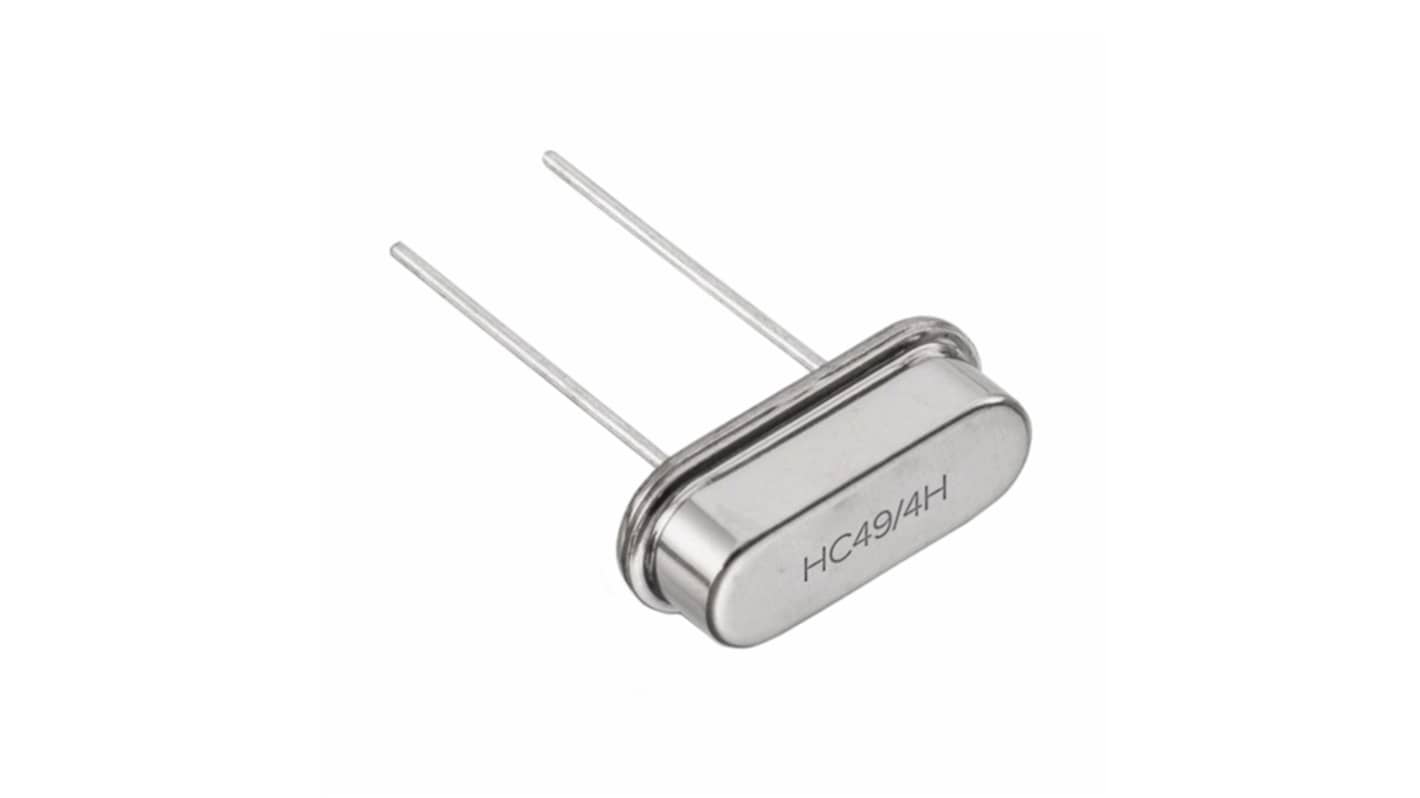

Wurth Elektronik 20 MHz Crystal ±30.00 ppm HC-49 2-Pin 4.7 mm 11.05 mm 4.1mm
- RS Stock No.:
- 197-645
- Mfr. Part No.:
- 830003185B
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 reel of 100 units)*
£27.00
(exc. VAT)
£32.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 400 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 100 - 400 | £0.27 | £27.00 |
| 500 - 900 | £0.256 | £25.60 |
| 1000 + | £0.245 | £24.50 |
*price indicative
- RS Stock No.:
- 197-645
- Mfr. Part No.:
- 830003185B
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Crystal | |
| Standard Frequency | 20MHz | |
| Mount Type | Through Hole | |
| Load Capacitance | 12pF | |
| Package Type | HC-49 | |
| Packaging | Bulk | |
| Pin Count | 2 | |
| Length | 11.05mm | |
| Width | 4.1mm | |
| Height | 4.7mm | |
| Frequency Tolerance | ±30.00 ppm | |
| Frequency Stability | ±50 ppm | |
| Minimum Operating Temperature | -20.00°C | |
| Maximum Operating Temperature | 70.00°C | |
| Series Resistance | 40Ω | |
| Standards/Approvals | RoHS, REACH | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Crystal | ||
Standard Frequency 20MHz | ||
Mount Type Through Hole | ||
Load Capacitance 12pF | ||
Package Type HC-49 | ||
Packaging Bulk | ||
Pin Count 2 | ||
Length 11.05mm | ||
Width 4.1mm | ||
Height 4.7mm | ||
Frequency Tolerance ±30.00 ppm | ||
Frequency Stability ±50 ppm | ||
Minimum Operating Temperature -20.00°C | ||
Maximum Operating Temperature 70.00°C | ||
Series Resistance 40Ω | ||
Standards/Approvals RoHS, REACH | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik Quartz Crystal is designed to deliver reliable performance in various electronic applications. Built within an industry standard leaded package, it ensures durability with resistance welded connections and hermetic sealing in an inert atmosphere. With a temperature operating range that accommodates diverse environmental conditions, this crystal oscillator is an Ideal choice for both commercial and industrial use.
Optimal frequency stability ensures reliable operation in demanding environments
Wide storage temperature range accommodates various usage scenarios
RoHS compliant which ensuring environmentally responsible manufacturing
Flexible bulk packing style supports efficient handling and distribution
Vibration and shock resistance enhance durability under extreme conditions
