Wurth Elektronik 14.7456 MHz Crystal ±20.00 ppm SMT 4-Pin 2.5 mm 3.2 mm 2.5mm
- RS Stock No.:
- 197-633
- Mfr. Part No.:
- 830055293
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 3000 units)*
£1,194.00
(exc. VAT)
£1,434.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.398 | £1,194.00 |
*price indicative
- RS Stock No.:
- 197-633
- Mfr. Part No.:
- 830055293
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Crystal | |
| Standard Frequency | 14.7456MHz | |
| Mount Type | Surface Mount | |
| Load Capacitance | 18pF | |
| Packaging | Tape & Reel | |
| Package Type | SMT | |
| Pin Count | 4 | |
| Length | 3.2mm | |
| Width | 2.5mm | |
| Height | 2.5mm | |
| Frequency Tolerance | ±20.00 ppm | |
| Minimum Operating Temperature | -40.00°C | |
| Frequency Stability | ±30 ppm | |
| Maximum Operating Temperature | 85.00°C | |
| Series Resistance | 120Ω | |
| Standards/Approvals | RoHS, REACH | |
| Series | CFPX-180 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Crystal | ||
Standard Frequency 14.7456MHz | ||
Mount Type Surface Mount | ||
Load Capacitance 18pF | ||
Packaging Tape & Reel | ||
Package Type SMT | ||
Pin Count 4 | ||
Length 3.2mm | ||
Width 2.5mm | ||
Height 2.5mm | ||
Frequency Tolerance ±20.00 ppm | ||
Minimum Operating Temperature -40.00°C | ||
Frequency Stability ±30 ppm | ||
Maximum Operating Temperature 85.00°C | ||
Series Resistance 120Ω | ||
Standards/Approvals RoHS, REACH | ||
Series CFPX-180 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN

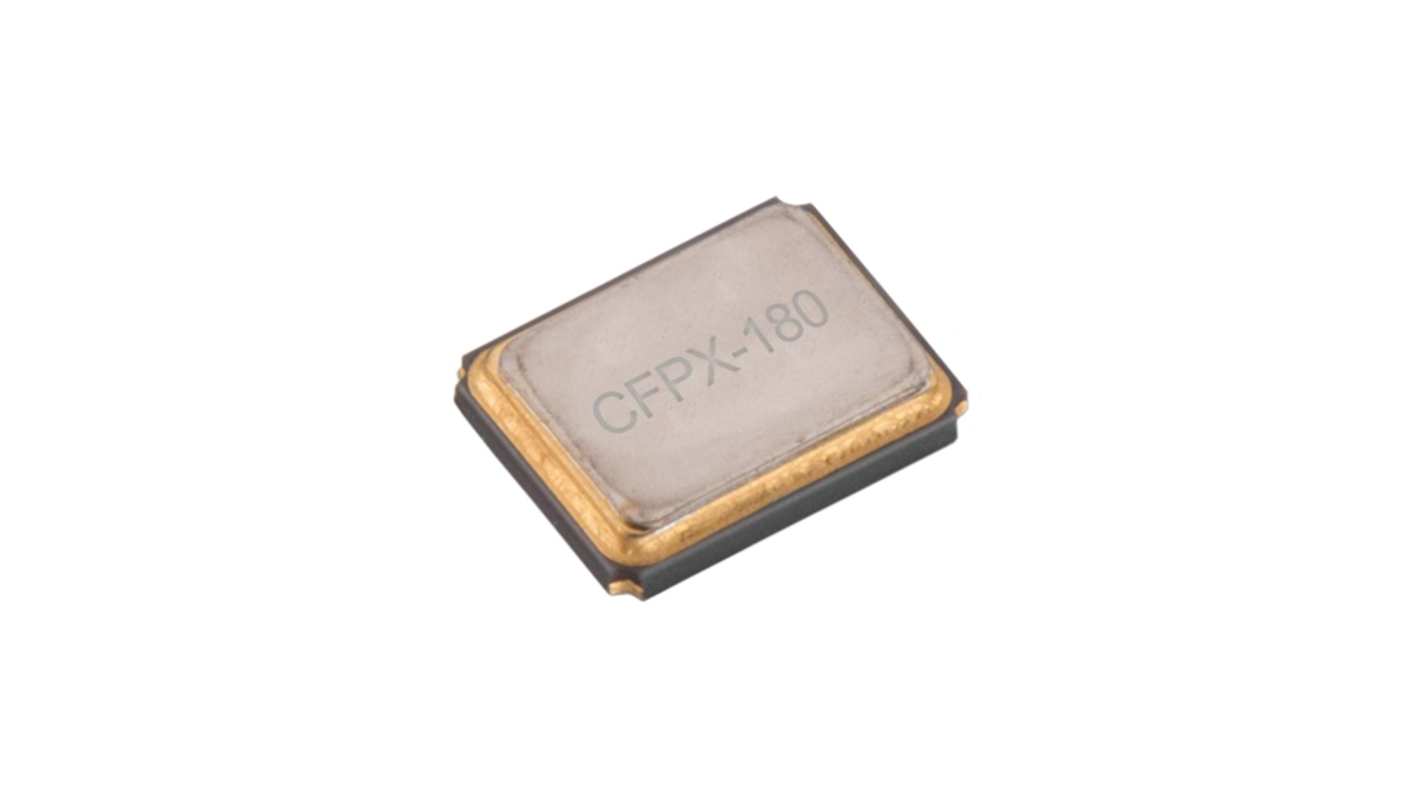

The Wurth Elektronik Standard 3.2 x 2.5mm SMD crystal stands out with its ceramic package and hermetically sealed metal lid, ensuring durability and reliability in various applications. Designed to operate effectively within a wide temperature range, this crystal offers outstanding frequency stability and tolerance. Perfect for a myriad of electronic devices, its Compact form factor integrates seamlessly into modern designs while delivering precision performance. The manufacturing process follows strict RoHS compliance, alongside robust environmental specifications, adapting to rigorous industry standards.
Durable construction ensures long lasting operation in diverse environments
RoHS compliant aligning with modern environmental standards
Versatile usage across various sectors from automotive to telecommunications
Hermetically sealed for superior performance and reduced failure risks
Operates effectively in extreme temperatures enhancing reliability
