Wurth Elektronik 12 MHz Crystal ±10.00 ppm SMT 4-Pin 2.5 mm 3.2 mm 2.5 mm
- RS Stock No.:
- 197-575
- Mfr. Part No.:
- 830108206909
- Brand:
- Wurth Elektronik
Subtotal (1 tape of 10 units)*
£3.37
(exc. VAT)
£4.04
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,990 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 + | £0.337 | £3.37 |
*price indicative
- RS Stock No.:
- 197-575
- Mfr. Part No.:
- 830108206909
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Crystal | |
| Standard Frequency | 12MHz | |
| Mount Type | Surface Mount | |
| Load Capacitance | 8pF | |
| Packaging | Tape & Reel | |
| Package Type | SMT | |
| Pin Count | 4 | |
| Length | 3.2mm | |
| Width | 2.5 mm | |
| Height | 2.5mm | |
| Frequency Tolerance | ±10.00 ppm | |
| Minimum Operating Temperature | -40.00°C | |
| Frequency Stability | ±20 ppm | |
| Series Resistance | 120Ω | |
| Maximum Operating Temperature | 85.00°C | |
| Series | CFPX-180 | |
| Standards/Approvals | REACH, MIL-STD-202F, RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Crystal | ||
Standard Frequency 12MHz | ||
Mount Type Surface Mount | ||
Load Capacitance 8pF | ||
Packaging Tape & Reel | ||
Package Type SMT | ||
Pin Count 4 | ||
Length 3.2mm | ||
Width 2.5 mm | ||
Height 2.5mm | ||
Frequency Tolerance ±10.00 ppm | ||
Minimum Operating Temperature -40.00°C | ||
Frequency Stability ±20 ppm | ||
Series Resistance 120Ω | ||
Maximum Operating Temperature 85.00°C | ||
Series CFPX-180 | ||
Standards/Approvals REACH, MIL-STD-202F, RoHS | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN

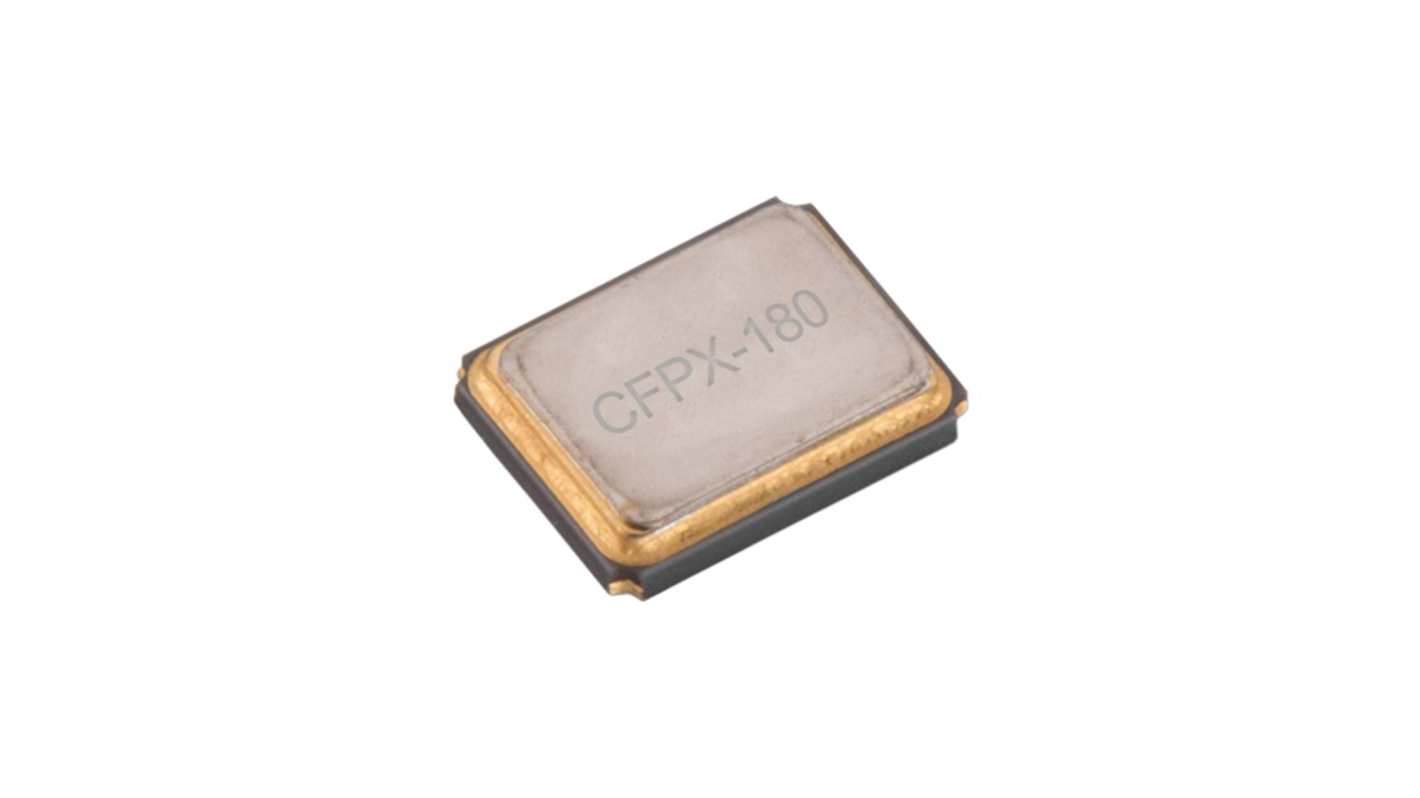

The Wurth Elektronik Standard 3.2 x 2.5mm SMD Crystal in a ceramic package, this quartz crystal boasts a seam sealed metal LID for superior hermetic protection. Designed for reliability, it addresses a wide range of frequency application needs with exceptional precision. With robust specifications, this crystal is the perfect choice for manufacturers seeking dependable performance in their electronic circuits.
Compact dimension facilitating ease of integration into electronic designs
Optimized for high frequency applications providing reliable signal integrity
Adheres to stringent environmental compliance standards
Extended operational lifespan due to minimal ageing effects
Suitable for diverse applications across automotive telecommunications and consumer electronics
