Wurth Elektronik 24 MHz Crystal ±20.00 ppm SMT 4-Pin 2.5 mm 3.2 mm 2.5mm
- RS Stock No.:
- 197-552
- Mfr. Part No.:
- 830108340709
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 tape of 10 units)*
£5.26
(exc. VAT)
£6.31
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2,900 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 90 | £0.526 | £5.26 |
| 100 - 240 | £0.50 | £5.00 |
| 250 - 490 | £0.462 | £4.62 |
| 500 - 990 | £0.426 | £4.26 |
| 1000 + | £0.411 | £4.11 |
*price indicative
- RS Stock No.:
- 197-552
- Mfr. Part No.:
- 830108340709
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Standard Frequency | 24MHz | |
| Product Type | Crystal | |
| Mount Type | Surface Mount | |
| Load Capacitance | 12pF | |
| Packaging | Tape & Reel | |
| Package Type | SMT | |
| Pin Count | 4 | |
| Length | 3.2mm | |
| Width | 2.5mm | |
| Height | 2.5mm | |
| Frequency Tolerance | ±20.00 ppm | |
| Frequency Stability | ±50 ppm | |
| Minimum Operating Temperature | -40.00°C | |
| Maximum Operating Temperature | 105.00°C | |
| Series Resistance | 50Ω | |
| Standards/Approvals | MIL-STD-202F | |
| Series | CFPX-180 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Standard Frequency 24MHz | ||
Product Type Crystal | ||
Mount Type Surface Mount | ||
Load Capacitance 12pF | ||
Packaging Tape & Reel | ||
Package Type SMT | ||
Pin Count 4 | ||
Length 3.2mm | ||
Width 2.5mm | ||
Height 2.5mm | ||
Frequency Tolerance ±20.00 ppm | ||
Frequency Stability ±50 ppm | ||
Minimum Operating Temperature -40.00°C | ||
Maximum Operating Temperature 105.00°C | ||
Series Resistance 50Ω | ||
Standards/Approvals MIL-STD-202F | ||
Series CFPX-180 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN

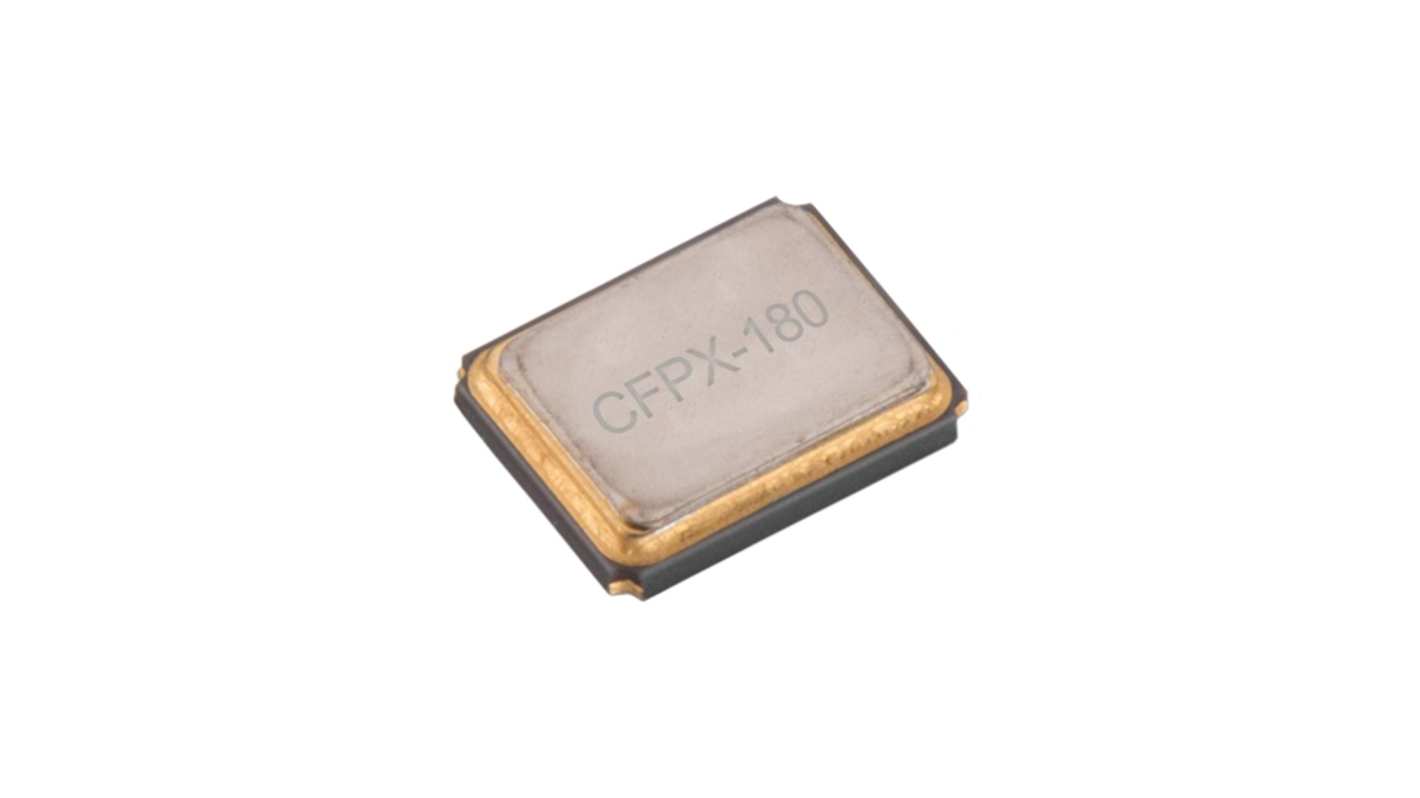

The Wurth Elektronik Standard SMD crystal measuring 3.2 x 2.5mm, is encapsulated in a robust ceramic package complete with a hermetically sealed metal lid. Engineered for reliability, it operates seamlessly across a wide temperature range, making it suitable for diverse applications. Compliant with RoHS regulations, this model meets stringent environmental standards while offering efficient performance in modern electronic designs. Its Compact form factor and effective manufacturing processes guarantee both quality and consistency.
Compact size allows for seamless integration into space constrained designs
Hermetically sealed metal LID enhances durability and resistance to environmental factors
Wide operating temperature range supports diverse usage scenarios
Manufactured with Advanced technology to guarantee consistent performance
Suitable for fundamental overtone applications enhancing versatility
