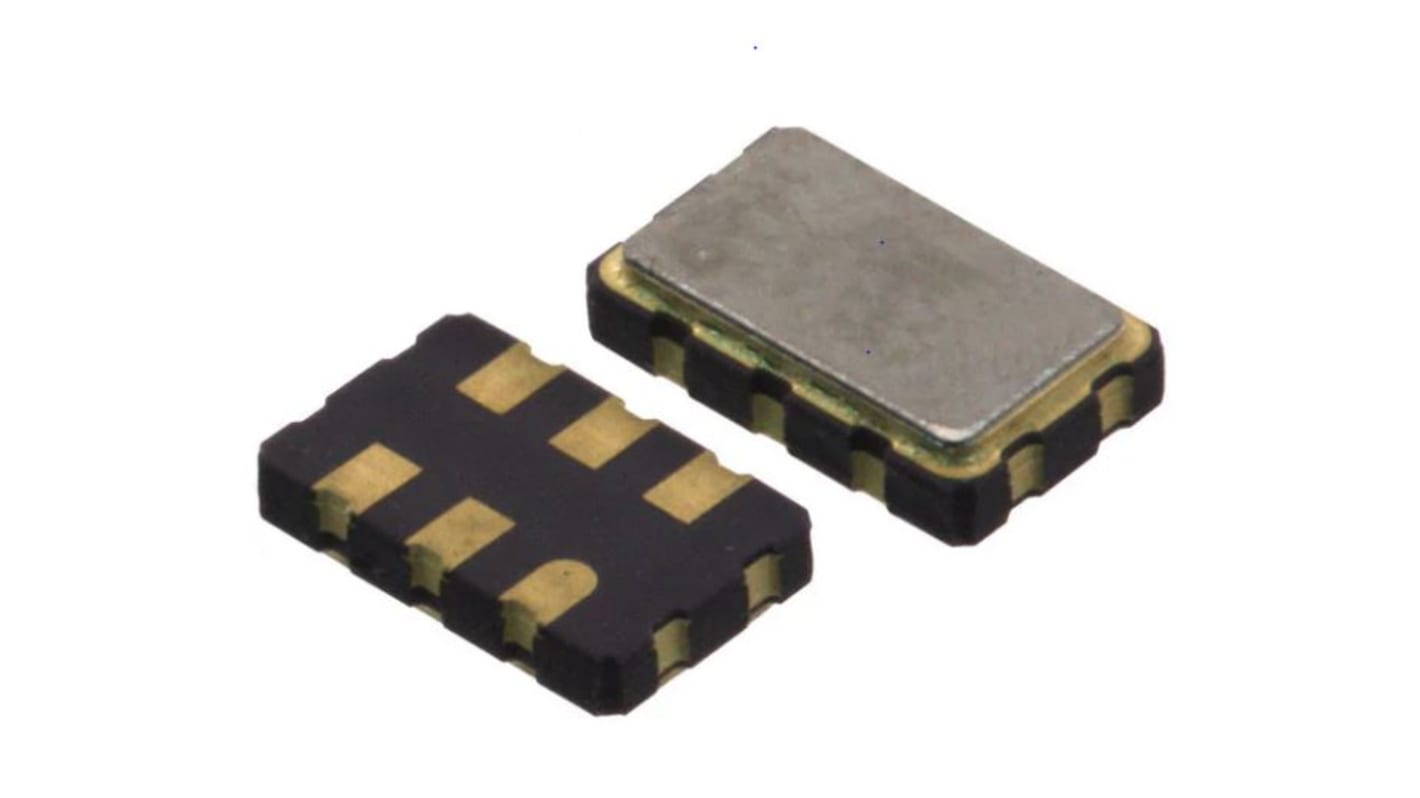

Renesas Electronics, 0.75MHz Oscillator, 50ppm LVDS VCXO XLL735125.000000I
- RS Stock No.:
- 216-6321
- Mfr. Part No.:
- XLL735125.000000I
- Brand:
- Renesas Electronics
1000 In stock - FREE next working day delivery available
Added
Price Each (On a Tape of 100)
£2.969
(exc. VAT)
£3.563
(inc. VAT)
| Units | Per unit | Per Tape* |
| 100 + | £2.969 | £296.90 |
| *price indicative | ||
- RS Stock No.:
- 216-6321
- Mfr. Part No.:
- XLL735125.000000I
- Brand:
- Renesas Electronics
Technical Reference
Legislation and Compliance
Product Details
The Renesas Electronics IDT XL devices (XO and VCXO options) are ultra-precision crystal oscillators with 750 to 890fs typical phase jitter over 12kHz to 20MHz bandwidth. Available in a wide frequency range from 0.750MHz to 1350MHz, the XL series crystal oscillators utilize a family of proprietary ASICs, with a key focus on noise reduction technologies.
Output types: LVDS, LVPECL, LVCMOS
Phase jitter (12kHz to 20MHz): 750fs to 890fs typical
Supply voltage: 2.5V or 3.3V
Operating temperature: -40°C to +105°C (XO only)
Frequency stability options: ±50 or ±100 ppm
kV of 85ppm/volt typical from 0.5VDC to VDD (VCXO only)
Better than ±10% linearity for Vc range
Phase jitter (12kHz to 20MHz): 750fs to 890fs typical
Supply voltage: 2.5V or 3.3V
Operating temperature: -40°C to +105°C (XO only)
Frequency stability options: ±50 or ±100 ppm
kV of 85ppm/volt typical from 0.5VDC to VDD (VCXO only)
Better than ±10% linearity for Vc range
Specifications
Attribute | Value |
|---|---|
| Output Frequency | 0.75MHz |
| Frequency Stability | 50ppm |
| Package Type | VCXO |
| Output Level | LVDS |
