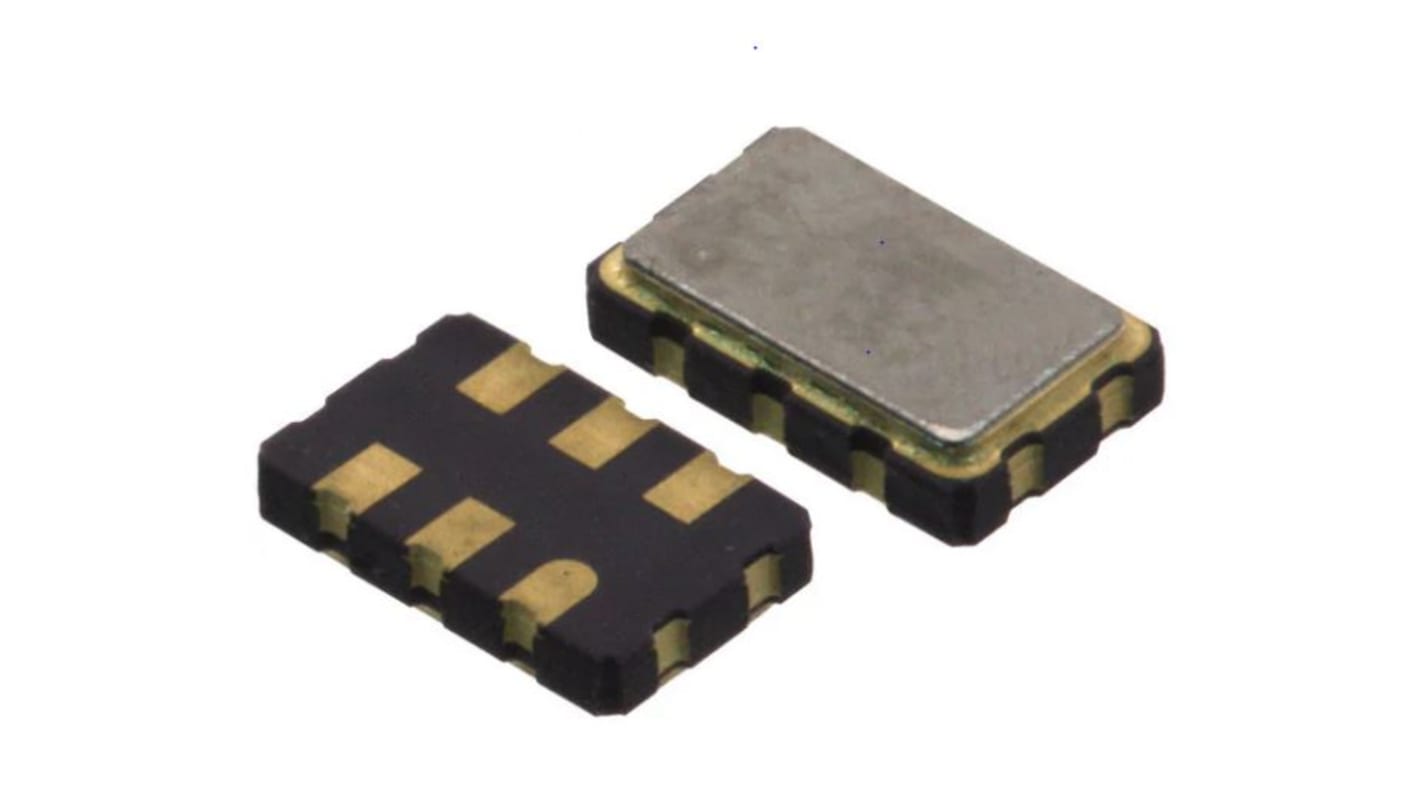

Renesas Electronics, 200MHz XO Oscillator, 25ppm LVCMOS SMD XLH536200.000000I
- RS Stock No.:
- 216-6298
- Mfr. Part No.:
- XLH536200.000000I
- Brand:
- Renesas Electronics
Bulk discount available
Subtotal (1 pack of 5 units)*
£10.65
(exc. VAT)
£12.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £2.13 | £10.65 |
| 25 - 45 | £1.97 | £9.85 |
| 50 - 95 | £1.928 | £9.64 |
| 100 - 245 | £1.682 | £8.41 |
| 250 + | £1.648 | £8.24 |
*price indicative
- RS Stock No.:
- 216-6298
- Mfr. Part No.:
- XLH536200.000000I
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Oscillator Type | XO | |
| Output Frequency | 200MHz | |
| Frequency Stability | 25ppm | |
| Package Type | SMD | |
| Output Level | LVCMOS | |
| Minimum Operating Supply Voltage | 3.135V | |
| Maximum Operating Supply Voltage | 3.465V | |
| Mounting Type | Output Level | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Height | 1.1mm | |
| Width | 3.2mm | |
| Length | 5mm | |
| Dimensions | 5 x 3.2 x 1.1mm | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Oscillator Type XO | ||
Output Frequency 200MHz | ||
Frequency Stability 25ppm | ||
Package Type SMD | ||
Output Level LVCMOS | ||
Minimum Operating Supply Voltage 3.135V | ||
Maximum Operating Supply Voltage 3.465V | ||
Mounting Type Output Level | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Height 1.1mm | ||
Width 3.2mm | ||
Length 5mm | ||
Dimensions 5 x 3.2 x 1.1mm | ||
The Renesas Electronics IDT XL devices (XO and VCXO options) are ultra-precision crystal oscillators with 750 to 890fs typical phase jitter over 12kHz to 20MHz bandwidth. Available in a wide frequency range from 0.750MHz to 1350MHz, the XL series crystal oscillators utilize a family of proprietary ASICs, with a key focus on noise reduction technologies.
Output types: LVCMOS
Phase jitter (12kHz to 20MHz): 750fs to 890fs typical
Operating temperature: -40°C to +85°C (XO only)
Frequency stability options: ±50 or ±100 ppm
kV of 85ppm/volt typical from 0.5VDC to VDD (VCXO only)
Better than ±10% linearity for Vc range
Phase jitter (12kHz to 20MHz): 750fs to 890fs typical
Operating temperature: -40°C to +85°C (XO only)
Frequency stability options: ±50 or ±100 ppm
kV of 85ppm/volt typical from 0.5VDC to VDD (VCXO only)
Better than ±10% linearity for Vc range
