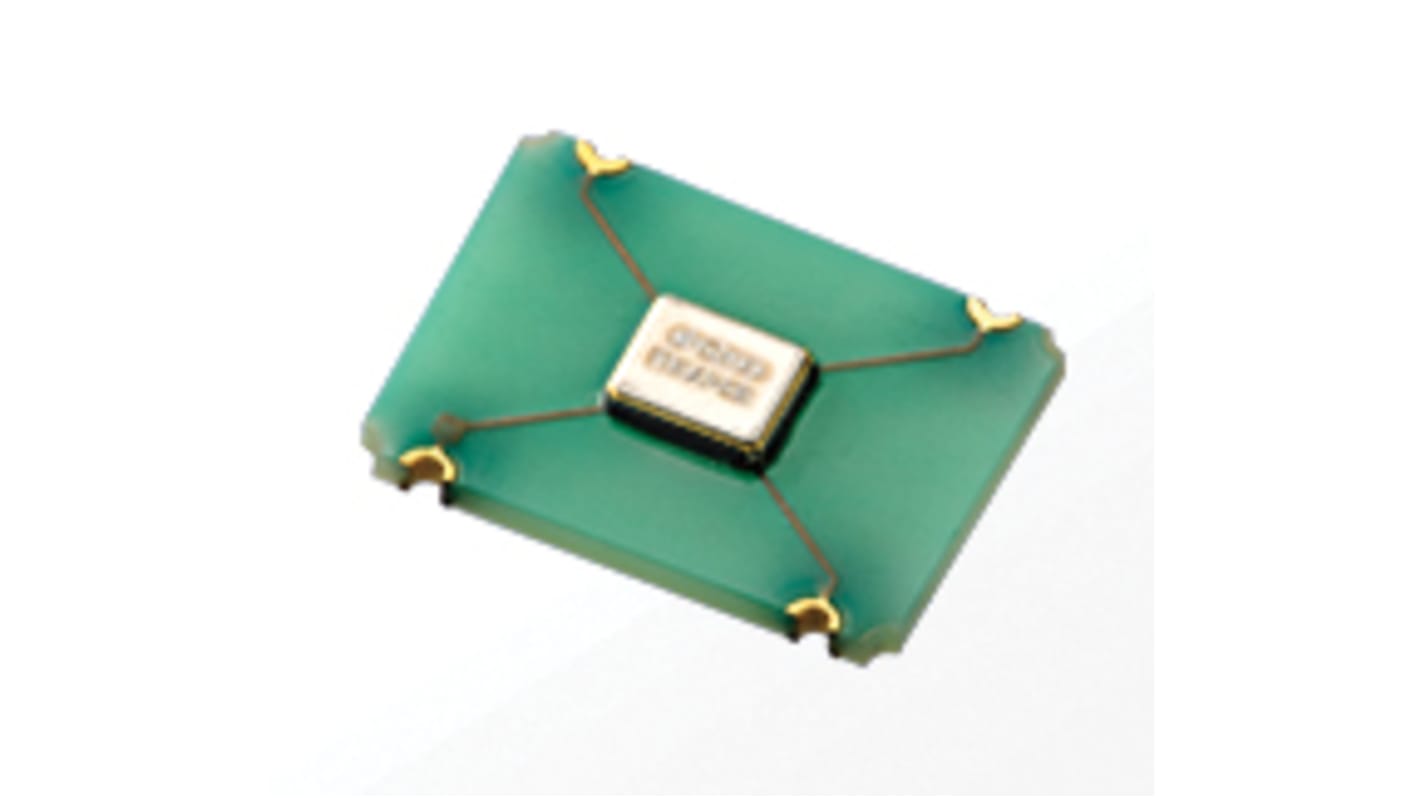

KYOCERA, 4.09MHz Clock Oscillator CMOS, 4-Pin SMD KC7050K4.09600C1GE00
- RS Stock No.:
- 172-1734
- Mfr. Part No.:
- KC7050K4.09600C1GE00
- Brand:
- KYOCERA
Discontinued product
- RS Stock No.:
- 172-1734
- Mfr. Part No.:
- KC7050K4.09600C1GE00
- Brand:
- KYOCERA
Technical Reference
Legislation and Compliance
Product Details
The K-series utilizes a common platform design covering case sizes 2016 through 7050. High frequency options and a variety of output types support customer needs.
Frequency Range 1.5 to 80MHz
CMOS output
Wide Supply Voltage
1.6 to 3.63V (Ver.E)
2.5,3.3,5.0V(Ver.N)
Low current consumption
Option: Low Phase Noise Version
Applications
Consumer/ Networking/ Industrial/ Audio
Codec/ Amuse
CMOS output
Wide Supply Voltage
1.6 to 3.63V (Ver.E)
2.5,3.3,5.0V(Ver.N)
Low current consumption
Option: Low Phase Noise Version
Applications
Consumer/ Networking/ Industrial/ Audio
Codec/ Amuse
Specifications
Attribute | Value |
|---|---|
| Oscillator Type | Clock |
| Output Frequency | 4.09MHz |
| Package Type | SMD |
| Output Level | CMOS |
| Mounting Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Height | 1.2mm |
| Maximum Operating Temperature | 85°C |
| Width | 5mm |
| Length | 7mm |
| Dimensions | 7 x 5 x 1.2mm |
