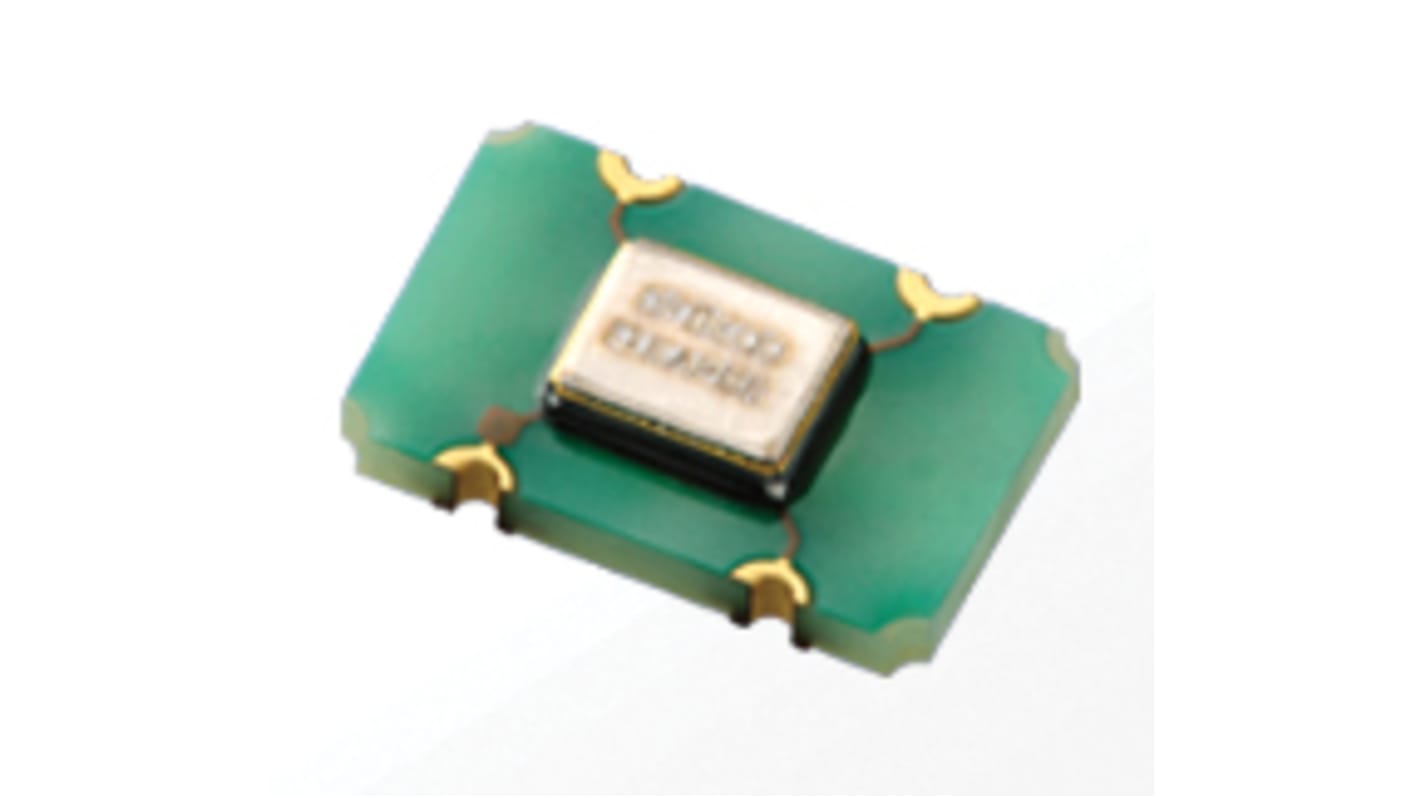

KYOCERA, 26 MHz Clock Oscillator CMOS, 4-Pin SMD KC5032K26.0000C1GE00

  • RS Stock No. 172-1711
  • Mfr. Part No. KC5032K26.0000C1GE00
  • Brand KYOCERA
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

The K-series utilizes a common platform design covering case sizes 2016 through 7050. High frequency options and a variety of output types support customer needs.

Frequency Range 1.5 to 80MHz
CMOS output
Wide Supply Voltage
1.6 to 3.63V (Ver.E)
2.5,3.3,5.0V(Ver.N)
Low current consumption
Option: Low Phase Noise Version
Applications
Consumer/ Networking/ Industrial/ Audio
Codec/ Amuse

Specifications
Attribute Value
Oscillator Type Clock
Output Frequency 26 MHz
Package Type SMD
Output Level CMOS
Minimum Operating Supply Voltage 1.6 V
Mounting Type Surface Mount
Maximum Operating Supply Voltage 3.63 V
Minimum Operating Temperature -40 °C
Height 1.2mm
Maximum Operating Temperature +85 °C
Dimensions 5 x 3.2 x 1.2mm
Available to back order for despatch when stock is available
Price Each (On a Reel of 1000)
£ 2.528
(exc. VAT)
£ 3.034
(inc. VAT)
Units
Per unit
Per Reel*
1000 +
£2.528
£2,528.00
*price indicative
