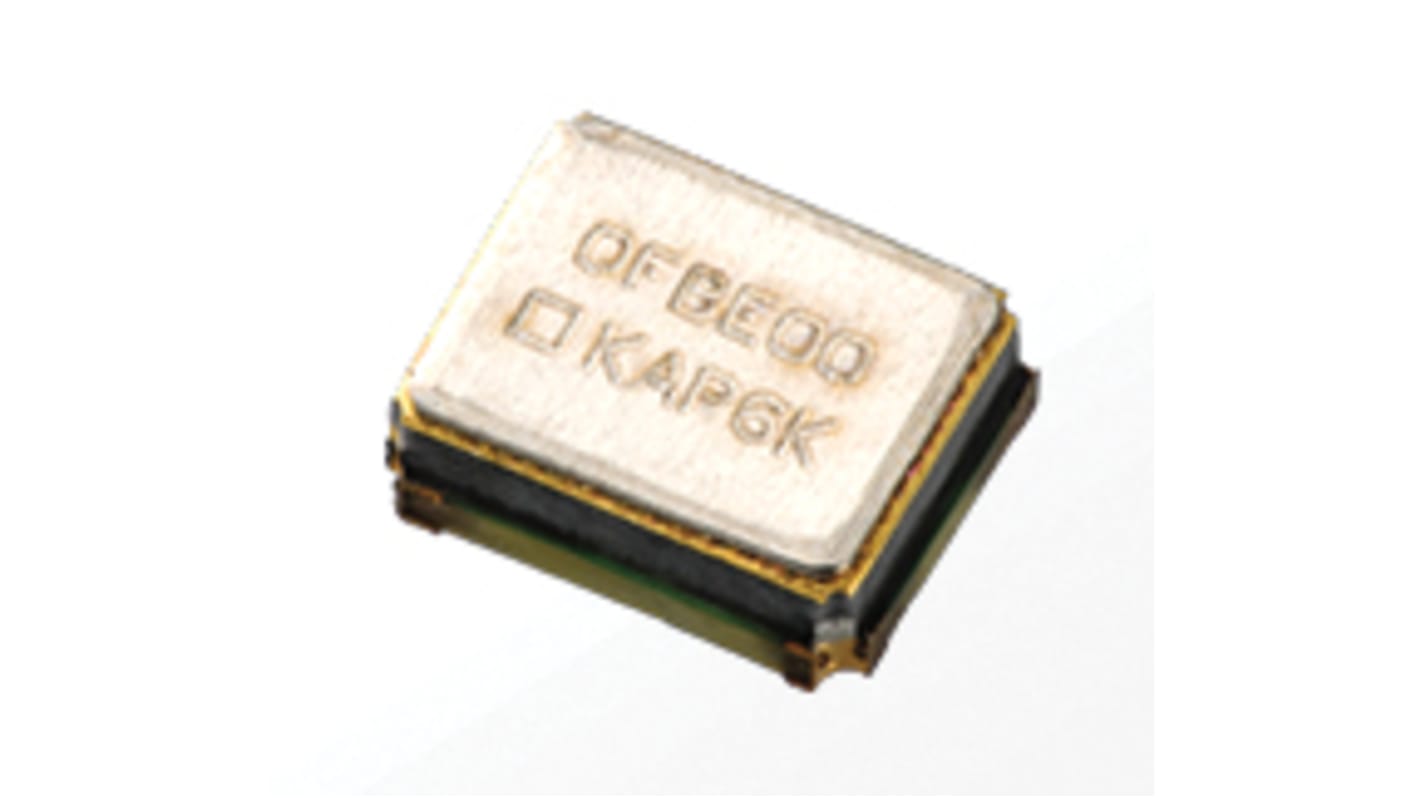

KYOCERA, 20MHz Clock Oscillator CMOS, 4-Pin SMD KC2016K20.0000C1GE00

  • RS Stock No. 172-1640
  • Mfr. Part No. KC2016K20.0000C1GE00
  • Brand KYOCERA
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

The K-series utilizes a common platform design covering case sizes 2016 through 7050. High frequency options and a variety of output types support customer needs.

Frequency Range 1.5 to 80MHz
CMOS output
Wide Supply Voltage
1.6 to 3.63V (Ver.E)
2.5,3.3,5.0V(Ver.N)
Low current consumption
Option: Low Phase Noise Version
Applications
Consumer/ Networking/ Industrial/ Audio
Codec/ Amuse

Specifications
Attribute Value
Oscillator Type Clock
Output Frequency 20MHz
Package Type SMD
Output Level CMOS
Mounting Type Surface Mount
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Height 0.8mm
Dimensions 2 x 1.6 x 0.8mm
Discontinued product
