- RS Stock No.:
- 179-9345
- Mfr. Part No.:
- BU-113XPN LARGE
- Brand:
- Mueller Electric
32 In stock - FREE next working day delivery available
Added
Price Each
£1.86
(exc. VAT)
£2.23
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £1.86 |
| 10 - 49 | £1.81 |
| 50 - 99 | £1.75 |
| 100 - 199 | £1.69 |
| 200 + | £1.64 |
- RS Stock No.:
- 179-9345
- Mfr. Part No.:
- BU-113XPN LARGE
- Brand:
- Mueller Electric
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

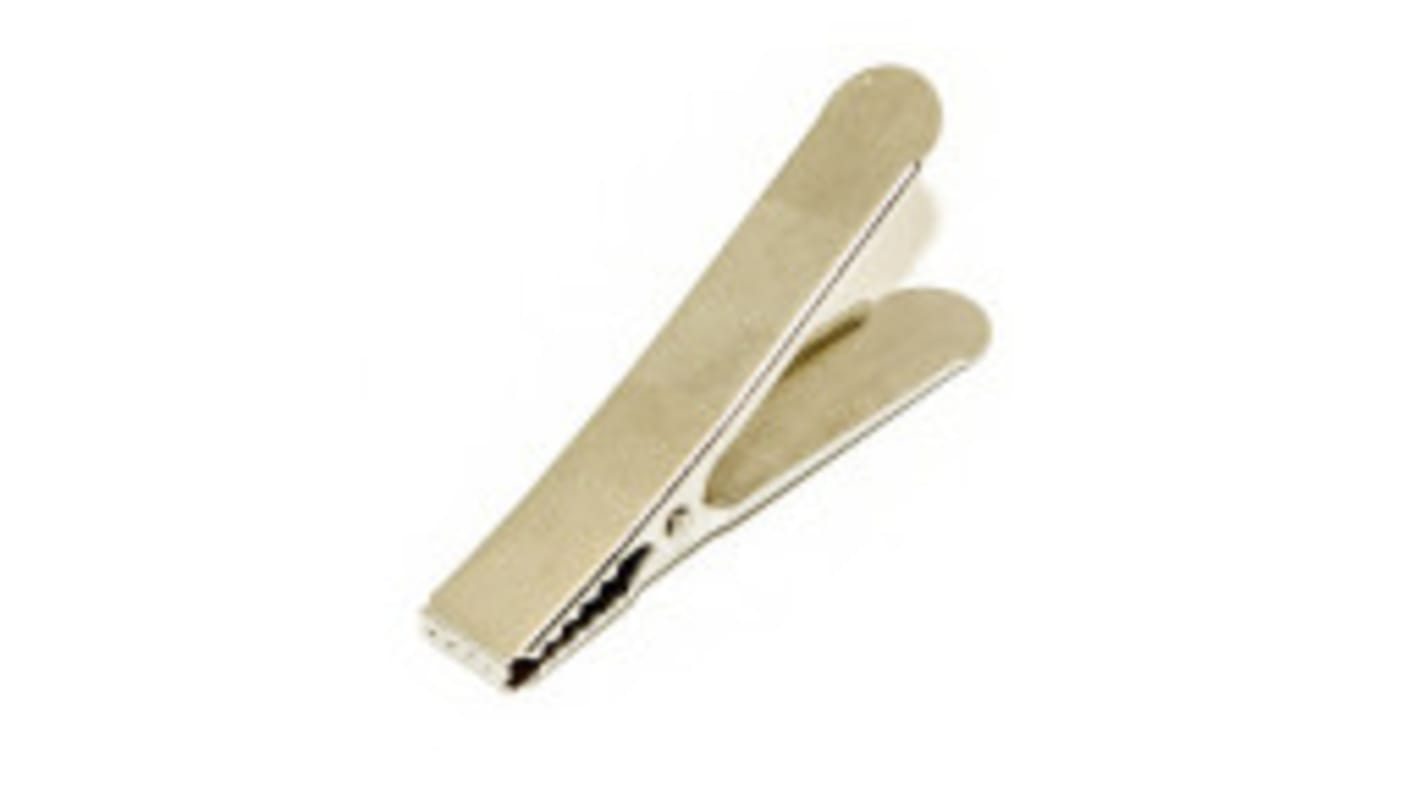

The BU-113XPN LARGE clip was designed as a holder for painting and plating applications. It has a light force spring to prevent damage. 2.2″ Length and .4″ Width.
The BU-113XPN LARGE was designed to hold parts during painting or plating processes.
This Clamp is not intended for electrical purposes and thus, there is no provision to attach a wire to it.
Length 2.2” (55.9 mm), Width = .4” (10mm), Height = 1.2” (31mm)
Jaw Opens .5” (13mm) Max.
Clamping force at jaws is 4±.5 lbs(1.8±.2kg) at .25”(6mm) jaw spread
Material: Clip – 304 Stainless Steel
Rivet – 304 Stainless Steel
Spring – 302 Stainless Steel
Rating: 10 Amps
This Clamp is not intended for electrical purposes and thus, there is no provision to attach a wire to it.
Length 2.2” (55.9 mm), Width = .4” (10mm), Height = 1.2” (31mm)
Jaw Opens .5” (13mm) Max.
Clamping force at jaws is 4±.5 lbs(1.8±.2kg) at .25”(6mm) jaw spread
Material: Clip – 304 Stainless Steel
Rivet – 304 Stainless Steel
Spring – 302 Stainless Steel
Rating: 10 Amps
Specifications
Attribute | Value |
|---|---|
| Current Rating | 10A |
| Jaw Opening | 13mm |
| Insulated | No |
