- RS Stock No.:
- 820-1403
- Mfr. Part No.:
- 01SSHLSSHL-28L300
- Brand:
- JST
2790 In stock - FREE next working day delivery available
300 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 10)
£0.545
(exc. VAT)
£0.654
(inc. VAT)
Units | Per unit | Per Pack* |
10 - 40 | £0.545 | £5.45 |
50 - 90 | £0.464 | £4.64 |
100 + | £0.438 | £4.38 |
*price indicative |
- RS Stock No.:
- 820-1403
- Mfr. Part No.:
- 01SSHLSSHL-28L300
- Brand:
- JST
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
1.25mm Wire to Board GH Series Contacts
The JST 1.25mm pitch GH Wire to Board Connector Range has a low insertion force making them suitable for PDP, LCD or any small electronics equipment. The design of the Wire to Board GH Range incorporates a secure locking structure for the connector parts including the contacts. The Wire to Board GH Connector Range Contact design gives a click on correct insertion into the housing.
820-1393 is a 150 mm long Cable Assembly fitted with SSHL-002T-P0.2 Contacts on both ends.

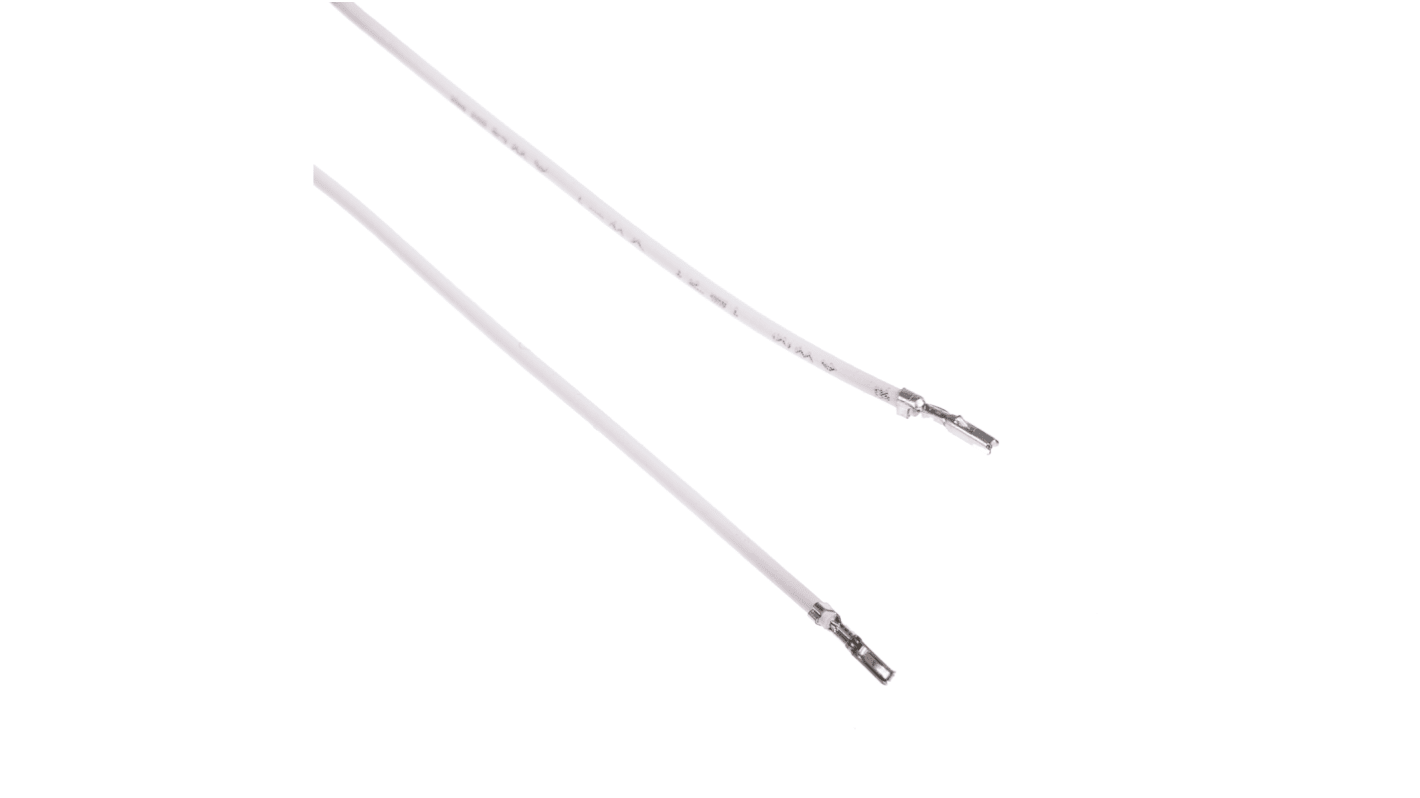

820-1403 is a 300 mm long Cable Assembly fitted with SSHL-002T-P0.2 Contacts on both ends.
For 1.25mm GH Series Housings see stock number 752-1734 typical.
820-1393 is a 150 mm long Cable Assembly fitted with SSHL-002T-P0.2 Contacts on both ends.
820-1403 is a 300 mm long Cable Assembly fitted with SSHL-002T-P0.2 Contacts on both ends.
For 1.25mm GH Series Housings see stock number 752-1734 typical.
1.25mm Wire to Board - JST GH Series
Specifications
Attribute | Value |
---|---|
Series | GH |
Crimp Terminal 1 | SSHL |
Crimp Terminal 2 | SSHL |
Crimp Terminal 1 Gender | Female |
Crimp Terminal 2 Gender | Female |
Wire Size | 0.08mm² |
Cable Length | 300mm |
Contact Plating | Tin |
Wire Style | UL 1571 |
