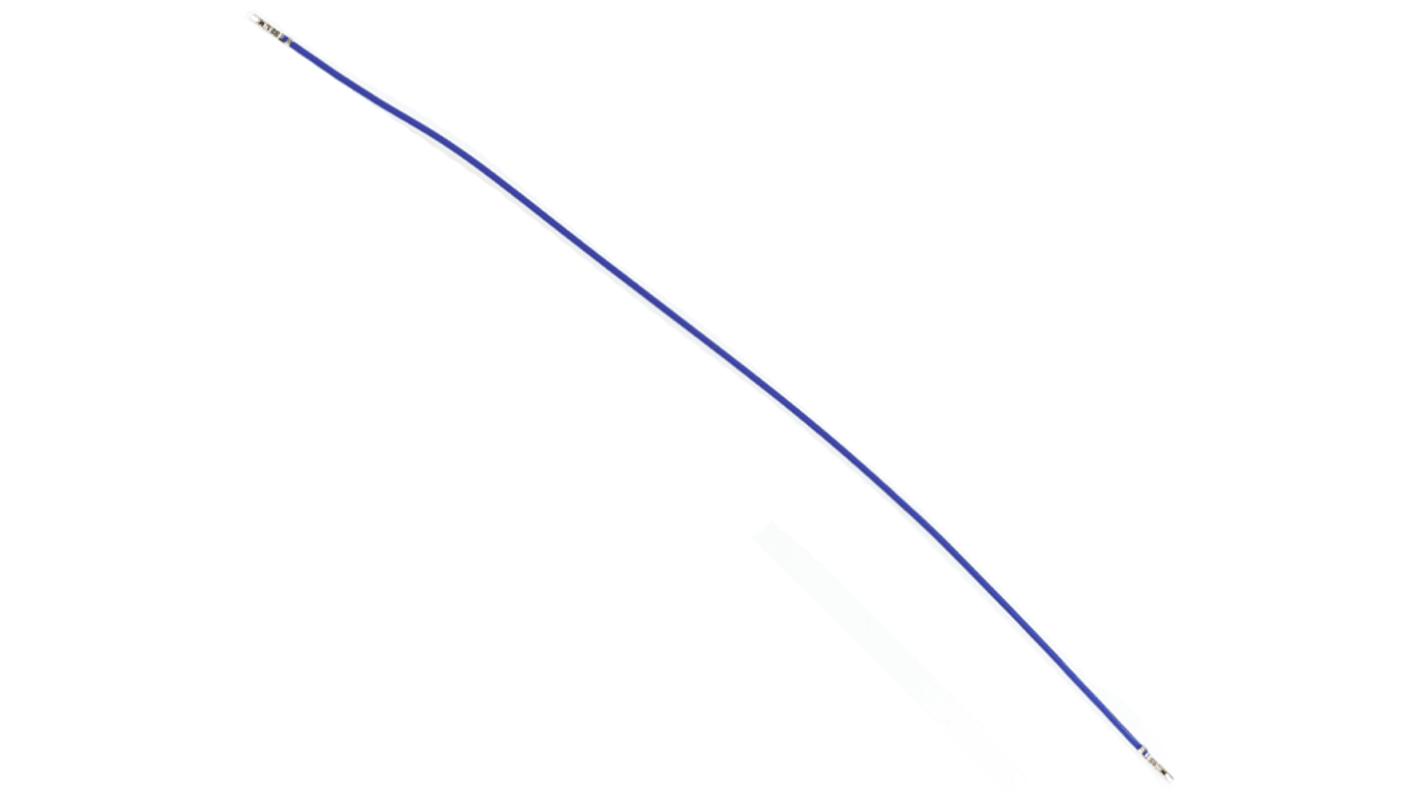

JST Female SZE to Female SZE Crimped Wire, 150mm, 0.14mm², Blue
- RS Stock No.:
- 820-1396
- Mfr. Part No.:
- 01SZESZE-26L150
- Brand:
- JST
60 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 10)
£0.382
(exc. VAT)
£0.458
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 40 | £0.382 | £3.82 |
| 50 - 90 | £0.324 | £3.24 |
| 100 + | £0.306 | £3.06 |
| *price indicative | ||
- RS Stock No.:
- 820-1396
- Mfr. Part No.:
- 01SZESZE-26L150
- Brand:
- JST
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
ZE Series 1.5mm Contacts and Cable Assemblies
820-1387 ZE Series 1.5mm Receptacle Contact for wire sizes 0.08∼0.21 mm² (28∼24 AWG) with an insulation diameter of 0.8∼1.2 mm.
820-1396 Cable Assembly with ZE Series 1.5mm Receptacle Contacts on both ends of a 150 mm long, 26 AWG, 0.98 mm outside diameter, blue cable.
820-1399 Cable Assembly with ZE Series 1.5mm Receptacle Contacts on both ends of a 300 mm long, 26 AWG, 0.98 mm outside diameter, blue cable.
For a ZE Seris Hand Crimp Tool see stock number 819-2728 .
820-1396 Cable Assembly with ZE Series 1.5mm Receptacle Contacts on both ends of a 150 mm long, 26 AWG, 0.98 mm outside diameter, blue cable.
820-1399 Cable Assembly with ZE Series 1.5mm Receptacle Contacts on both ends of a 300 mm long, 26 AWG, 0.98 mm outside diameter, blue cable.
For a ZE Seris Hand Crimp Tool see stock number 819-2728 .
1.5mm Wire to Board - JST ZE Connectors
The JST ZE Series of 1.5mm Wire to Board Connectors feature secure locking housing and contact structures.
Specifications
Attribute | Value |
|---|---|
| Crimp Terminal 1 | SZE |
| Series | ZE |
| Crimp Terminal 2 | SZE |
| Crimp Terminal 1 Gender | Female |
| Crimp Terminal 2 Gender | Female |
| Wire Size | 0.14mm² |
| Cable Length | 150mm |
| Contact Plating | Tin |
| Sheath Colour | Blue |
- RS Stock No.:
- 820-1396
- Mfr. Part No.:
- 01SZESZE-26L150
- Brand:
- JST
