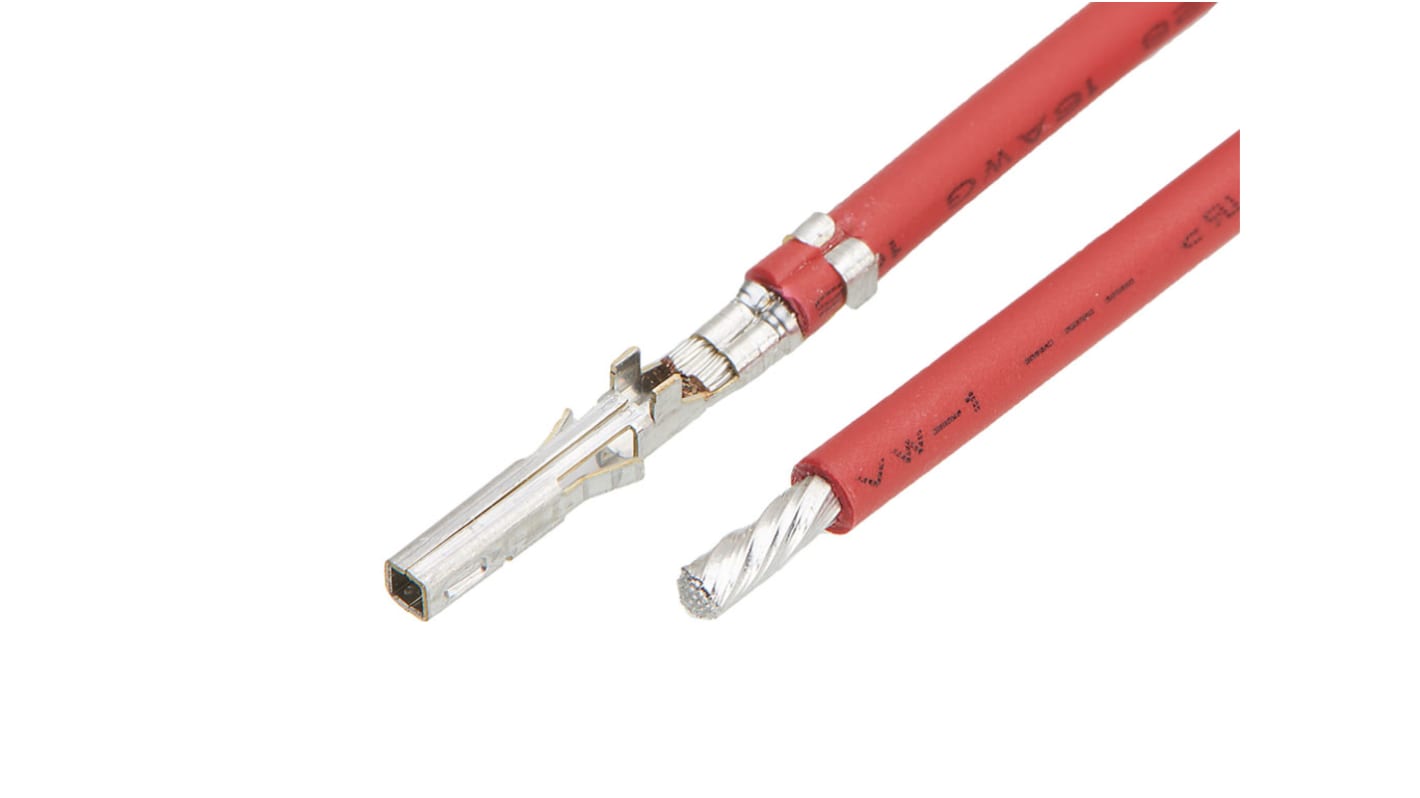

Molex Female Mini-Fit to Pre-Crimped Lead, 450mm, 20AWG, Red
- RS Stock No.:
- 263-6862
- Mfr. Part No.:
- 219671-2105
- Brand:
- Molex
Save 9% when you buy 500 units
Subtotal (1 bag of 100 units)*
£75.40
(exc. VAT)
£90.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 200 unit(s) ready to ship
- Plus 999,999,700 unit(s) shipping from 28 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
100 - 400 | £0.754 | £75.40 |
500 + | £0.686 | £68.60 |
*price indicative
- RS Stock No.:
- 263-6862
- Mfr. Part No.:
- 219671-2105
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Series | 219671 | |
Crimp Terminal 1 | Mini-Fit | |
Crimp Terminal 1 Gender | Female | |
Wire Size | 20AWG | |
Cable Length | 450mm | |
Contact Plating | Tin | |
Sheath Colour | Red | |
Series Number | 219671 | |
Current Rating | 11.2 A | |
Wire Style | UL11028 | |
Select all | ||
---|---|---|
Brand Molex | ||
Series 219671 | ||
Crimp Terminal 1 Mini-Fit | ||
Crimp Terminal 1 Gender Female | ||
Wire Size 20AWG | ||
Cable Length 450mm | ||
Contact Plating Tin | ||
Sheath Colour Red | ||
Series Number 219671 | ||
Current Rating 11.2 A | ||
Wire Style UL11028 | ||
Molex 219671 Series Pre-Crimped Lead, 20AWG Wire size, 450mm Cable Length - 219671-2105
This pre-crimped lead belongs to the category of cable assemblies, featuring a 450mm cable length that makes it ideal for various electrical connections. Designed for efficiency, it incorporates a Mini-Fit Sigma connector and female pigtail configuration, providing a reliable solution for power and signal applications.
Features & Benefits
• Designed with a Mini-Fit connector to ensure compatibility
• Utilises a 20AWG wire for robust electrical performance
• Tin-plated terminals enhance durability against corrosion
• Current rating of 11.2A supports various applications
• The red cable colour simplifies identification in complex setups
• Specific to UL11028 wire standards for added reliability
• Utilises a 20AWG wire for robust electrical performance
• Tin-plated terminals enhance durability against corrosion
• Current rating of 11.2A supports various applications
• The red cable colour simplifies identification in complex setups
• Specific to UL11028 wire standards for added reliability
Applications
• Utilised in power and signal cable assemblies
• Used for wire-to-board connections in automation
• Ideal for wire-to-wire linking in electrical systems
• Suitable for interfacing with Mini-Fit TPA2/Sigma receptacles
• Used for wire-to-board connections in automation
• Ideal for wire-to-wire linking in electrical systems
• Suitable for interfacing with Mini-Fit TPA2/Sigma receptacles
What advantages does the crimp terminal design provide for installation?
The crimp terminal design allows for a secure connection, ensuring minimal risk of disconnection during operation. This method also facilitates easier installation as it eliminates the need for soldering.
What is the significance of using tin-plated terminals in this product?
Tin plating on terminals enhances conductivity and provides excellent resistance to oxidation, ensuring optimal performance over time.
How does the cable insulation diameter affect the product's functionality?
The insulation diameter of 1.98-2.55mm prevents short circuits and protects the wire from environmental factors, promoting reliable operation in diverse conditions.
What is the maximum voltage rating for safe usage?
The maximum voltage rating for this lead is 600V AC/DC, making it suitable for a wide range of applications in electrical systems.
