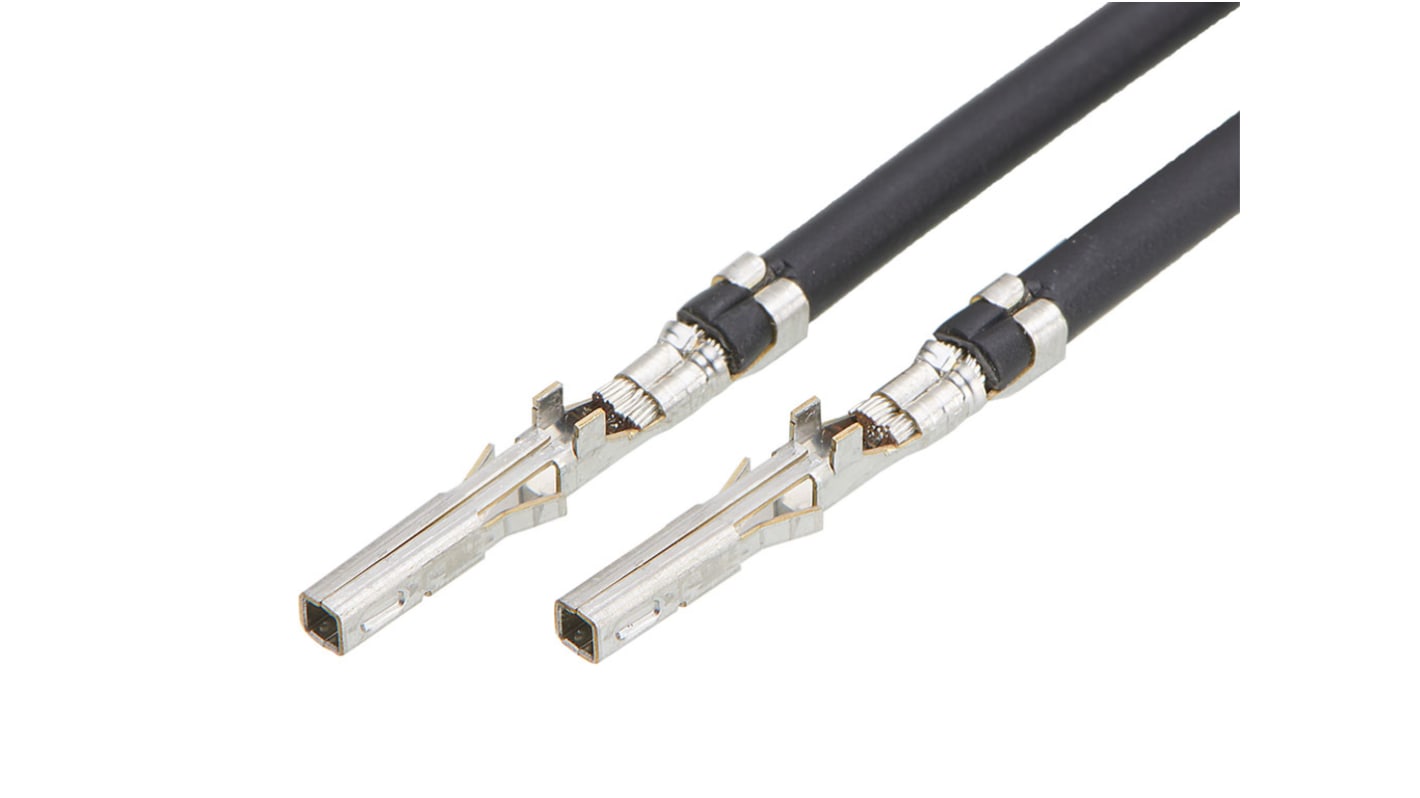

Molex Female Mini-Fit to Female Mini-Fit Pre-Crimped Lead, 450mm, 16AWG, Black
- RS Stock No.:
- 263-6808
- Mfr. Part No.:
- 219670-1125
- Brand:
- Molex
Save 9% when you buy 500 units
Subtotal (1 bag of 100 units)*
£75.40
(exc. VAT)
£90.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 200 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
100 - 400 | £0.754 | £75.40 |
500 + | £0.686 | £68.60 |
*price indicative
- RS Stock No.:
- 263-6808
- Mfr. Part No.:
- 219670-1125
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Crimp Terminal 1 | Mini-Fit | |
Series | 219670 | |
Crimp Terminal 2 | Mini-Fit | |
Crimp Terminal 1 Gender | Female | |
Crimp Terminal 2 Gender | Female | |
Wire Size | 16AWG | |
Cable Length | 450mm | |
Contact Plating | Tin | |
Sheath Colour | Black | |
Series Number | 219670 | |
Current Rating | 11.2 A | |
Wire Style | UL11028 | |
Select all | ||
---|---|---|
Brand Molex | ||
Crimp Terminal 1 Mini-Fit | ||
Series 219670 | ||
Crimp Terminal 2 Mini-Fit | ||
Crimp Terminal 1 Gender Female | ||
Crimp Terminal 2 Gender Female | ||
Wire Size 16AWG | ||
Cable Length 450mm | ||
Contact Plating Tin | ||
Sheath Colour Black | ||
Series Number 219670 | ||
Current Rating 11.2 A | ||
Wire Style UL11028 | ||
Molex 219670 Series Pre-Crimped Lead, 11.2A Current Rating, 450mm Cable Length - 219670-1125
This pre-crimped lead is a versatile cable assembly designed for efficient electrical connections. It features Mini-Fit Sigma female connectors at both ends and a wire gauge of 16 AWG. With a length of 450 mm, this lead provides sufficient reach for various applications in automation and electrical systems. The product is constructed with tin-plated terminals, ensuring robust connectivity and resistance against corrosion.
Features & Benefits
• Mini-Fit crimp terminals offer reliable connections for power applications
• 16 AWG pre-crimped wire accommodates substantial current loads
• 450 mm wire length provides flexibility in installation
• Tin plating enhances conductivity and reduces wear
• Female crimp connectors simplify compatibility with receptacle housings
• UL11028 wire meets stringent safety and performance standards
• 16 AWG pre-crimped wire accommodates substantial current loads
• 450 mm wire length provides flexibility in installation
• Tin plating enhances conductivity and reduces wear
• Female crimp connectors simplify compatibility with receptacle housings
• UL11028 wire meets stringent safety and performance standards
Applications
• Used with Mini-Fit TPA2 receptacle housings
• Suitable for power connections in wire-to-board configurations
• Ideal for wire-to-wire connections in electrical systems
• Employed in automation and control systems across industries
• Suitable for power connections in wire-to-board configurations
• Ideal for wire-to-wire connections in electrical systems
• Employed in automation and control systems across industries
What is the maximum current capacity for this lead?
The lead can handle a maximum current of 11.5 A per contact, making it suitable for a variety of power applications.
What type of environments is this lead designed for?
It is engineered for general use in electrical wiring solutions, providing reliable performance in both industrial and commercial environments.
Can this lead be used for high-voltage applications?
Yes, it is rated for a maximum voltage of 600V AC/DC, enabling use in high-voltage electrical systems.
What additional components are compatible with this product?
It is designed to work seamlessly with Mini-Fit TPA2/Sigma receptacle housings, ensuring optimal connectivity.
How does the tin plating improve performance?
The tin plating provides excellent conductivity while offering protection against environmental factors, enhancing the longevity of connections.
