Molex Pre-Crimped Lead, 75mm

RS Stock No.:: 263-6800
Mfr. Part No.:: 219670-1121
Brand:: Molex

Save 28% when you buy 50 units

Subtotal (1 unit)*

£0.85

(exc. VAT)

£1.02

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

200 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£0.85
10 - 24	£0.75
25 - 49	£0.68
50 +	£0.61

*price indicative

RS Stock No.:: 263-6800
Mfr. Part No.:: 219670-1121
Brand:: Molex

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Series	219670
	Cable Length	75mm

	Select all
	Brand Molex
	Series 219670
	Cable Length 75mm

Datasheet - 219670-1121

COO (Country of Origin):: CN

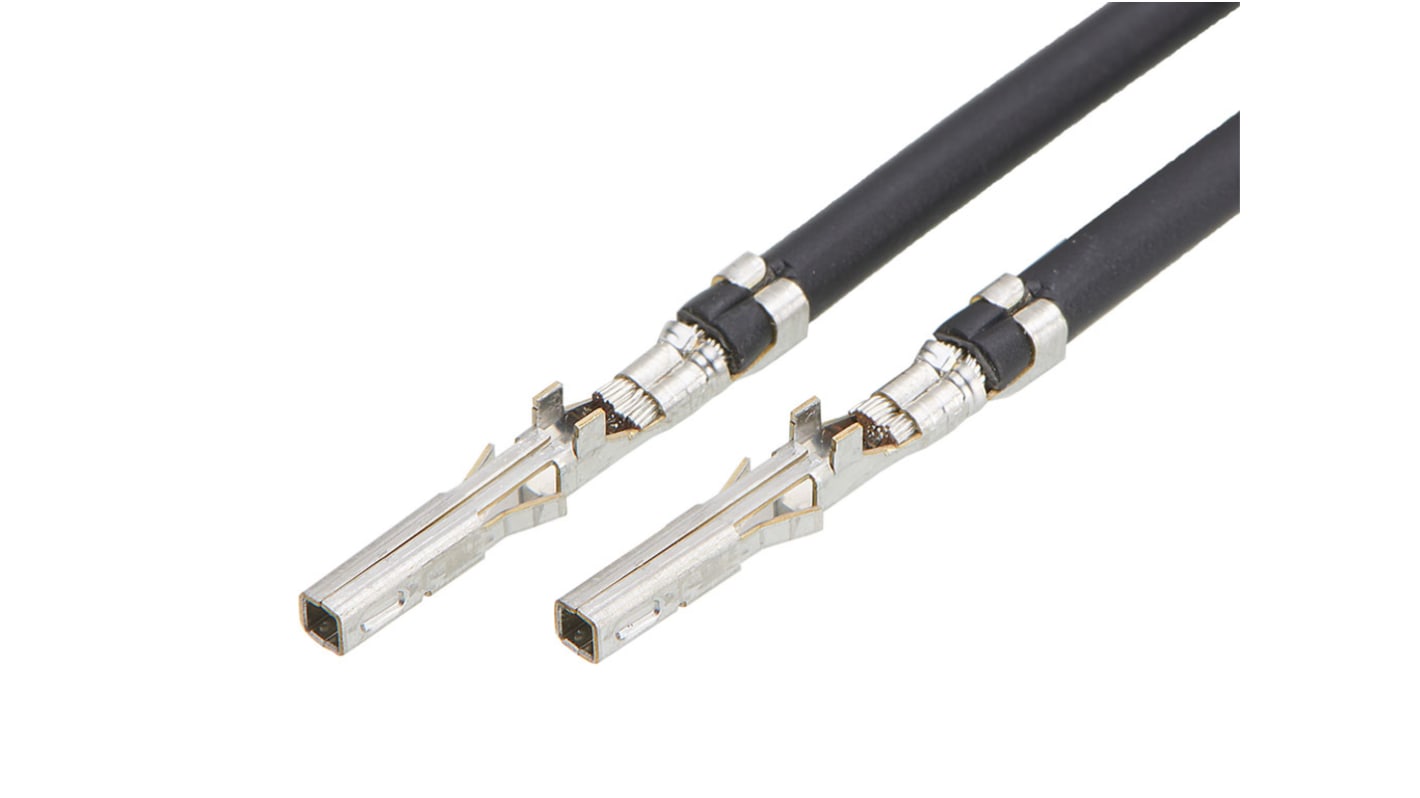

Molex 219670 Series Pre-Crimped Lead, 16AWG Wire size, 75mm Cable Length - 219670-1121

This pre-crimped lead is part of a reliable cable assembly suitable for various applications. Designed with a length of 75mm, it features Mini-Fit Sigma connectors on both ends and is suited for 16 AWG wire specifications. The crimp terminals are female, ensuring compatibility with multiple setups, while the cable's black sheath enhances visibility and aesthetics.

Features & Benefits

• Designed with dual female Mini-Fit connectors for versatility
• Utilises 16 AWG wire for efficient power transmission
• Black sheath colour aids in identification and organisation
• Capable of handling a current rating of 11.2A
• Tin plating ensures optimal conductivity and corrosion resistance
• Adheres to UL11028 wire specifications for safety standards

Applications

• Suitable for power in electrical systems
• Ideal for wire-to-board connections in automation projects
• Utilised in wire-to-wire configurations within mechanical devices
• Compatible with Mini-Fit TPA2 receptacle housings

What type of applications can benefit from this lead's specifications?

Numerous high-performance electrical systems can effectively utilise this lead, particularly those requiring durable power connections in automation and machinery.

How does the crimp terminal design enhance usability in installations?

The female crimp terminals facilitate easy connections across various setups, simplifying the installation process and minimising errors during assembly.

What advantages does the tin plating provide in practical use?

Tin plating significantly enhances electrical conductivity and offers protection against environmental factors, ensuring longevity and reliability in various conditions.
