Molex 207129 Hand Ratcheting Crimp Tool for Clik-Mate 1.25mm Connectors
- RS Stock No.:
- 904-8278
- Distrelec Article No.:
- 180-49-158
- Mfr. Part No.:
- 63819-4400
- Brand:
- Molex
Bulk discount available
Subtotal (1 unit)*
£441.91
(exc. VAT)
£530.29
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 3 unit(s) shipping from 03 October 2025
- Plus 10 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 2 | £441.91 |
3 + | £425.12 |
*price indicative
- RS Stock No.:
- 904-8278
- Distrelec Article No.:
- 180-49-158
- Mfr. Part No.:
- 63819-4400
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Wire Size AWG | 28 → 26AWG | |
Product Type | Crimp Tool | |
For Use With | Clik-Mate 1.25mm Connectors | |
Operation | Hand | |
Ratcheting | Yes | |
Series | 207129 | |
Select all | ||
---|---|---|
Brand Molex | ||
Wire Size AWG 28 → 26AWG | ||
Product Type Crimp Tool | ||
For Use With Clik-Mate 1.25mm Connectors | ||
Operation Hand | ||
Ratcheting Yes | ||
Series 207129 | ||
- COO (Country of Origin):
- SE
Molex CLIK-Mate Hand Crimping Tool for 1.25mm CLIK-Mate Connector 26-28 AWG Crimp Terminals
Hand crimping tool for crimping series 502381 and 501930 size 26-28 AWG CLIK-Mate crimp terminals that are used in the 1.25mm pitch range of CLIK-Mate crimp housings. This hand crimp tool is IPC/WHMA A-620 Class 2 compliant and features a precisely engineered terminal locator wire stop for holding the terminals in place and a ratchet mechanism which ensures a full crimping cycle is achieved. Ergonomically designed handles and the ability for use in both right and left handed applications make this CLIK-Mate hand crimp tool easy to handle and comfortable to use.
The dies and locator of this CLIK-Mate hand crimp tool can also be used in battery powered tools (Molex part numbers 63816-0200 and 63816-0250) with the use of a crimp head (Molex part number 63816-0800)
The dies and locator of this CLIK-Mate hand crimp tool can also be used in battery powered tools (Molex part numbers 63816-0200 and 63816-0250) with the use of a crimp head (Molex part number 63816-0800)
Molex Crimping Tool For Use With CLIK-Mate and IllumiMate Connector Crimp Terminals, 28 to 26AWG Wire Size - PremiumGrade Series - 63819-4400
Quickly connect wires to terminals on your PCBs using this crimping tool from Molex. To ensure reliable control and precision, its handle force can be adjusted by moving the setting wheel on the handle in either a clockwise or anti-clockwise direction. You can easily configure it for right-handed or left-handed use for versatility. Thanks to its ergonomic design, it's comfortable to use for long periods of time.
• Locator wire-stop locks terminals in the correct crimping position to ensure neat crimps
• Light weight of 317.1g for easy handling and portability
• Light weight of 317.1g for easy handling and portability
Applications
• Machine tools
• Cable and wire management
• Cable and wire management
What crimp terminals is this tool compatible with?

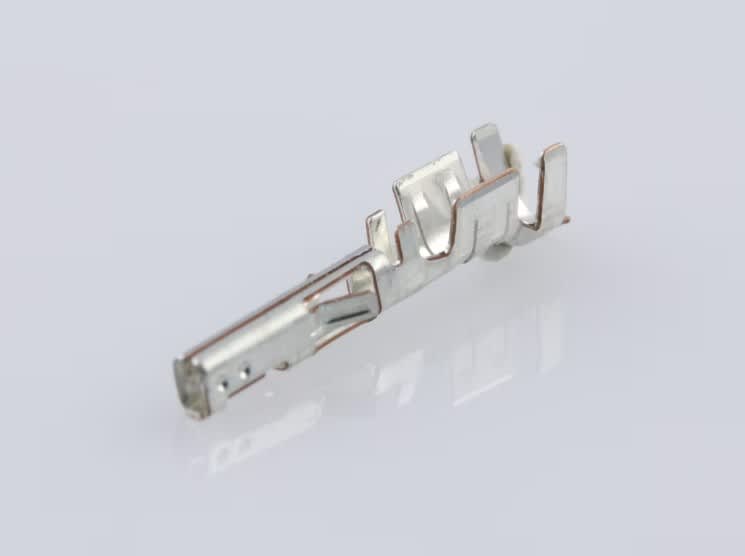

This tool is designed specifically for use with crimp terminals from the CLIK-Mate and IllumiMate series.
1.25mm Wire to Board CLIK-Mate™ SMT
The SMT CLIK-Mate™ series has a lock design that offers ease of use combined with superior mating retention.,With a unique tuning-fork terminal concept that provides low insertion force and secure mating contact.,The system also provides about 60% space saving compared with similar dual-lock 2.00mm pitch versions.,Designed for applications such as LCD TV's that require higher pin count connectors to carry more signal line in less space.
Robust positive lock provides greater mating assurance
Direct vacuum pick-and-place; no capton tape needed
Superior terminal polarization features prevent wrong terminal insertion
Single lock 1 - 7 way, dual lock 8 - 15 way
Direct vacuum pick-and-place; no capton tape needed
Superior terminal polarization features prevent wrong terminal insertion
Single lock 1 - 7 way, dual lock 8 - 15 way
