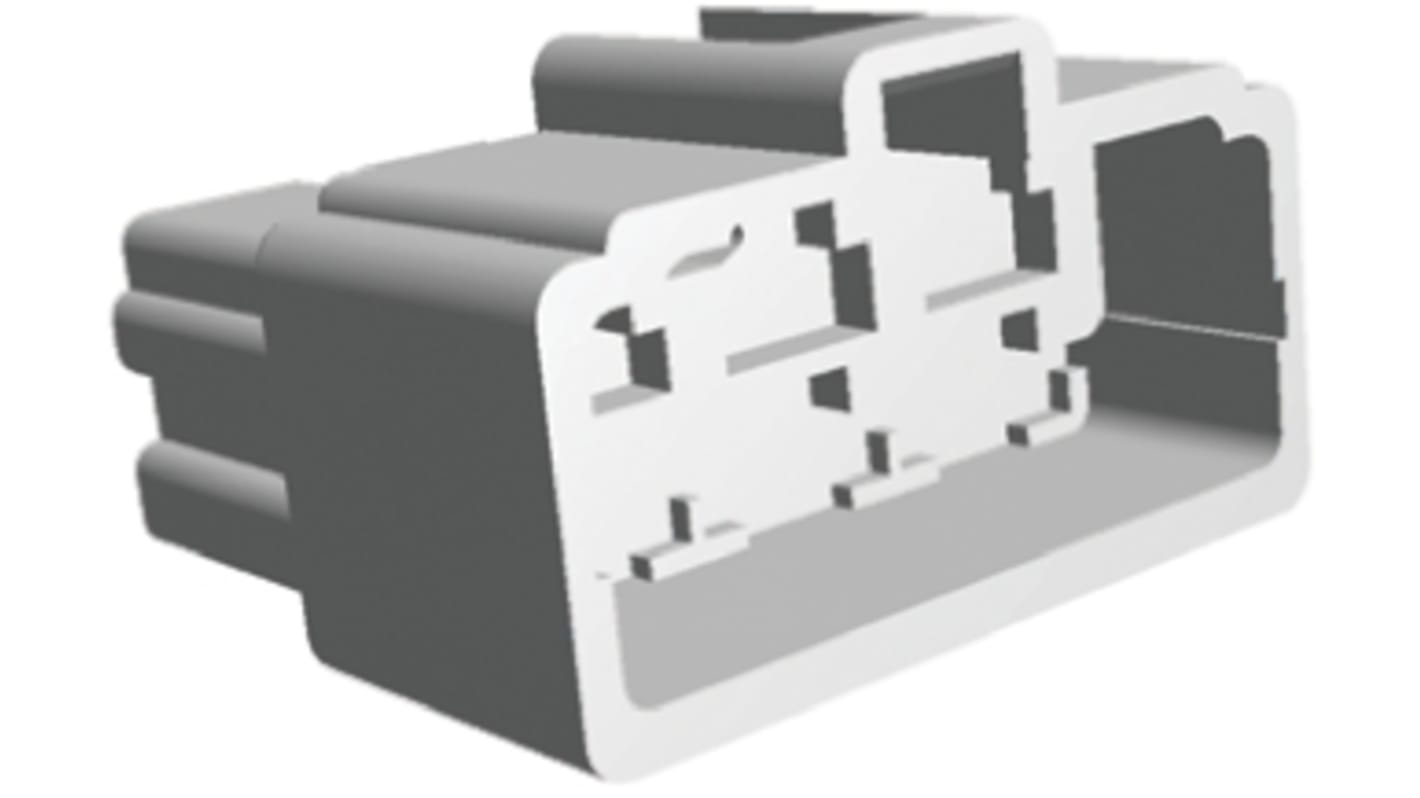

TE Connectivity, FASTON .250 6 Way Nylon Crimp Cover, Natural
- RS Stock No.:
- 164-3996
- Mfr. Part No.:
- 178025-1
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 164-3996
- Mfr. Part No.:
- 178025-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Body Material | Nylon | |
| Length | 31.5mm | |
| Colour | Natural | |
| Number of Contacts | 6 | |
| Series | FASTON .250 | |
| Priced to Clear | Yes | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Body Material Nylon | ||
Length 31.5mm | ||
Colour Natural | ||
Number of Contacts 6 | ||
Series FASTON .250 | ||
Priced to Clear Yes | ||
- COO (Country of Origin):
- JP
TE Connectivity FASTIN-FASTON Series 250 Receptacle and Tab Housings
A range FASTIN-FASTON 250 tab and receptacle housings for use with FASTIN-FASTON 250 wire terminals. The housings are made from nylon with a UL 94 V2 or UL 94 V0 flammability rating and are designed to provide electrical and mechanical protection. Polarization and locking latches prevent mismating and enable a secure mating connection. These FASTIN-FASTON 250 connector housings enable the attachment of up to eight separate circuits with a maximum of 20 leads.
Features and Benefits
• Provide electrical and mechanical protection
• Polarization to prevent mismating
• Nylon UL 94 V2 housings available
• Locking latches for a secure mating connection
• Designed for single and multiple connections of up to 8 circuits
• Polarization to prevent mismating
• Nylon UL 94 V2 housings available
• Locking latches for a secure mating connection
• Designed for single and multiple connections of up to 8 circuits
Applications
These FASTIN-FASTON 250 tab and receptacle housings are ideal for use as free hanging or panel mount harness connectors in a wide range of applications. Applications include automotive wiring applications and household appliances such as washers, dryers and electric ranges
