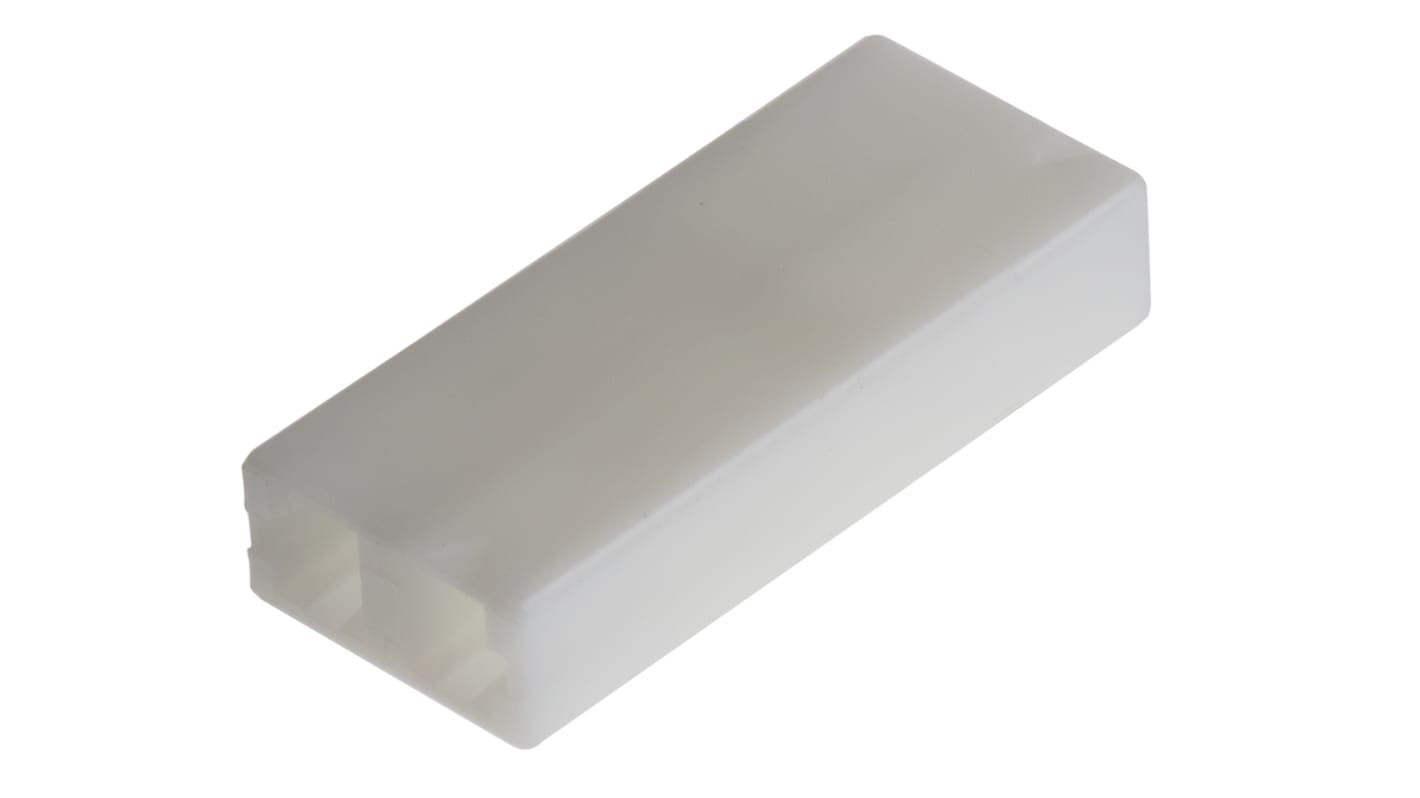

JST, BHS Crimp Terminal Housing
- RS Stock No.:
- 161-8150
- Mfr. Part No.:
- BHSMR-02VS
- Brand:
- JST
Bulk discount available
Subtotal (1 pack of 10 units)*
£3.72
(exc. VAT)
£4.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 510 unit(s) ready to ship
- Plus 20 unit(s) ready to ship from another location
- Plus 10 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.372 | £3.72 |
| 50 - 90 | £0.331 | £3.31 |
| 100 - 490 | £0.31 | £3.10 |
| 500 - 990 | £0.289 | £2.89 |
| 1000 + | £0.274 | £2.74 |
*price indicative
- RS Stock No.:
- 161-8150
- Mfr. Part No.:
- BHSMR-02VS
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 24AWG | |
| Series | BHS | |
Select all | ||
|---|---|---|
Brand JST | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 24AWG | ||
Series BHS | ||
JST Crimp Receptacle
The JST BHS series 2 positions insulated female crimp receptacle connector has a voltage rating of 1400VAC/DC and a current rating of 1A AC/DC. It is designed for connecting liquid crystal display backlight lamps to their starters. This is made from phosphor bronze with nylon66 insulating material.
Features and Benefits
• Adopt wide range for socket contact
• Compact and applicable to high voltage
• Contact resistance: 20mohm after environmental testing
• Insulation resistance: 1000Mohm
• Operating temperature ranges between -40°C and 85°C
• Pitch size is 3.5mm
• Tin contact plating
• Wire size is 24AWG to 28AWG
• Wire-to-wire version connectors
• Withstanding voltage: 3800VAC/minute
• Compact and applicable to high voltage
• Contact resistance: 20mohm after environmental testing
• Insulation resistance: 1000Mohm
• Operating temperature ranges between -40°C and 85°C
• Pitch size is 3.5mm
• Tin contact plating
• Wire size is 24AWG to 28AWG
• Wire-to-wire version connectors
• Withstanding voltage: 3800VAC/minute
Applications
• Automotive industries
• Electric ranges, washers and dryers
• Electrical equipment and home appliances
• Machinery
• Electric ranges, washers and dryers
• Electrical equipment and home appliances
• Machinery
Certifications
