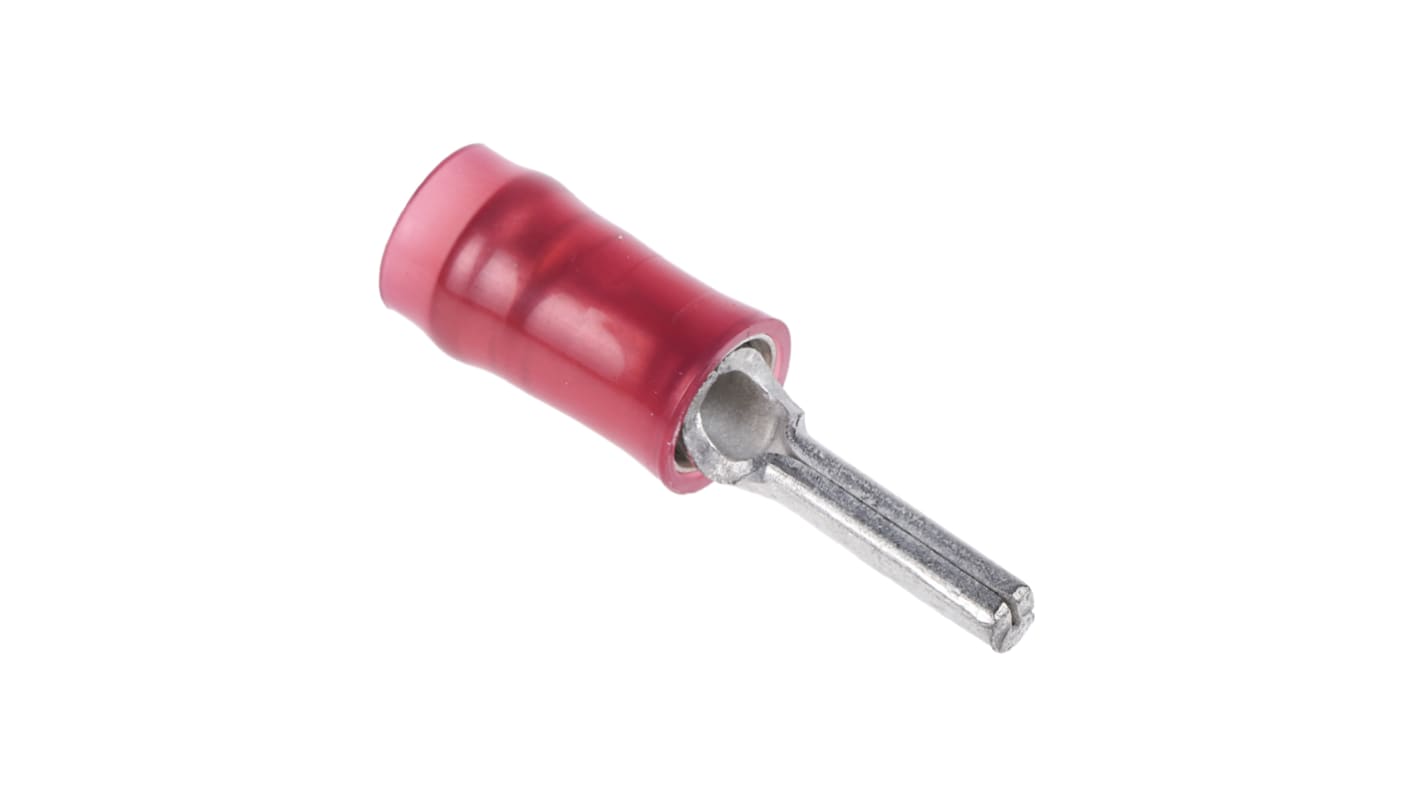

TE Connectivity, PIDG Insulated, Tin Crimp Pin Connector, 0.25mm² to 1.6mm², 22AWG to 16AWG, 1.8mm Pin Diameter, 6.7mm
- RS Stock No.:
- 528-9258
- Mfr. Part No.:
- 165142
- Brand:
- TE Connectivity
Save 41% when you buy 10000 units
Subtotal (1 pack of 100 units)*
£44.80
(exc. VAT)
£53.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15,200 unit(s) ready to ship
- Plus 2,800 unit(s) ready to ship from another location
- Plus 52,400 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
100 - 400 | £0.448 | £44.80 |
500 - 2400 | £0.39 | £39.00 |
2500 - 4900 | £0.309 | £30.90 |
5000 - 9900 | £0.278 | £27.80 |
10000 + | £0.264 | £26.40 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Bag of 100)
£0.064
(exc. VAT)
£0.077
(inc. VAT)
- RS Stock No.:
- 528-9258
- Mfr. Part No.:
- 165142
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Series | PIDG | |
Insulation | Insulated | |
Insulation Material | Nylon | |
Minimum Wire Size mm² | 0.25mm² | |
Maximum Wire Size mm² | 1.6mm² | |
Overall Length | 20.2mm | |
Minimum Wire Size AWG | 22AWG | |
Shrouded/Unshrouded | Unshrouded | |
Maximum Wire Size AWG | 16AWG | |
Pin Diameter | 1.8mm | |
Pin Length | 6.7mm | |
Colour | Grey | |
Contact Plating | Tin | |
Contact Material | Copper | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Series PIDG | ||
Insulation Insulated | ||
Insulation Material Nylon | ||
Minimum Wire Size mm² 0.25mm² | ||
Maximum Wire Size mm² 1.6mm² | ||
Overall Length 20.2mm | ||
Minimum Wire Size AWG 22AWG | ||
Shrouded/Unshrouded Unshrouded | ||
Maximum Wire Size AWG 16AWG | ||
Pin Diameter 1.8mm | ||
Pin Length 6.7mm | ||
Colour Grey | ||
Contact Plating Tin | ||
Contact Material Copper | ||
TE Connectivity PIDG Wire Pin Crimp Terminals
PIDG (Pre-Insulated Diamond Grip) wire pin crimp terminals designed for uniform reliability in the most difficult circuit environments. These PIDG wire crimp pin terminals consist of a precision-formed high conductivity copper body and barrel. Inside the barrel are serrations which provide maximum contact and tensile strength after crimping. The wire barrel is surrounded with copper sleeve which provides improved wire insulation support and prevents fraying. An outer colour coded nylon sleeve aids wire size identification and a funnelled entry prevents turned back wire strands allowing fast wire insertion during high-speed production. The construction of these PIDG terminals and the use of specialised tool dies allows a uniform and reliable crimp to be produced. Available with various wire and pin sizes these PIDG wire pin crimp terminals offer a versatile solution to a wide range of wiring applications
Features and Benefits
High conductivity copper body
Copper sleeve for improved wire insulation support
Serrations in wire barrel for maximum contact and tensile strength
Colour coded sleeves for easy wire size and tooling identification
Funnelled wire entry for easy wire insertion
Design enables a reliable and uniform crimp
Copper sleeve for improved wire insulation support
Serrations in wire barrel for maximum contact and tensile strength
Colour coded sleeves for easy wire size and tooling identification
Funnelled wire entry for easy wire insertion
Design enables a reliable and uniform crimp
Applications
These PIDG wire terminals are suitable for use in a wide range of applications with many terminals meeting or exceeding the requirements of MIL-T-7928, Type II, Class 1 and 2. Applications include instruments/control, lighting, power supplies, panel boxes, transportation, lifting equipment, motors, aerospace and appliances.
TE Connectivity PIDG Terminals
