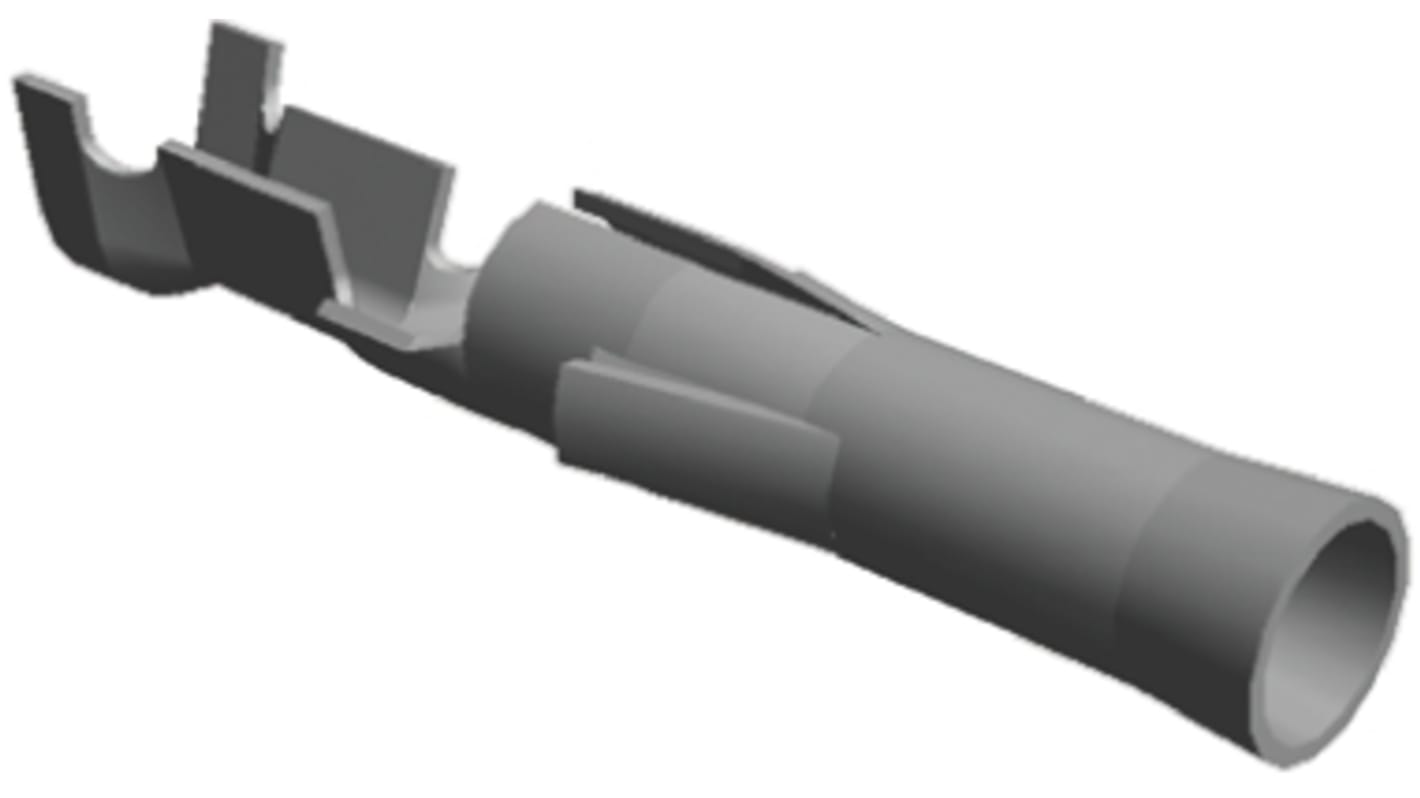

TE Connectivity .093 Commercial Series Female Crimp Terminal, 24AWG Min, 18AWG Max
- RS Stock No.:
- 719-0311
- Mfr. Part No.:
- 350417-1
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 pack of 25 units)*
£2.00
(exc. VAT)
£2.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 175 unit(s) ready to ship
- Plus 425 unit(s) shipping from 21 November 2025
- Plus 5,000 unit(s) shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 600 | £0.08 | £2.00 |
| 625 - 2475 | £0.056 | £1.40 |
| 2500 - 12475 | £0.052 | £1.30 |
| 12500 - 24975 | £0.05 | £1.25 |
| 25000 + | £0.048 | £1.20 |
*price indicative
- RS Stock No.:
- 719-0311
- Mfr. Part No.:
- 350417-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Gender | Female | |
| For Use With | .093 Commercial Connector Housing | |
| Series | .093 Commercial | |
| Minimum Wire Size mm² | 0.3mm² | |
| Maximum Wire Size mm² | 0.8mm² | |
| Termination Method | Crimp | |
| Contact Plating | Tin | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 18AWG | |
| Contact Material | Brass | |
| Maximum Contact Resistance | 4mΩ | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +105°C | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Gender Female | ||
For Use With .093 Commercial Connector Housing | ||
Series .093 Commercial | ||
Minimum Wire Size mm² 0.3mm² | ||
Maximum Wire Size mm² 0.8mm² | ||
Termination Method Crimp | ||
Contact Plating Tin | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 18AWG | ||
Contact Material Brass | ||
Maximum Contact Resistance 4mΩ | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +105°C | ||
2.36mm Diameter Pin and Socket Contacts
A range of 2.36mm Diameter Pin and Socket Contacts for use in Commercial .093 [2.36] P&S Housings.
TE Connectivity 2.36mm Diameter Commercial Pin and Socket Connectors
